Product function

To meet the needs of users:

● Capacitive and inductive reactive compensation

● Low-time (3, 5, 7, 9, 11) small capacity (rated capacity 50%) harmonic compensation

Product model and meaning

Technical parameters

Working principle

HKK-ASVG advanced static var generator can detect the load current in real time through the external current transformer (CT), extract the reactive content and harmonic component in the load current through the internal DSP computing, finally calculate the instruction value to control the PWM signal generator to send the control signal to the internal IGBT, and generate the reactive compensation current and harmonic compensation current through the inverter to meet the requirements, so as to achieve the purpose of reactive compensation and harmonic control.

1. HKK-ASVG compensation for capacitive var and harmonics

2. HKKA-SVG compensation for inductive var and harmonics

Technical parameters

Comparison between capacitor technology and full control power quality product technology

Structure and dimension

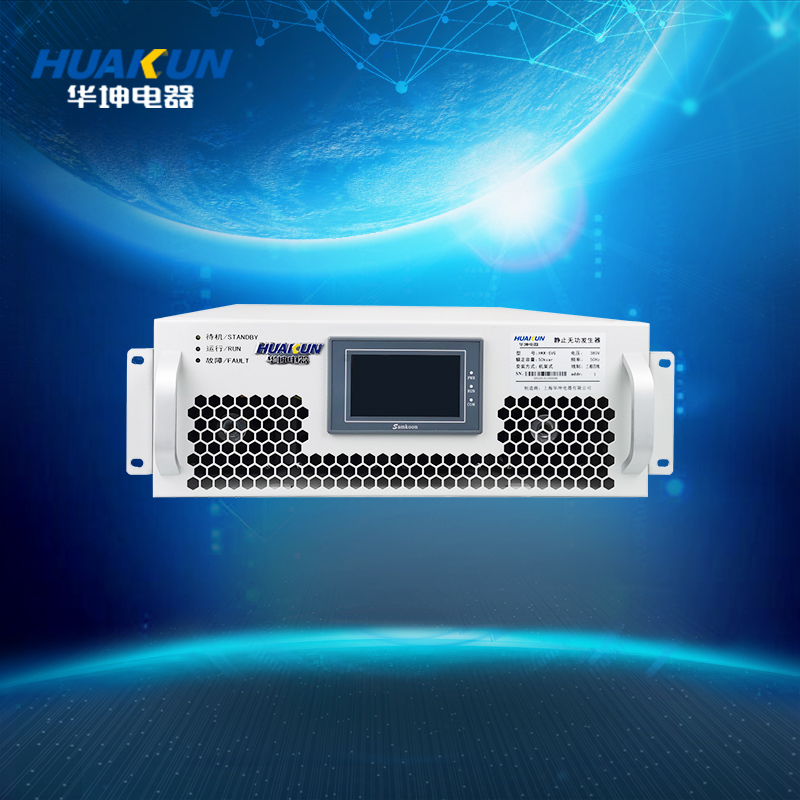

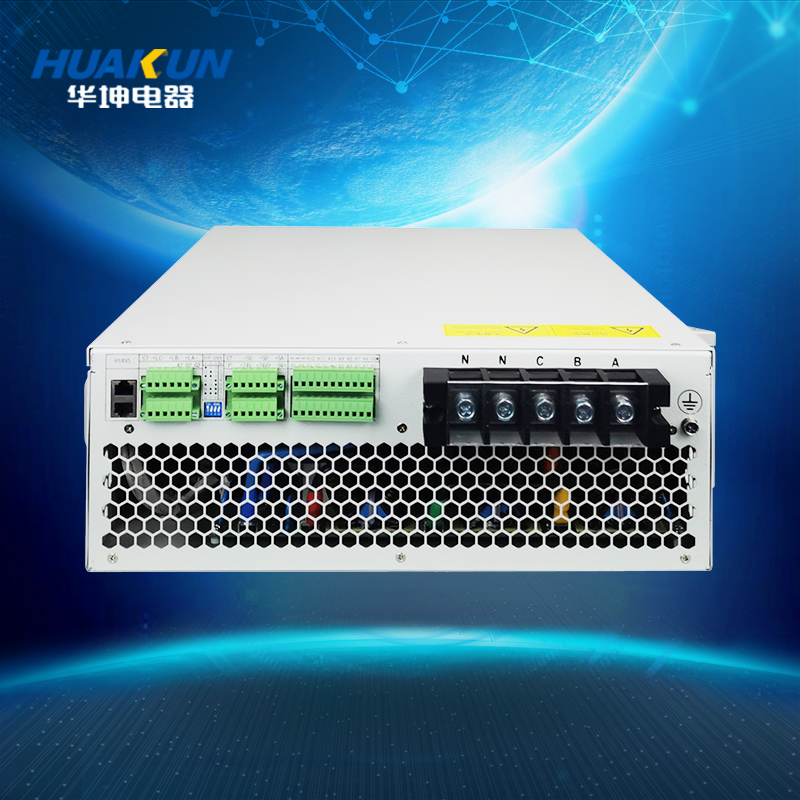

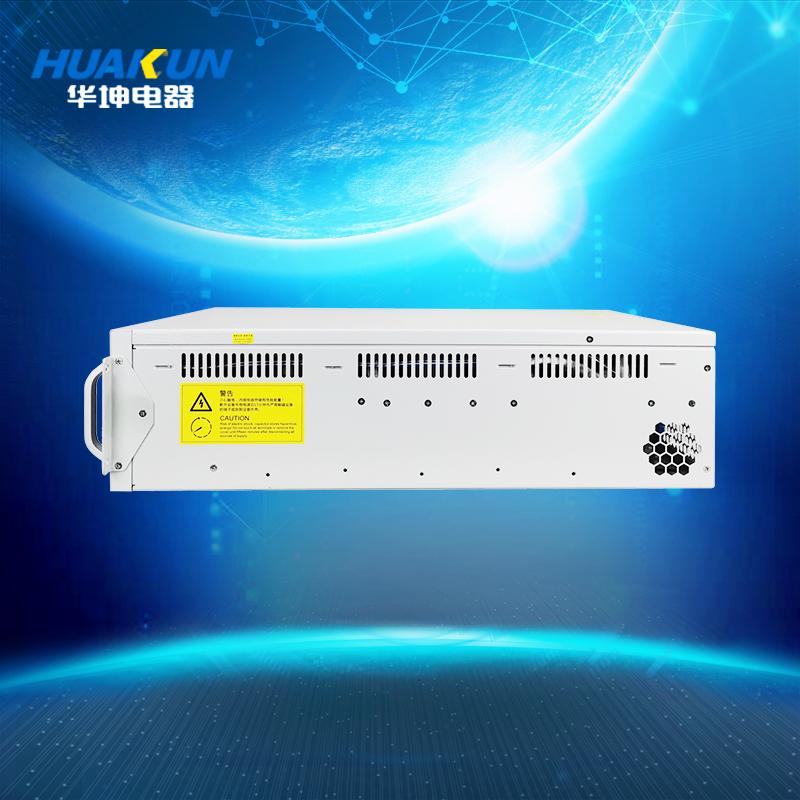

1. Dimension of HKK-ASVG rack product

21. Dimension of HKK-ASVG wall-mounted product
