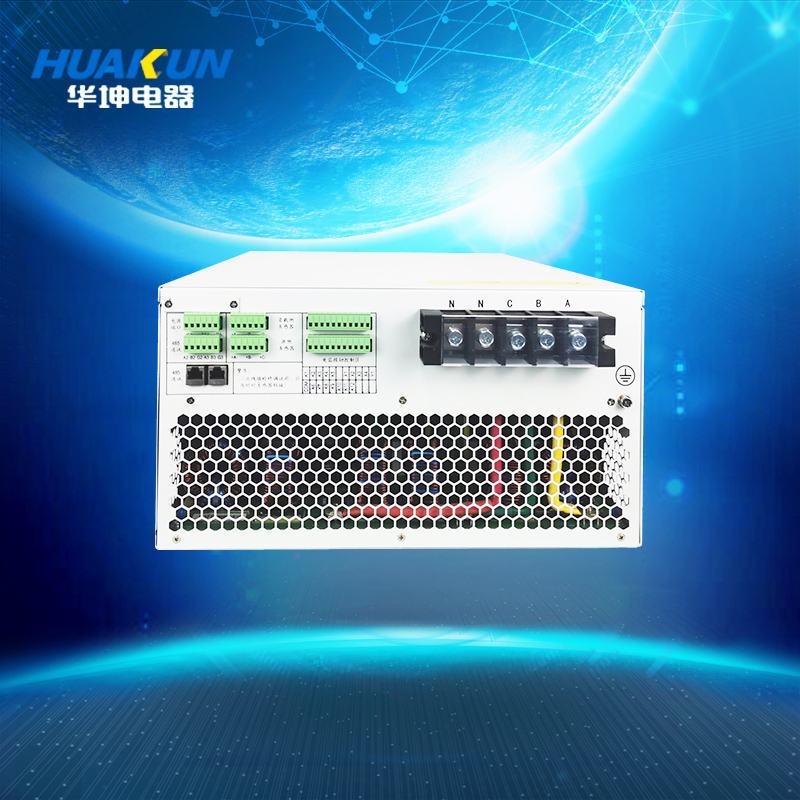

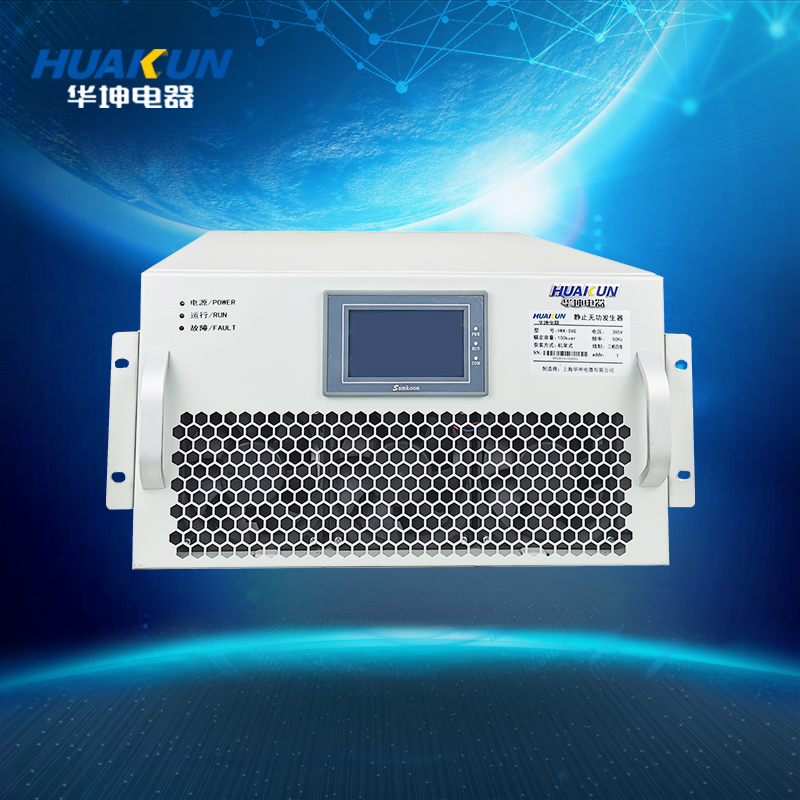

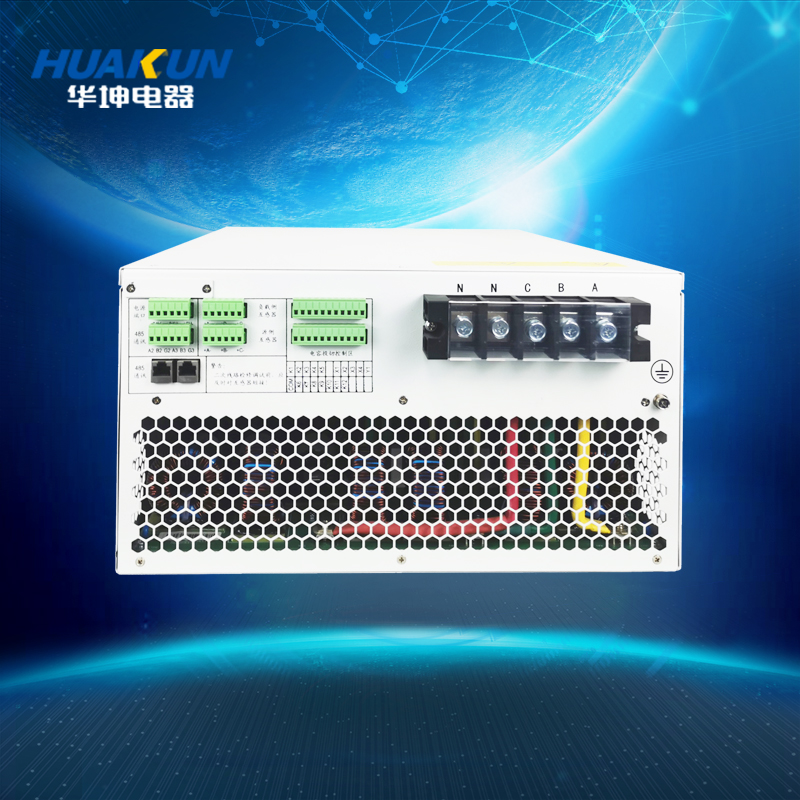

Product function

● Improved power factor PF ≥ 0.99

● Compensated inductive or capacitive reactive

● Unaffected by harmonics

Product model and meaning

Technical parameters

Working principle

HKK-SVG static var generator is a bridge converter composed of fully controlled power electronic devices for dynamic reactive compensation. The basic principle is that the load current is detected in real time by the external current transformer (CT), and the reactive content of load current is extracted by the internal DSP computing. Finally, the instruction value is calculated to control the PWM signal generator to send the control signal to the internal IGBT, so that the inverter can produce the reactive compensation current to meet the requirement, and finally realize the dynamic reactive compensation.

1. HKK-SVG compensates capacitive var (vector graph)

2.HKK-SVG compensation for inductive var (vector graph)

3. HKK-SVG schematic diagram

4. The compensation effect before and after the use of HKK-SVG is shown in the picture

a. Voltage and current before the analog device is put into operation

b、模揪装置发出的无功电流

c、模拟装置投人后的补偿效果

The essential improvement of the var compensation effect of HKK-SVG

Operation mode

1. No-load operation mode

2. Capacitive operation mode

3. Inductive operation mode

HKK-SVG characteristics

Compensation effect of HKK-SVG

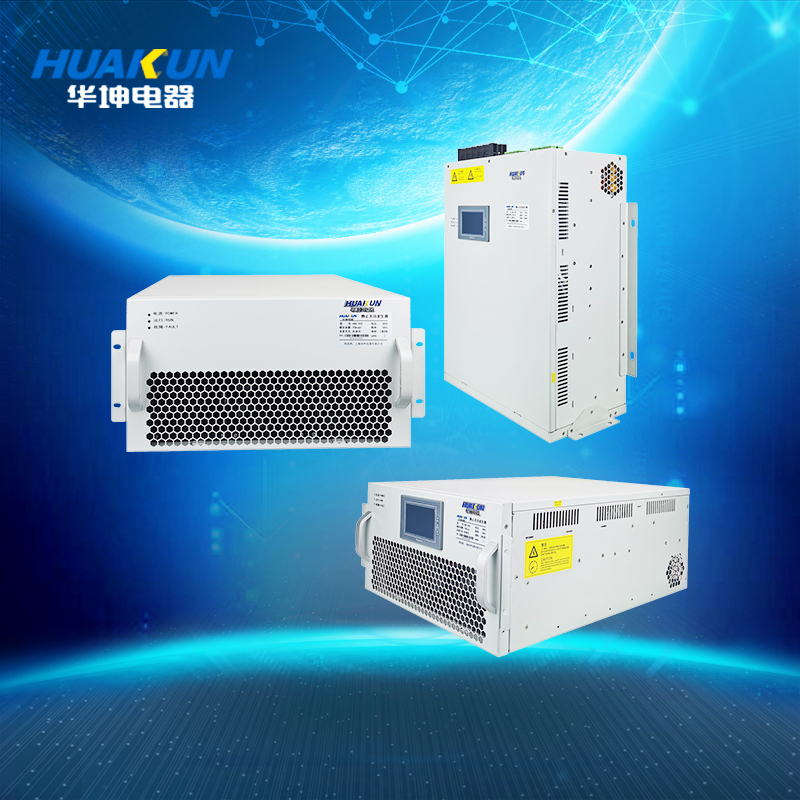

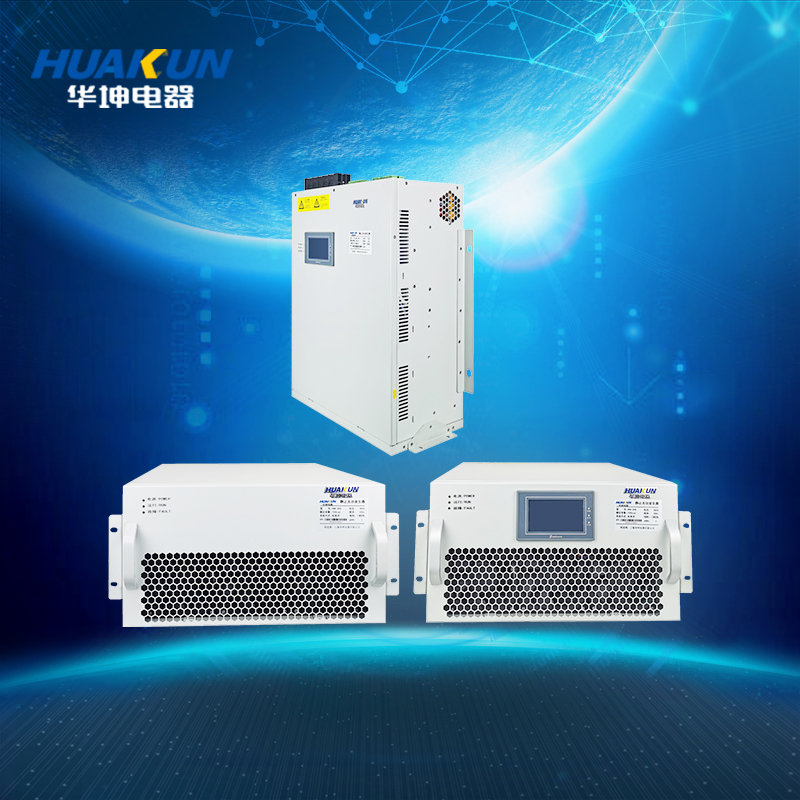

Structure and dimension

1. Dimension of HKK-SVG rack product

21. Dimension of HKK-SVG wall-mounted product
