Summary

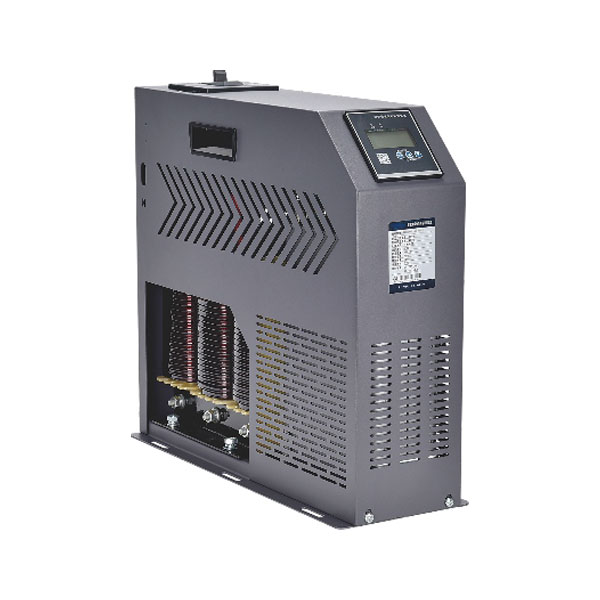

The ADDZN series intelligent integrated power capacitor compensation device (hereinafter referred to as intelligent capacitor) is composed of power parameter detection technology, reactive power compensation control technology, display technology, power capacitor switching control technology, intelligent capacitor networking technology, fault monitoring and protection technology, as well as power capacitors and circuit breakers. A single intelligent capacitor can form a complete compensation system. No need to set any control parameters to start up and use normally, simple and flexible to use. Mainly used for static reactive power compensation in 0.4KV power systems, improving the power factor of the power grid, reducing power grid losses, increasing the output capacity of transformers, improving voltage output quality, and avoiding penalties for power regulation fees.

Functional characteristics

☆ Adopting low-power design, more energy-efficient than traditional compensation structures

☆ Quickly complete automatic networking and shorten the waiting time for on-site installation and debugging

☆ Automatically identify the same name end of the current signal to prevent abnormal operation of the current line from being reversed

☆ Zero crossing switching technology, with no surge current input and no arc pulling during cutting

☆ The average power factor within the delay time is used as a reference physical quantity to avoid frequent switching

☆ Both self-control and controlled modes are optional. In self-control mode, automatic optimization compensation can be achieved without the need for an external controller

☆ Multiple protection functions such as overvoltage, undervoltage, undercurrent, phase loss, harmonics, and over temperature are provided to improve the stability of the system

Model definition

Technical Parameter

Product dimensions and installation dimensions

Product dimensions and installation dimensions

Product wiring diagram

(1) Fully complementary intelligent capacitor and measurement and control instrument wiring (controlled mode)

C1 complements the first circuit switching indicator light, and C2 complements the second circuit switching indicator light, without the need for a current signal adapter.

Note: Suppressing harmonic signal lights only requires connection to C1

(2) Hybrid compensation intelligent capacitor and measurement and control instrument wiring (controlled mode)

C1 complements the first circuit indicator light, C2 complements the second circuit indicator light; Ca compensation A-phase indicator light, Cb compensation B-phase indicator light, and Cc compensation C-phase indicator light.

(3)(3)Fully complementary intelligent capacitor and secondary current transformer (self-control mode)

C1 complements the first circuit switching indicator light, and C2 complements the second circuit switching indicator light, without the need for an intelligent capacitor monitor.

(4)Hybrid compensation intelligent capacitor and secondary current transformer (self-control mode)

C1 and C2 are the switching indicator lights for the first and second circuits of the co compensation system, respectively; Ca, Cb, and Cc are indicator lights for phase A, phase B, and phase C respectively.

Communication

Ordering Notice

When placing an order, the user must provide parameters such as the rated voltage, rated capacity, co compensation type, and sub compensation type of the product

Provide information on the characteristics or main loads of the usage site as much as possible
