Cable fusion straight-through connector
Short Description:
Overview of cable fusion straight-through connectors:The seamless docking straight-through connector (DRJ) for cables achieves cable docking without altering the original structure of the cable, based on the cable production process. The conductive core of the fusion straight-through connector (DRJ) …
Product details
Overview of cable fusion straight-through connectors:
The seamless docking straight-through connector (DRJ) for cables achieves cable docking without altering the original structure of the cable, based on the cable production process. The conductive core of the fusion straight-through connector (DRJ) employs exothermic welding, featuring low resistance, high strength, and no aging. The internal and external shielding are repaired using the same materials as the cable, ensuring optimal electric field distribution. The insulation layer is seamlessly repaired with cable insulation material, leaving no gaps and ensuring a lifespan equivalent to that of the cable. DRJ revolutionizes the history of cable connections, which have traditionally relied on passive protection through ordinary cable accessories. DRJ is a new section of cable regenerated based on the original structure and production process of the cable. The product is widely used in various key industries such as power grids, rail transit, airports, and petrochemicals.

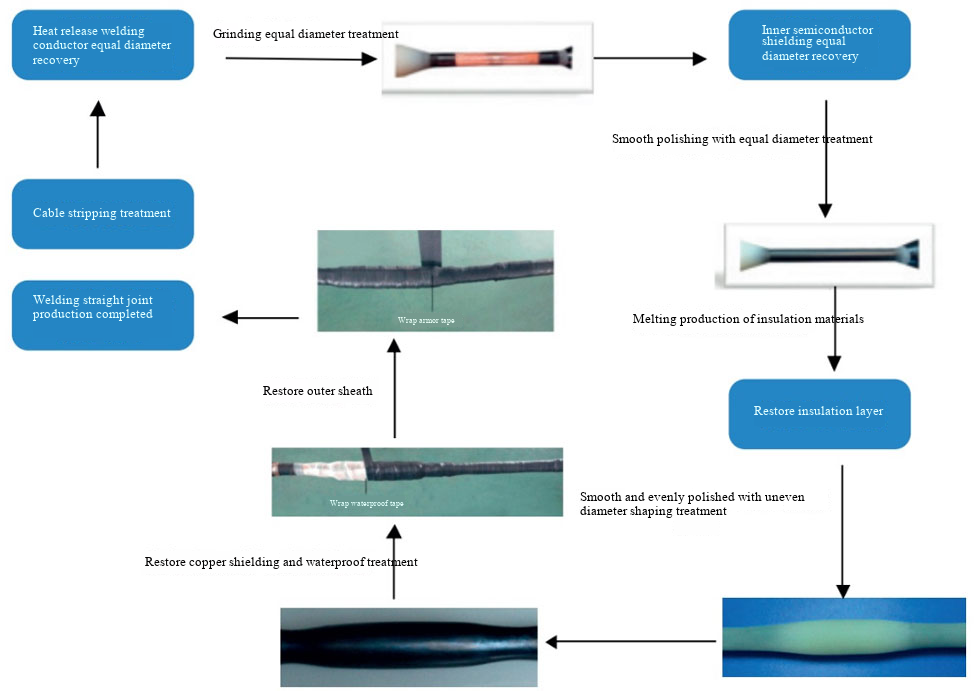

Installation instructions:
8.7/15kV Seamless cable splicing and intermediate joint, gapless repair technology:

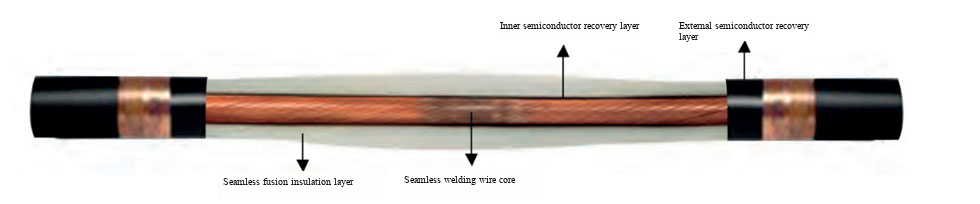

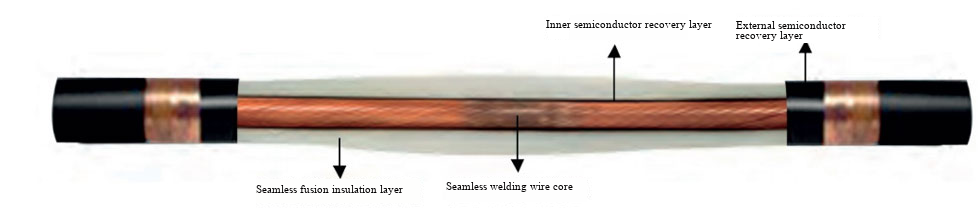

Product structure:

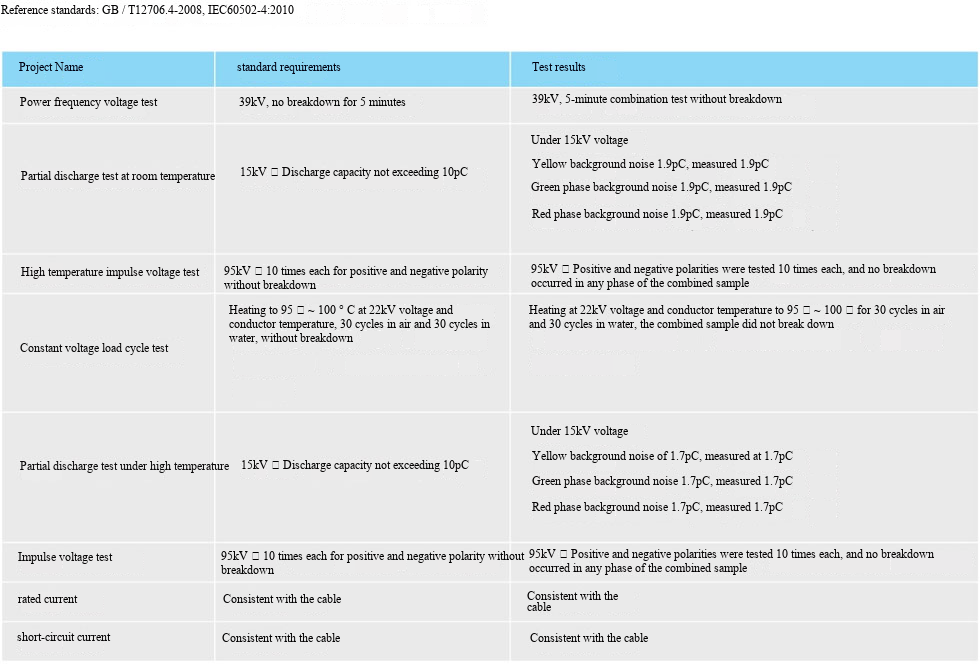

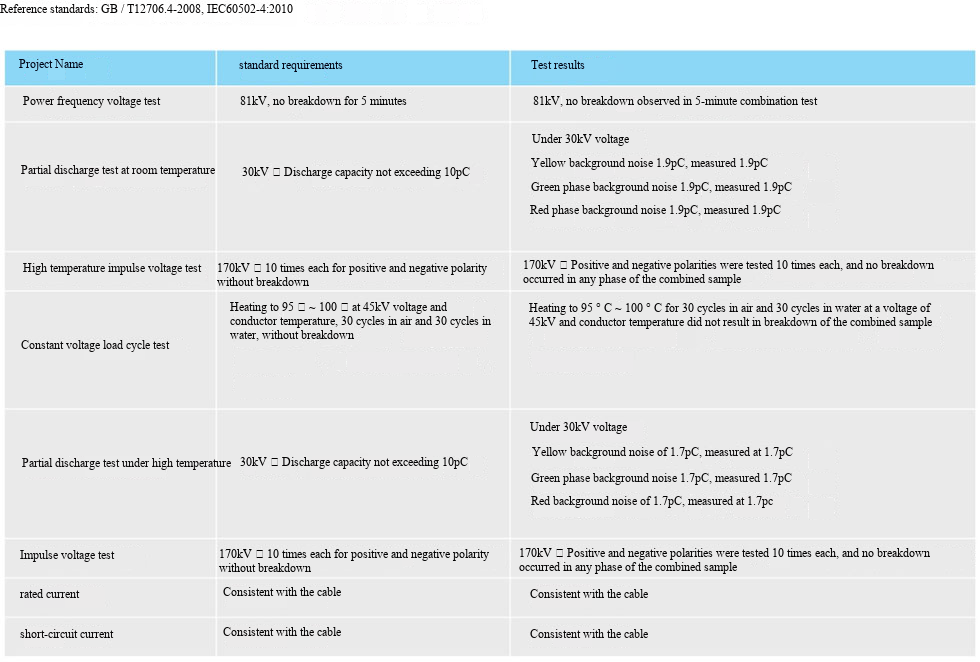

Technical Specifications:

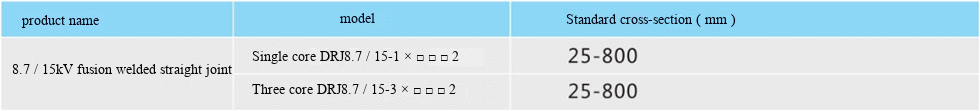

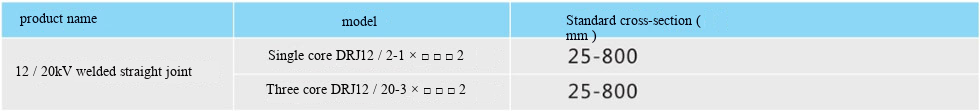

Product Model：
Seamless butt welding intermediate joint and gapless repair technology for 12/20kV cables:

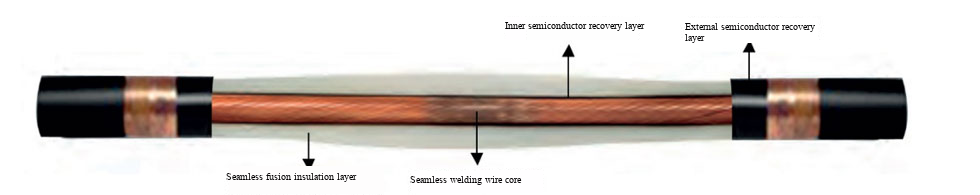

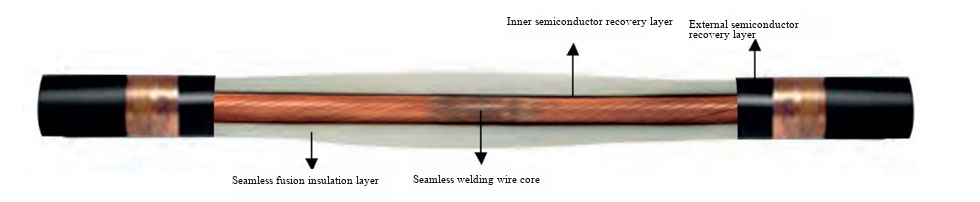

product structure：

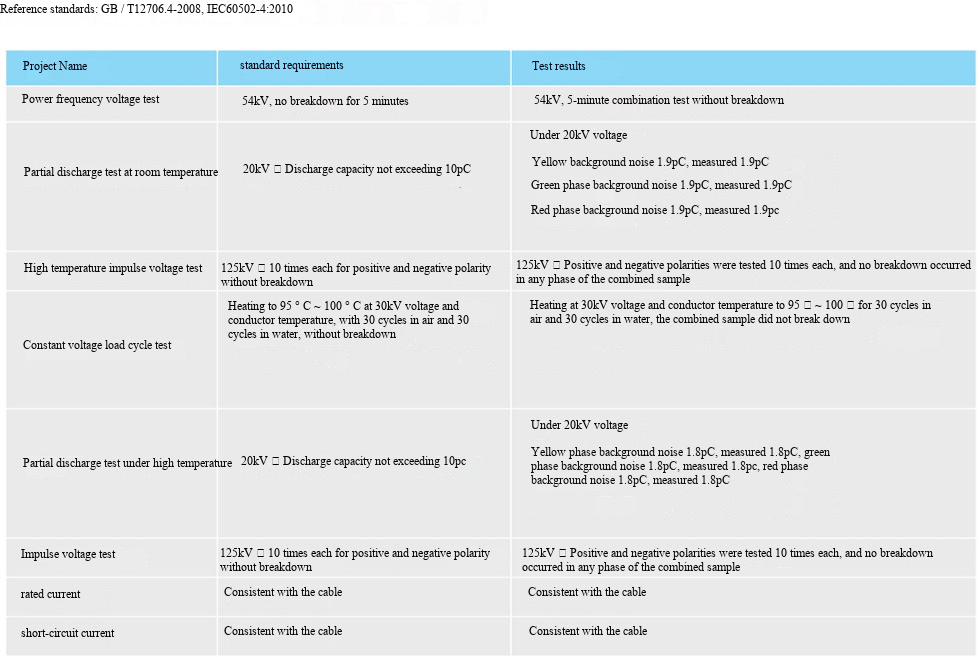

Technical Specifications：
Product Model：
Seamless butt welding intermediate joint and gapless repair technology for 18/30kV cables:
product structure：
Technical Specifications：

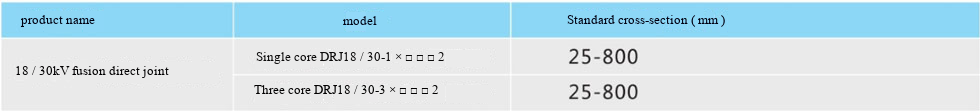

Product Model：
Seamless butt welding intermediate joint and gapless repair technology for 26/35kV cables:
Product structure:

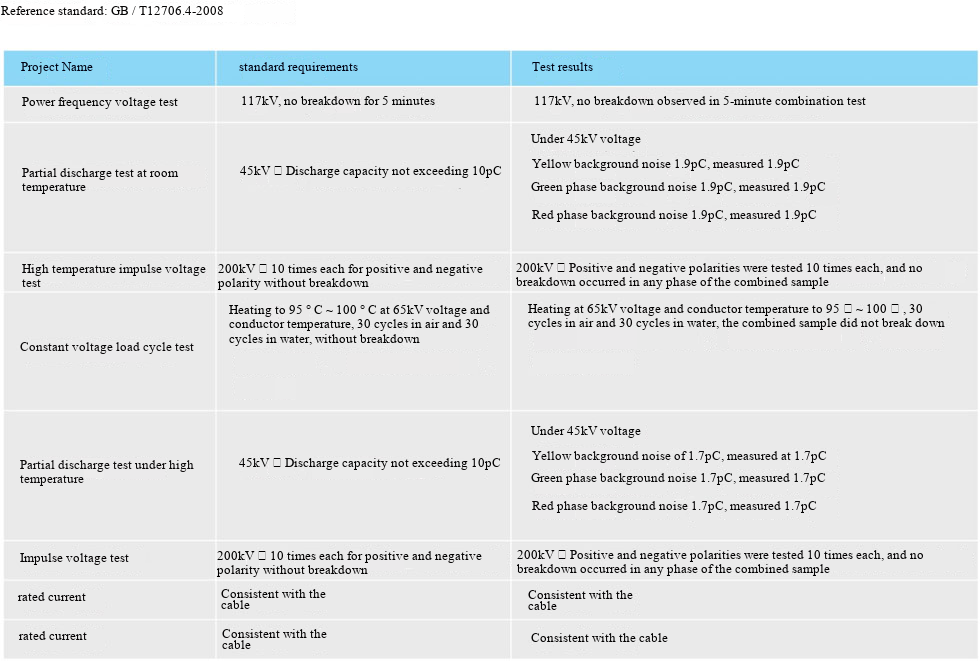

Technical Specifications：

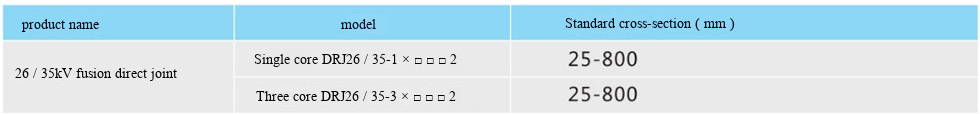

Product Model：

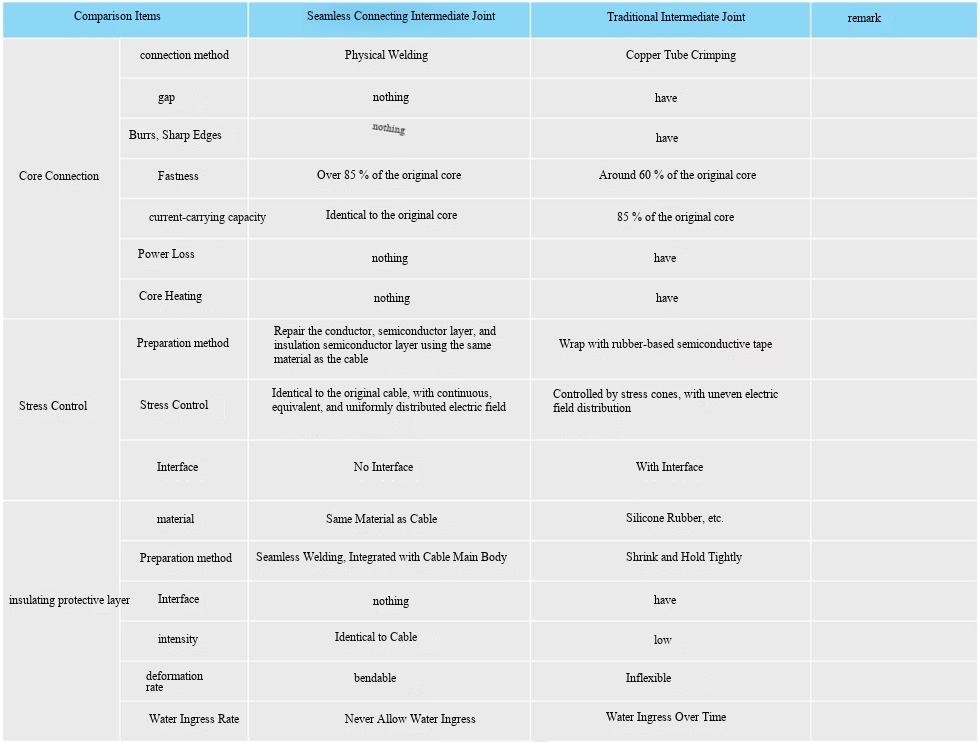

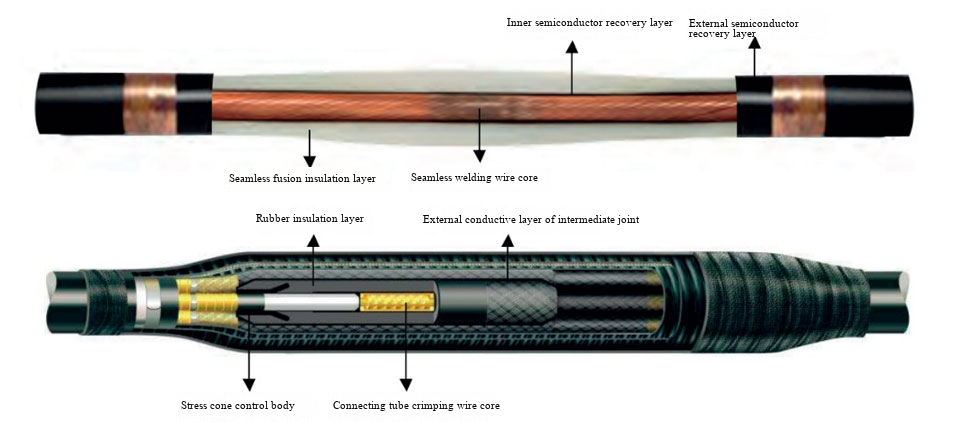

Comparison between seamless butt welding intermediate connectors and traditional intermediate connectors：

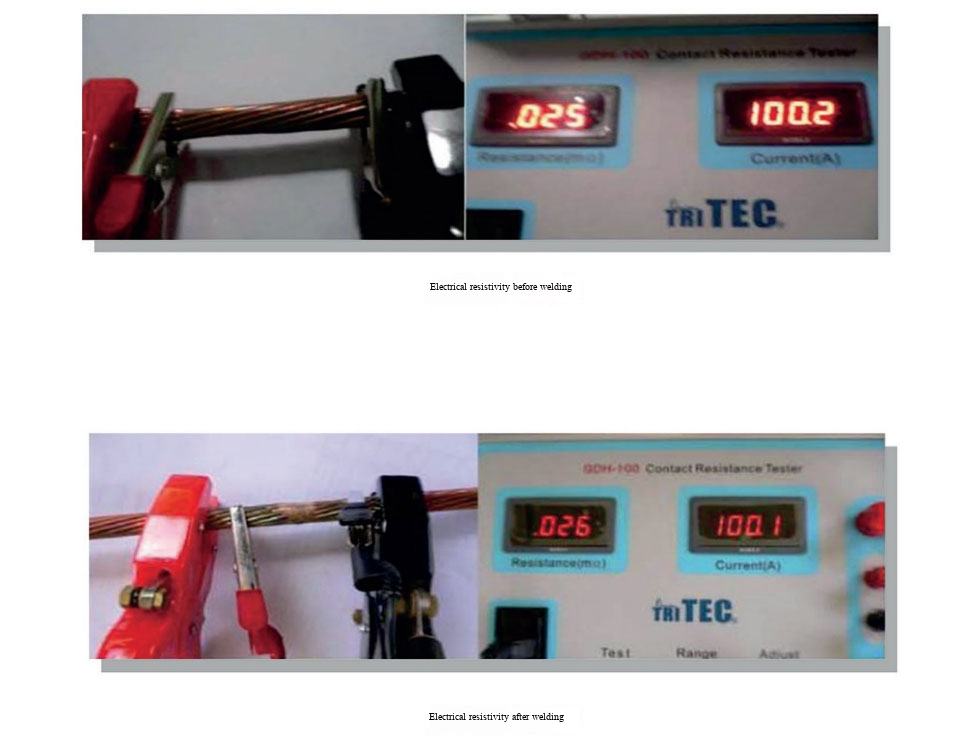

Change in resistivity of a conductor before and after welding：

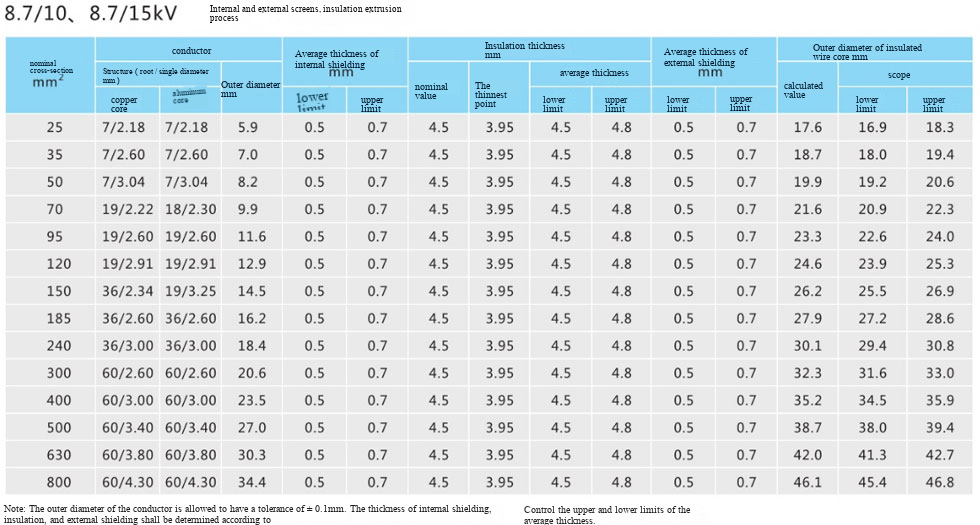

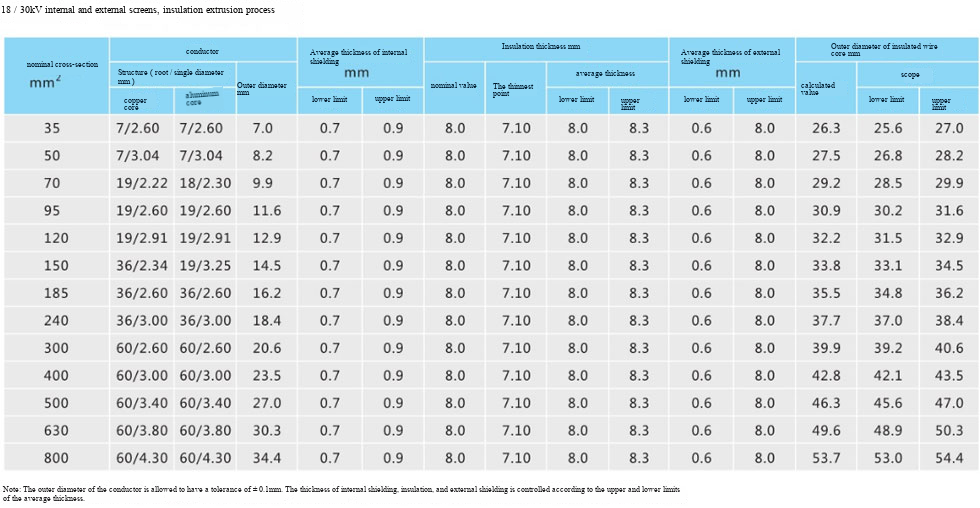

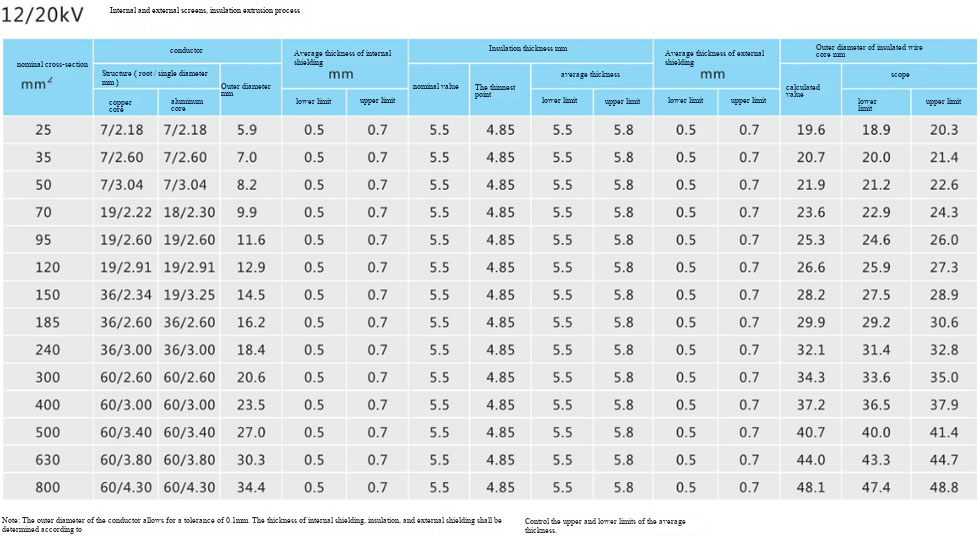

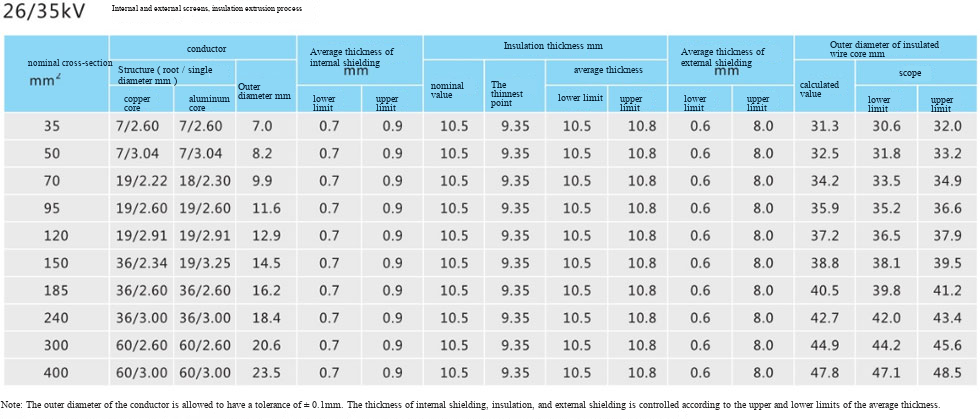

Cable size parameters：
