Rigid dry-type plug-in outdoor terminal
Short Description:
Product Introduction: The CN-YJZWGG4 series rigid dry-type outdoor terminals produced by our company are suitable for connecting indoor and outdoor high-voltage overhead lines and cables, with a pollution prevention level of IV. They are mainly composed of terminal studs, stress cones, rigid sleev …
Product details
Product Introduction:
The CN-YJZWGG4 series rigid dry-type outdoor terminals produced by our company are suitable for connecting indoor and outdoor high-voltage overhead lines and cables, with a pollution prevention level of IV. They are mainly composed of terminal studs, stress cones, rigid sleeves, and tailpipes. The stress cones are molded using liquid silicone rubber and feature a spring cone support positioning and installation structure, providing long-term stable clamping force and uniform electric field capability. The rigid sleeves are made of epoxy fiberglass insulation tubes coated with silicone rubber large and small sheds, forming a conical shape overall. They exhibit excellent anti-pollution flashover, weather resistance, anti-tracking, anti-corrosion, and water repellent properties. The sleeves do not require filling with SF6 gas or insulating oil, making them safer and more reliable. With compact structure, light weight, and small size, they combine the lightweight and explosion-proof performance of full silicone dry terminals with the rigid support function of porcelain and composite sleeves, and also offer the installation convenience of GIS terminals. This effectively ensures long-term safe operation of the product. The product adopts a multi-seal structure to effectively prevent moisture infiltration. The sealing rings are all made of NBR or silicone rubber materials. The fasteners are all made of stainless steel, providing excellent waterproof sealing performance.
This terminal is the only outdoor terminal that combines the advantages of explosion-proof, rigid, dry type, and oil-free gas, making it the choice of many power users.
The cable cross-sections for each voltage level are as follows:
48/66kV～56/77kV 150~1400mm²；
64/110kV～76/138kV 240~2500mm²；
127/220kV～290/500kV 400~3000mm²；
Main structural features:
The rigid dry-type outdoor terminal not only inherits the advantages of composite bushing outdoor terminals, but also boasts the following excellent performance.
●Oil-free: Adopting a dry structure, it is oil-free and gas-free.
● Easy installation: Since the sleeve comes with a built-in high-voltage shielding tube, most of the cable insulation does not require fine treatment during cable handling, greatly reducing the labor intensity for installation personnel.

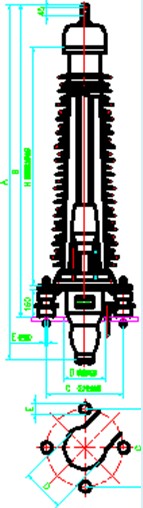

Structural Dimension Table：
SIZE | MODEL | 66kV | 77kV | 110kV | 138kV | 220kV | 500kV |
H | CN-YJZWGG4 | 980 | 1500 | 1650 | 2450 | 5800 | |
A | CN-YJZWGG4 | 1700 | 2200 | 2350 | 3300 | 6750 | |
B | CN-YJZWGG4 | 1410 | 1935 | 2085 | 3100 | 6500 | |
C | CN-YJZWGG4 | Φ430 | Φ450 | Φ650 | Φ800 | ||
D | CN-YJZWGG4 | Φ200 | Φ260 | Φ350 | Φ500 | ||
E | CN-YJZWGG4 | 4-Φ25 EQS | 4-Φ25 EQS | 6-Φ32 EQS | |||
