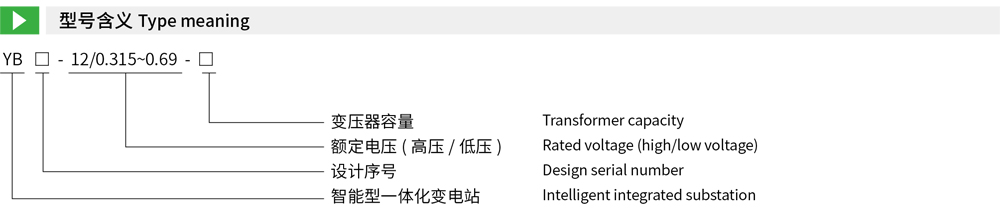

YB - □ -12/0.315~0.69 (PV) Photovoltaic Special Box Transformer
Short Description:
Widely used in a series of energy power generation systems such as new energy centralized, group series, distributed, etc.
Product details
Product overview
Widely used in a series of energy power generation systems such as new energy centralized, group series, distributed, etc.
Functions and characteristics
◇ High-voltage switching equipment, transformer and low-voltage switching equipment are integrated into a whole with strong integrity.
◇ High and low voltage protection is perfect, operation is safe and reliable, and maintenance is simple.
◇ Less land occupation, less investment, short production cycle and convenient movement;
◇ Flexible and diverse wiring schemes;
◇ Unique structure: unique honeycomb structure double-layer (aluminum-coated zinc plate) shell is firm, heat-insulated, heat-dissipating and ventilated, beautiful, with high protection level, and the shell material is stainless steel, aluminum alloy, Cold rolled plate and color steel plate are optional.
◇ Various types: universal, villa, compact, etc.
◇ The box transformer has an integrated measurement and control device, which can realize short circuit and single-phase ground fault, and the reliability detection of fault collection. It has the "four remote" function and is convenient for automatic upgrading of distribution network.
Normal operating environment
◇ Altitude does not exceed 1000m;
◇ Ambient temperature: -25℃ ~+40℃ ;
◇ Relative humidity: daily average value is not more than 95%, monthly average value is not more than 90%;
◇ Installation site: no fire, explosion danger, conductive dust, chemical corrosive gas and violent vibration. If the above conditions are exceeded, the user can negotiate with our company
Implementation standard
◇ This product meets the following standards:
◇ GB/T17467-1998《High Voltage/Low Voltage Pre-installed Substation》
◇ DL/T537-93《Technical Conditions for Ordering 6-35kV Box Substation》
