SVG Static Var Generator
Short Description:
Static Var Generator (SVG) detects the load current in real time through external current transformer (CT), analyzes the reactive power content of the load current through internal DSP calculation, and then controls PWM signal generator to send control signals to internal IGBT to enable inverter to generate reactive power compensation current meeting the requirements according to the set value, finally realizing the purpose of dynamic reactive power compensation.
Product details

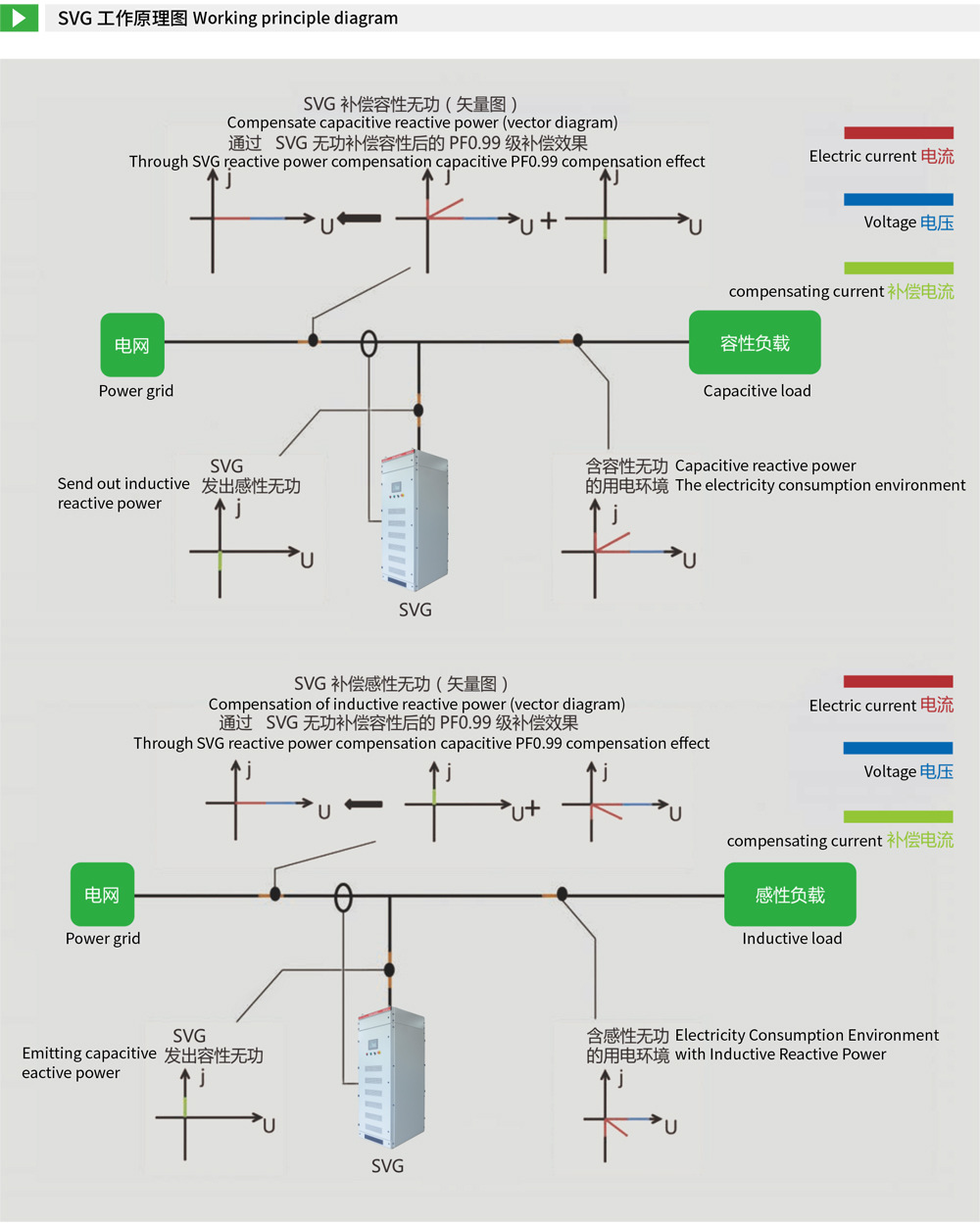

SVG Working principle
Static Var Generator (SVG) detects the load current in real time through external current transformer (CT), analyzes the reactive power content of the load current through internal DSP calculation, and then controls PWM signal generator to send control signals to internal IGBT to enable inverter to generate reactive power compensation current meeting the requirements according to the set value, finally realizing the purpose of dynamic reactive power compensation.
