ZLM6-12 Fully Enclosed, Fully Insulated, Inflatable Ring Network Switchgear
Short Description:

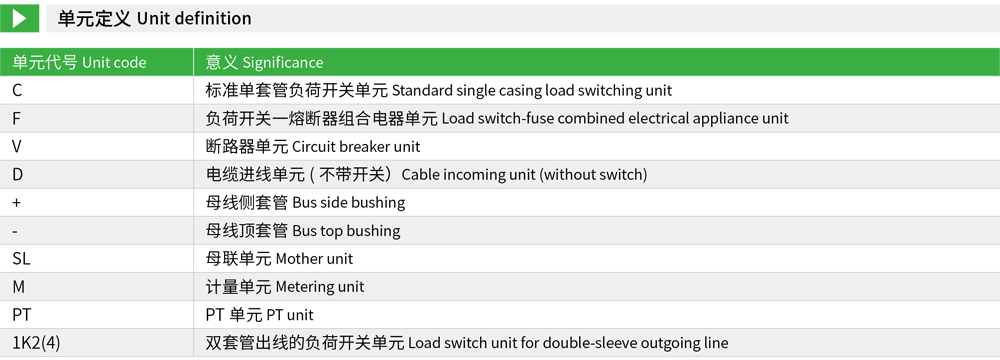

ZLM6-12 series ring network switch cabinet is SF6 gas insulated metal common box type closed switch equipment, which can be composed of modules of load switch unit, load switch fuse combined electrical unit, vacuum circuit breaker unit and bus incoming line unit.
Product details
Product overview
ZLM6-12 series ring network switch cabinet is SF6 gas insulated metal common box type closed switch equipment, which can be composed of modules of load switch unit, load switch fuse combined electrical unit, vacuum circuit breaker unit and bus incoming line unit. Adopting a series of advanced technologies and materials, it has excellent electrical and mechanical properties, little influence from environment and weather, small volume, easy installation, convenient operation, no maintenance, and flexible combination mode. Clear and intuitive design ensures simple and direct operation. Feeder connection capacity is large, suitable for various connection systems.
Product features
Safe operation:
We can provide special security for users through the following security measures:
Integrated three-station load switch
The circuit breaker adopts load switch instead of isolating switch, which is safer and more reliable. The fully closed design on the primary side provides protection against accidental contact. The mechanical interlocking live display meeting the five prevention requirements can provide reliable live indication of incoming and outgoing lines. The fully closed design seals all 10kV switches and live bus bodies in a gas box welded by 3mm stainleZL steel plates. Equipped with silicone rubber cable plug, the cable head is fully insulated and sealed, thus the spring energy storage operating mechanism is not affected by dust, humidity, small animals and other external environments. The manual or electric operation panel simulation diagram can provide the switch position indicating cabinet made of galvanized sheet, and the surface is electrostatically sprayed, thus enhancing the
corrosion resistance. The preZLure gauge monitors the safe preZLure range of SF6 gas in the cabinet.
Economy:
Maintenance free
Highly reliable
Flexible plan:
A variety of wire feeding modes can be used to realize left, right, upper or forward wires.
There are many combinations, and any combination can be realized between each unit.
Using insulated bus bar can realize front and back cabinet or left and right cabinet
Flexible design scheme
Widely used:
Feeder and outlet lines have large capacity and small floor space, and are suitable for various application requirements.
