European-style cable distribution box
Short Description:
Overview:The European-style cable distribution box is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features include bidirectional door opening, utilizing wall bushings as connecting busbars, and it boasts advantages such as compact length, …
Product details
Overview:

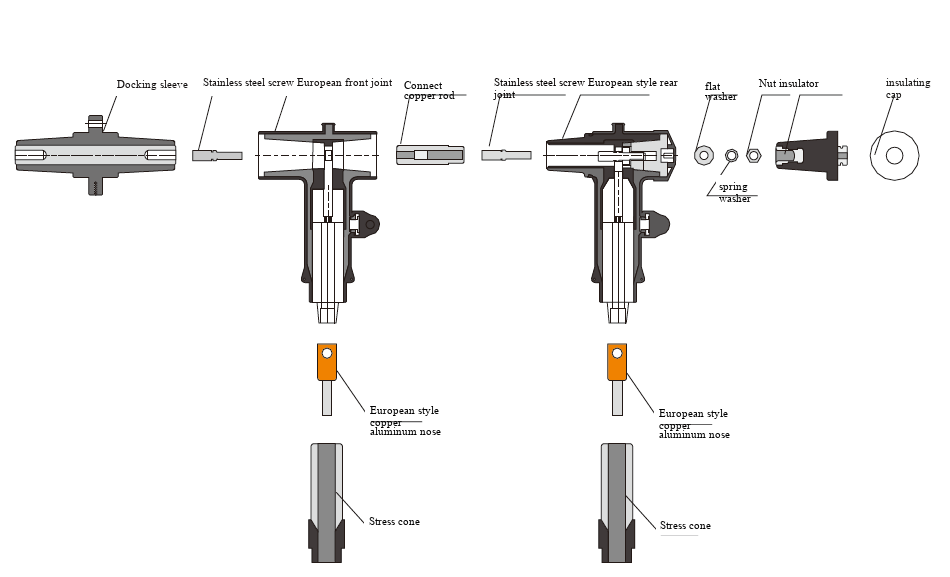

The European-style cable distribution box is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features include bidirectional door opening, utilizing wall bushings as connecting busbars, and it boasts advantages such as compact length, clear cable arrangement, and eliminating the need for large-span crossings for three-core cables. The cable connectors used comply with the DIN47636 standard. Generally, bolt-fixed cable connectors with a rated current of 630A are employed.

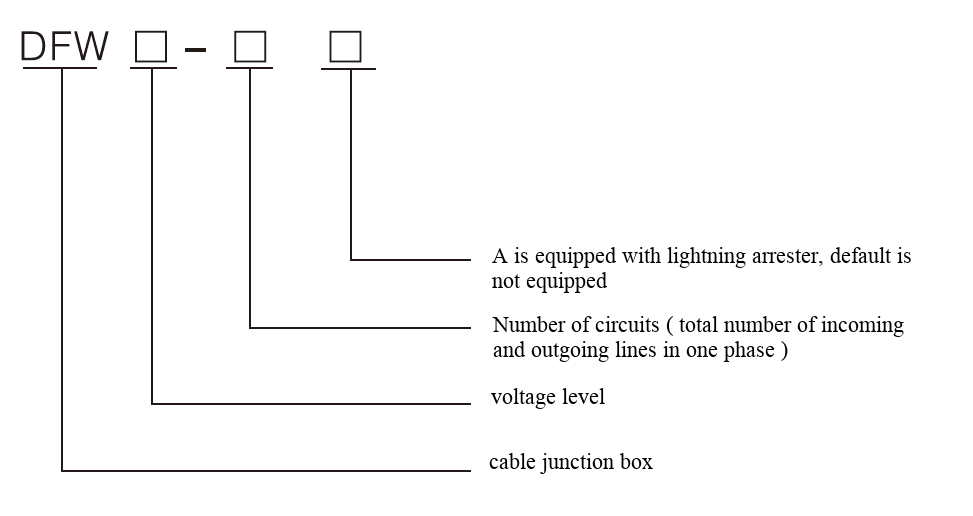

Model and its meaning:
◆ Environmental temperature: Air temperature: +40℃, Air temperature: -30℃
◆ Wind speed: equivalent to 34m/s (not greater than 700Pa)
◆ Humidity: The average daily relative humidity is not greater than 95%, and the average monthly relative humidity is not greater than 95%
◆ Shockproof: Horizontal acceleration not exceeding 0.4 m/s2, vertical acceleration not exceeding 0.15 m/s2, and installation site inclination not exceeding 3 degrees.
◆ Installation environment: The surrounding air should be free from significant pollution such as corrosive or flammable gases, water vapor, etc., and the installation location should be free from severe vibration.
Note: If ordering this product exceeds the conditions specified above, please consult with our company.

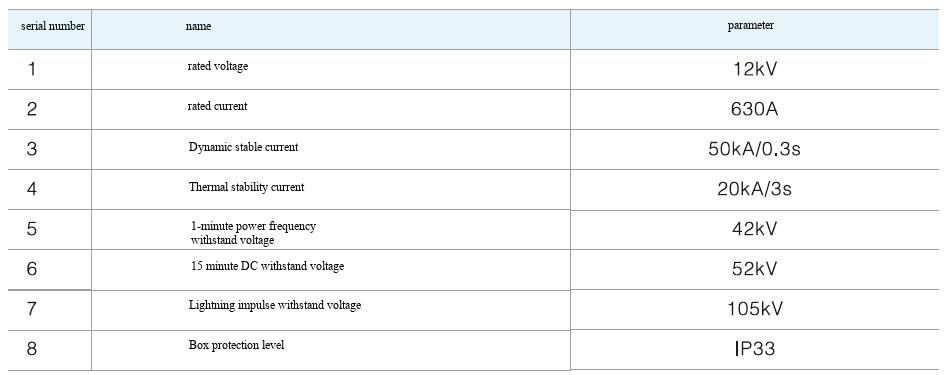

Main technical parameters:
