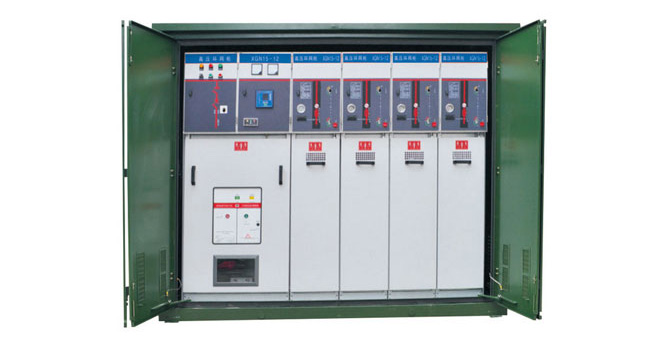

DFWK cable distribution box
Short Description:
Overview It is widely used in urban power grid renovation, residential areas, commercial centers, and other densely populated areas with a high demand for electricity.Model meaningFunctional featuresUsing prefabricated live touchable silicone rubber cable heads, which are fully sealed, metal-insula …
Product details
Overview
It is widely used in urban power grid renovation, residential areas, commercial centers, and other densely populated areas with a high demand for electricity.

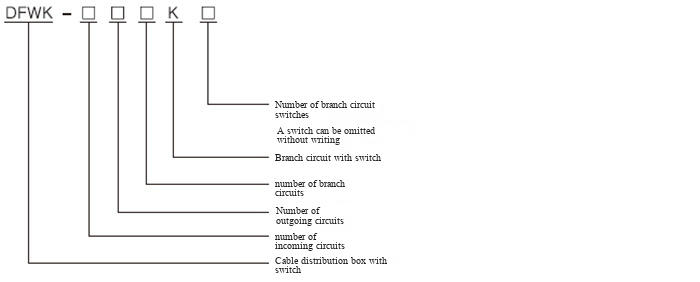

Model meaning
Functional features
Using prefabricated live touchable silicone rubber cable heads, which are fully sealed, metal-insulated, and maintenance-free, reliably ensures personal safety:
Compact structure, compact and beautiful appearance, stainless steel double-layer box, long service life:
Without affecting the operation of the main grid, regional power outages can be scheduled for maintenance, thus reducing the scope of the outage;
It can be equipped with one or multiple SF6 load switches. The wiring method is flexible and diverse, with up to 8 outgoing circuits for branches;
Optional lightning arresters, short-circuit fault indicators, current-limiting fuses, etc., are available to meet various user requirements.

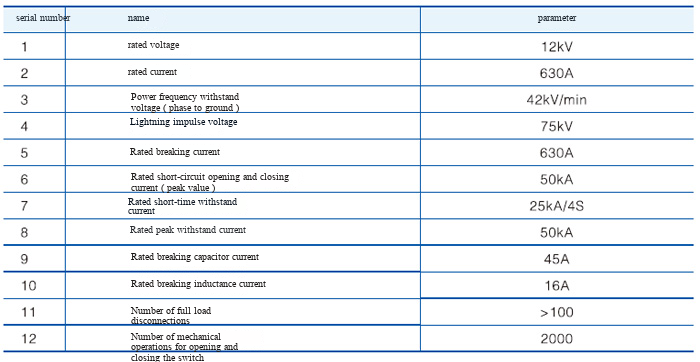

Main technical parameters

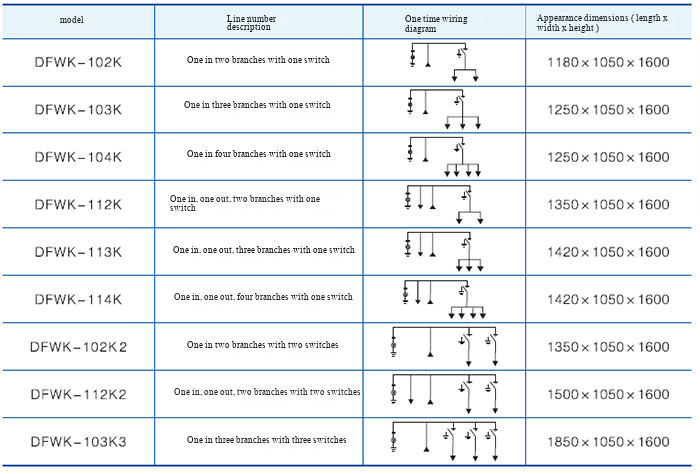

Typical wiring scheme
Schematic diagram of appearance
