XGN15-12 series AC metal ring main switchgear
Short Description:
Overview: The XGN15-12 series AC metal ring main switchgear is a compact, scalable, metal enclosed ring main switchgear suitable for distribution automation. It utilizes the FLN-12 type SF6 load switch as the main switch and employs air insulation throughout the entire cabinet. It features a simple …
Product details
Overview:
The XGN15-12 series AC metal ring main switchgear is a compact, scalable, metal enclosed ring main switchgear suitable for distribution automation. It utilizes the FLN-12 type SF6 load switch as the main switch and employs air insulation throughout the entire cabinet. It features a simple structure, flexible operation, reliable interlocking, and convenient installation. It can provide technical solutions for various application scenarios and user requirements.
The main switch of the XGN15-12 series AC metal ring main switchgear is either the FLN36-12 type produced by our company or the SFG type SF6 load switch produced by foreign companies. It can also be equipped with VS1 type, VD4/S type, ISM type vacuum circuit breakers or HD4/S5 type SF6 circuit breakers according to user needs. The load switch and circuit breaker can be manually or electrically operated. After selecting and equipping with an electric operating mechanism, PT, CT, FTU, and communication devices, the distribution automation function can be realized.

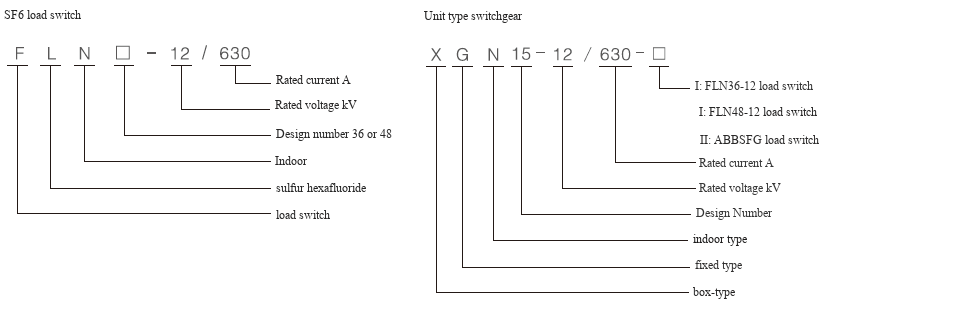

Model and meaning:
Normal usage conditions:
Altitude: not exceeding 1000m;
Environmental temperature: higher temperature: +40℃; lower temperature: -35℃;
Environmental humidity: The daily average value should not exceed 95%; the monthly average value should not be less than 1.2.4. Seismic capacity: 8.
The surrounding air does not contain explosive or corrosive gases, and the installation site is free from severe shock or impact.

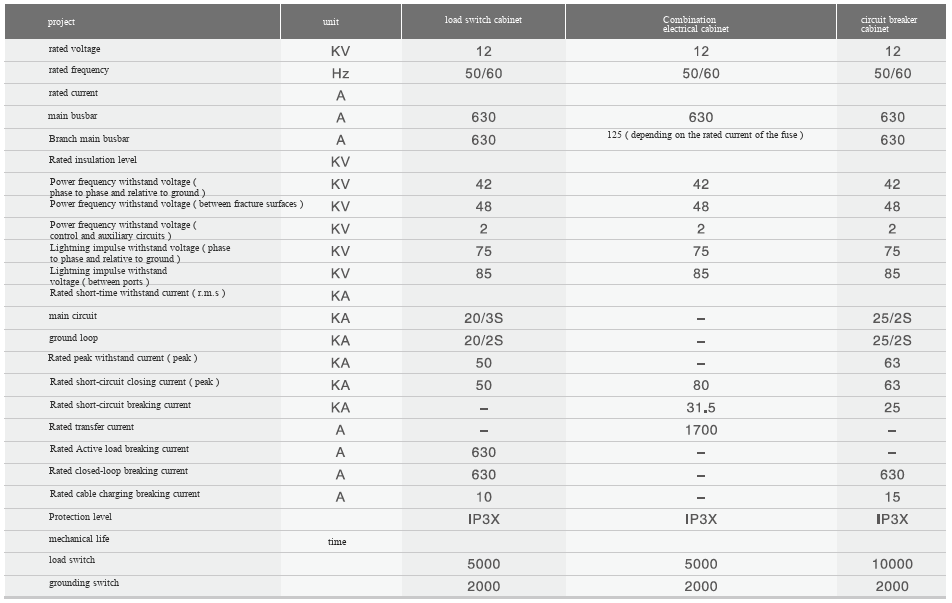

Technical Specifications:

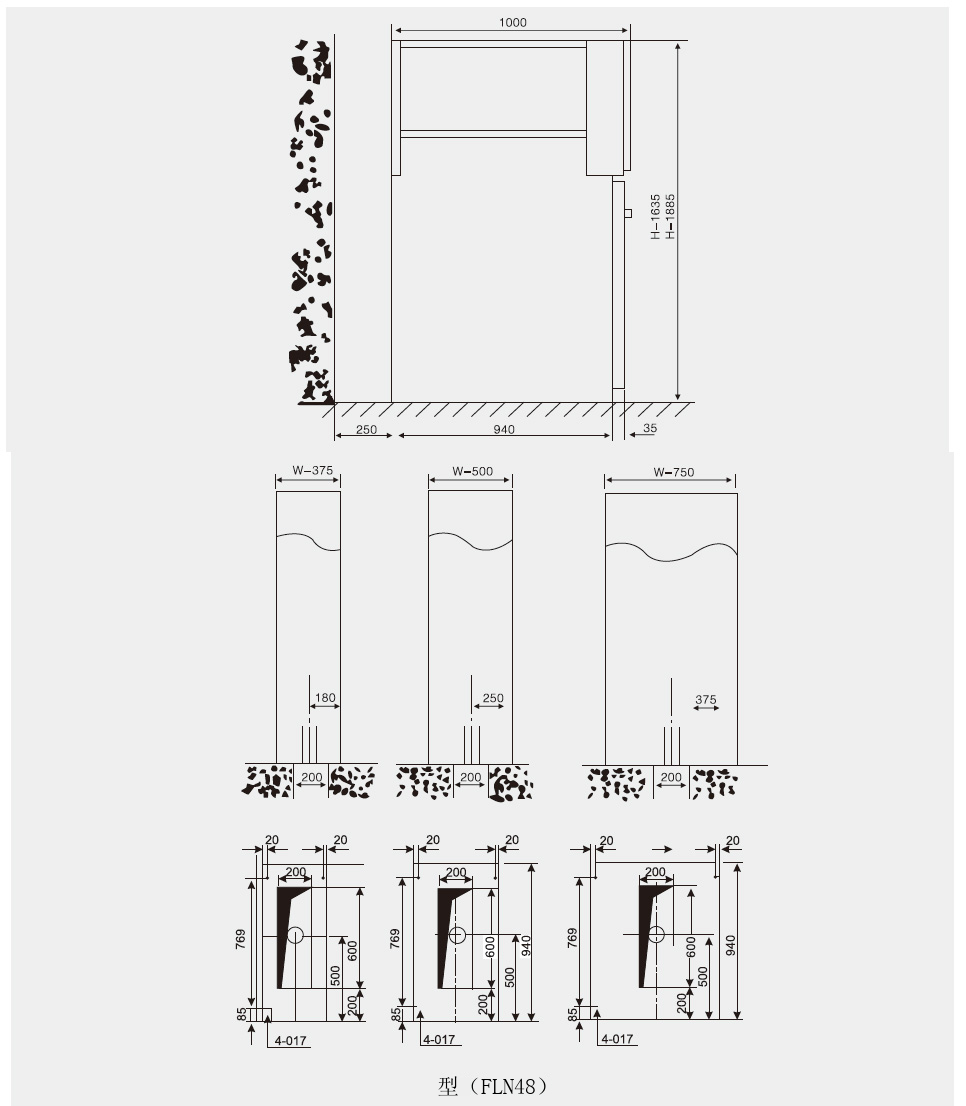

Outline dimensions and basic installation dimensions:
