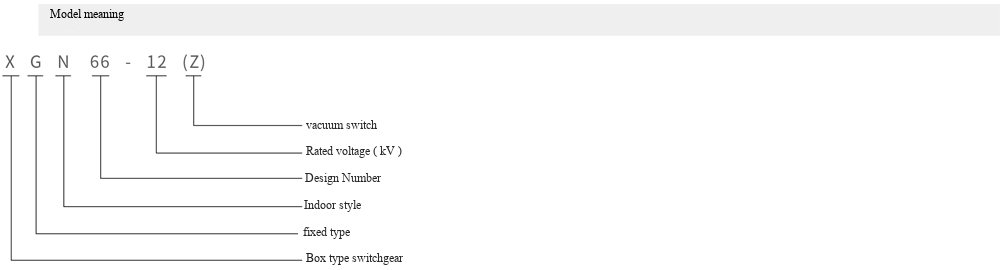

XGN66-12(Z) fixed enclosed switchgear
Short Description:
OverviewThe XGN66-12 fixed enclosed switchgear (hereinafter referred to as the switch cabinet) is a new high-voltage electrical complete product of our company. It complies with the requirements of the national standard GB3906 3-35kV AC Metal-Enclosed Switchgear and the Ministry of Electric Powers D …
Product details
Overview
The XGN66-12 fixed enclosed switchgear (hereinafter referred to as the switch cabinet) is a new high-voltage electrical complete product of our company. It complies with the requirements of the national standard GB3906 "3-35kV AC Metal-Enclosed Switchgear" and the Ministry of Electric Power's DLT404 "Technical Conditions for Ordering Indoor AC High-Voltage Switchgear". It also meets the requirements of the standard IEC60298 "Requirements for AC Metal-Enclosed Switchgear and Control Equipment above 1kV and up to and including 52kV".
This product incorporates foreign technology, featuring a compact size that is only 50% of the volume of an ordinary switch cabinet. The circuit breaker boasts high reliability and excellent performance. The "five-prevention" interlocking mechanism is reliable and simple. The switch cabinet is an indoor complete set of equipment for 3.6, 7.2, and 12kV three-phase AC 50Hz single busbar segmentation, serving the purpose of receiving and distributing electric energy. It also possesses functions such as controlling, protecting, and monitoring circuits. It can be used in various types of power plants, substations, industrial and mining enterprises, high-rise buildings, and other places. It can also be combined with ring main units for use in switching stations.
Normal usage conditions
◇ Altitude not exceeding 1000m.
◇ Ambient temperature: -25℃ ~+40℃, with an average temperature not exceeding +35℃ within 24 hours.
◇ The horizontal inclination is not greater than 3 degrees.
◇ The earthquake intensity does not exceed 8 on the scale.
◇ No severe vibration, impact, or explosion hazards.
