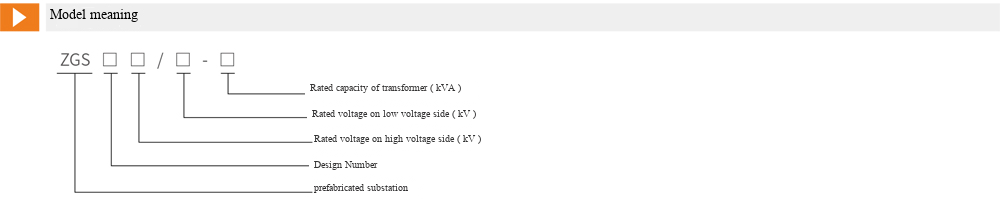

ZGS□-12 Combined Substation (American Type)
Short Description:
OverviewThis product is developed by absorbing foreign technology and combining it with the actual situation in China. The entire product features small size, easy installation and maintenance, low noise, low loss, anti-theft, strong overload capacity, and comprehensive protection. It is suitable fo …
Product details
Overview
This product is developed by absorbing foreign technology and combining it with the actual situation in China. The entire product features small size, easy installation and maintenance, low noise, low loss, anti-theft, strong overload capacity, and comprehensive protection. It is suitable for use in newly built residential areas, green belts, parks, stations, hotels, construction sites, airports, and other places.
The ZGS□-12 series American-style prefabricated box-type substation is suitable for use in 10kV ring main supply, dual power supply, or terminal power supply systems, serving as a device for power transformation, metering, compensation control, and protection.
This product complies with the following standards: GB/T17467-1998 "High-voltage and Low-voltage Prefabricated Substation" and DL/T537-93 "Technical Conditions for Ordering 6-35kV Box-type Substation".
Normal usage conditions
◇ Altitude not exceeding 1000m;
◇ Ambient temperature: -35℃ ~+40℃;
◇ Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◇ Installation location: A place free from fire and explosion hazards, chemical corrosive gases, and with good ventilation, where the ground inclination angle is not greater than 3°.
