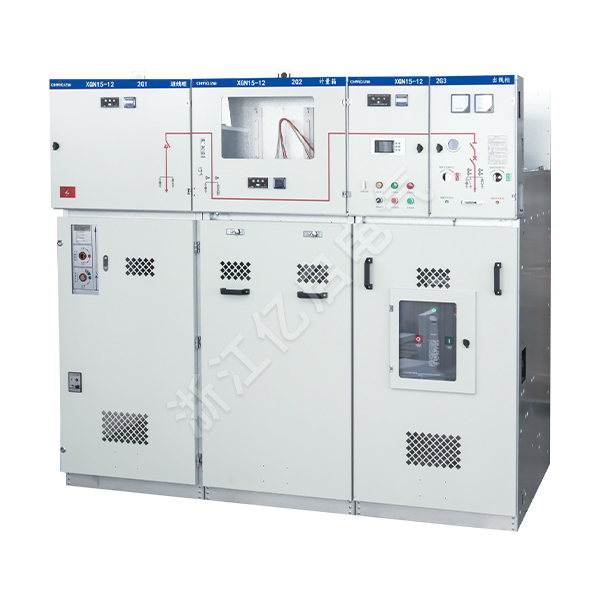

XGN15-12 (F.R) Sulfur Hexafluoride Ring Network Switchgear
Short Description:
XGN15-12 (F.R) sulfur hexafluoride ring network switchgear is used in ring network power supply or radiation power supply systems with rated voltage of 12kV and rated current of 630A and below, especially suitable for installation in prefabricated substations as control and protection for large power systems. The FLN36-12D sulfur hexafluoride load switch or FLRN36-12D load switch fuse combination with insulated casing in this product has the characteristics of small size, light weight, easy operation, reliable interlocking, and maintenance free. It is a high-voltage switchgear equipment required for urban power grid renovation and construction.
Detail
Product overview
XGN15-12 (F · R) sulfur hexafluoride ring network switchgear is used in ring network power supply or radiation power supply systems with rated voltage of 12kV and rated current of 630A and below, especially suitable for installation in prefabricated substations as control and protection for large power systems. This product features an FLN36-12D sulfur hexafluoride load switch or FLRN36-1D load switch fuse combination with an insulated casing. It has the characteristics of small size, light weight, easy operation, reliable interlocking, and maintenance free. It is a high-voltage switchgear required for urban power grid renovation and construction. This product complies with the standards of GB3906 "3-35kV AC Metal Enclosed Switchgear", GB/T11022 "Common Technical Requirements for High Voltage Switchgear and Control Equipment Standards", IEC60298 "AC Metal Enclosed Switchgear and Control Equipment with Rated Voltage above 1kV and below 50kV", and DL/T404 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear".
Structural characteristics
·Adopting a fully assembled structure, it is lightweight and aesthetically pleasing, and can be installed in any combination for unlimited expansion and extension.
XGN15-12 type modular AC metal enclosed ring network switchgear is suitable for receiving and distributing power sources in 50H2 and 12KV power networks.
The main switch inside the cabinet is SF6 switch.
·It can be operated manually and electrically, and has remote control function.
Equipped with complete and reliable mechanical linkage and interlocking devices, fully achieving the "five prevention" function.
·Adopting a linked protective insulation valve to shield live contacts and ensure personal safety.
Adopting front operation maintenance and reliable wall installation.
·The face door is equipped with an observation window, which can clearly observe the working condition of the components inside the cabinet.
Compliant with GB3906 standard.
