LW36-72.5 Porcelain Column High-voltage AC Sulfur Hexafluoride Circuit Breaker
Short Description:
The LW36-72.5 porcelain column high-voltage AC sulfur hexafluoride circuit breaker has reliable performance, stable operation, and three pole mechanical linkage operation,which can meet the requirements of various environmental conditions in China.
Product details
Product Application
The LW36-72.5 porcelain column high-voltage AC sulfur hexafluoride circuit breaker has reliable performance, stable operation, and three pole mechanical linkage operation,which can meet the requirements of various environmental conditions in China.
Product performance characteristics
1. Excellent breaking performance
2. Longer electrical lifespan
3. Reliable insulation performance
4. Longer mechanical lifespan
5. Safe and reliable operation with minimal maintenance workload
Overview
The LW36-72.5 porcelain column high-voltage AC sulfur hexafluoride circuit breaker is equipped with a CT20 spring operating mechanism, which adopts the self energy arc extinguishing principle and a single break structure. The three poles of each circuit breaker are mounted on a frame and achieve three-phase mechanical linkage through a transmission mechanism. Electronic control can achieve remote and local operation.

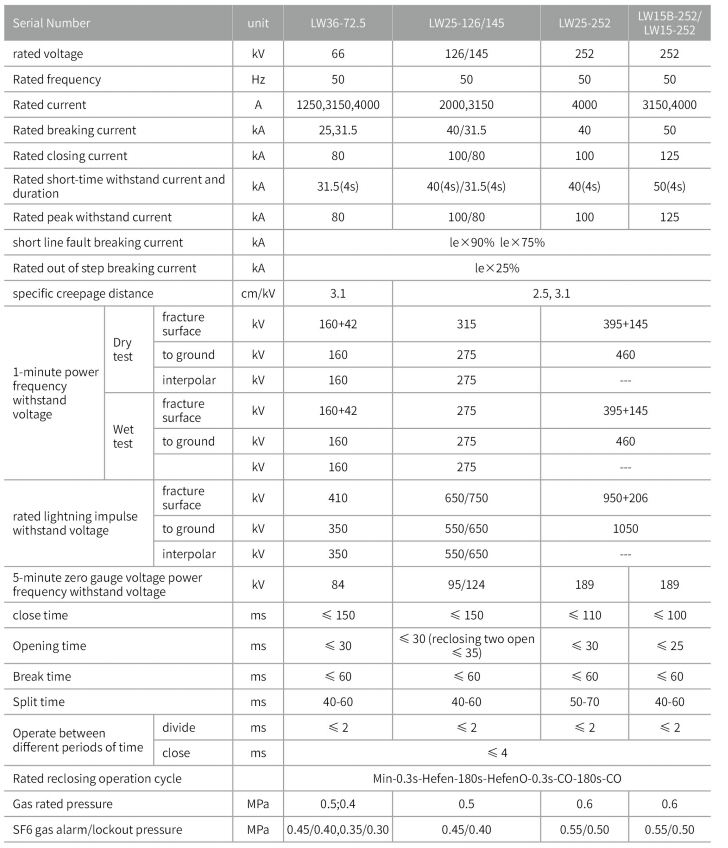

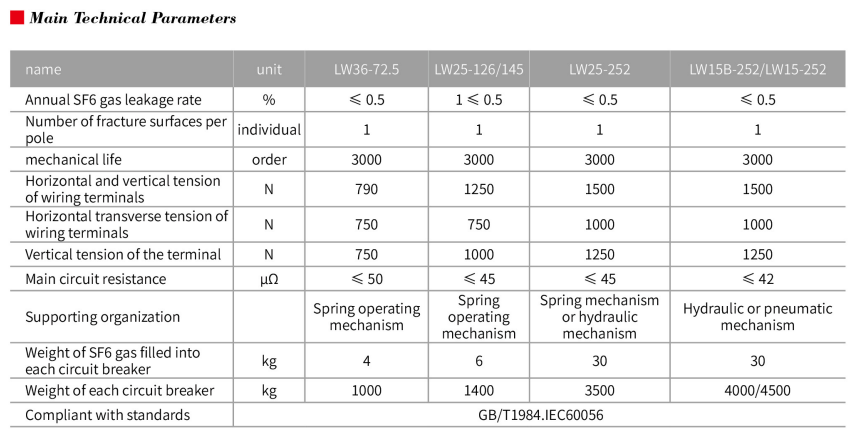

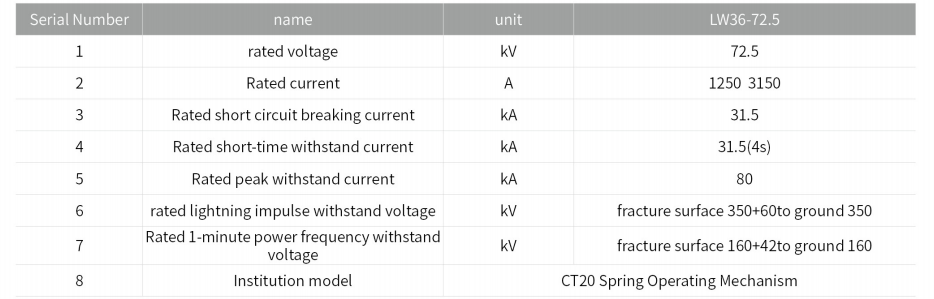

Main Technical Parameters
