Integrated Distribution Box JP
Short Description:
Product OverviewThe JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, outgoing lines, reactive power compensation, etc. It has functions such as short circuit, overload, overvoltage, leakage protectio …
Product details
Product Overview
The JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, outgoing lines, reactive power compensation, etc. It has functions such as short circuit, overload, overvoltage, leakage protection, etc. It is small in size, beautiful in appearance, economical and practical. It is installed on the poles of outdoor pole mounted transformers and is an ideal new generation distribution product for urban and rural power grid renovation.
Normal Usage Environment
◆ Environmental temperature: -25 ℃ +40 ℃ ;
◆ Relative humidity of the air: the daily average value shall not exceed 90%, and the monthly average value shall not exceed 90%;
◆ Altitude: not exceeding 2000m;
◆ Installed in a place without severe vibration and impact, and without corrosive gases.

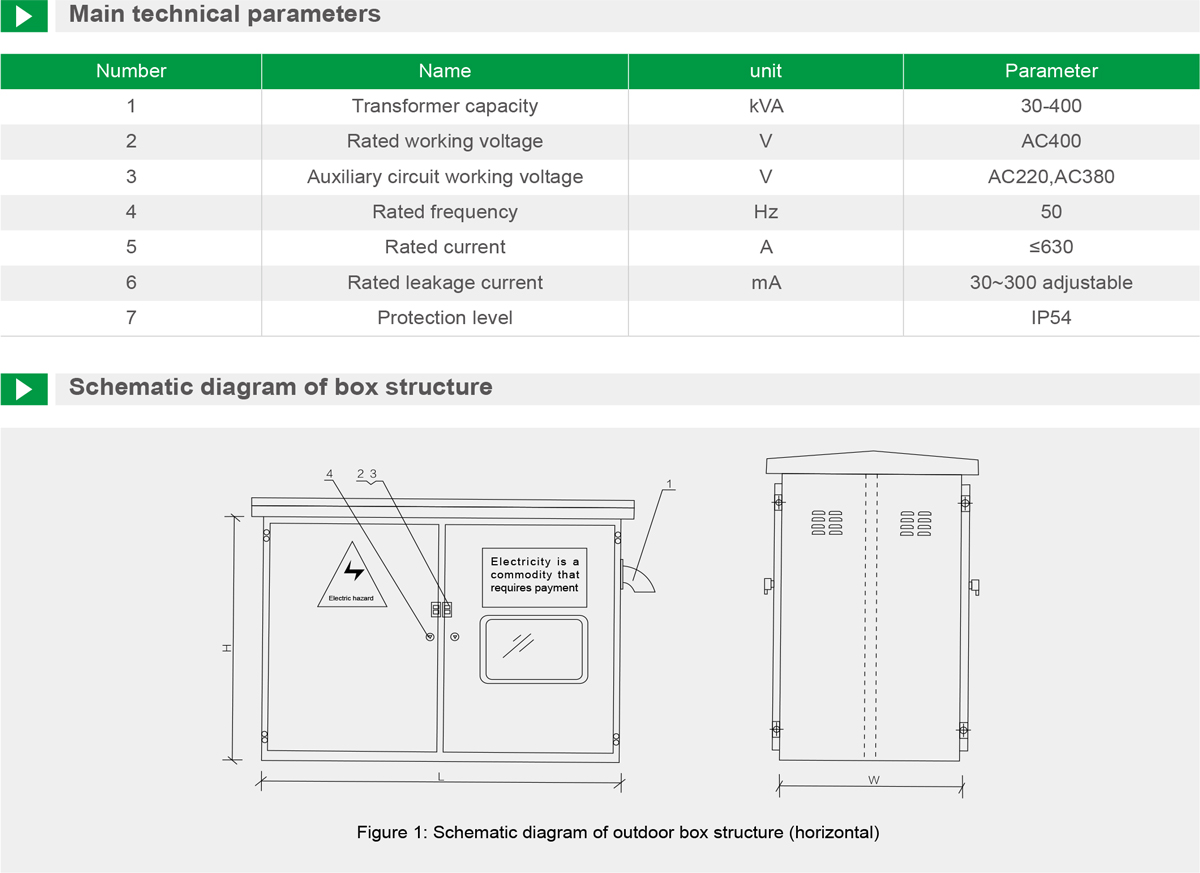

Structural Characteristics
The box structure is discrete and horizontal, and the outer shell is made of 2mm high-quality stainless steel plate that has undergone multiple bending processes (or a honeycomb structure of stainless steel double layered composite plate with flame retardant, environmental protection, thermal insulation, anti condensation and other properties). Special stainless steel welding technology is used, and the overall strength of the box is high after forming, with a mirror like suLXace and no weld marks left; The internal installation beams (plates) are treated with hot-dip galvanizing technology to ensure that they do not rust for 20 years; The front and back doors of the box are open for easy operation and maintenance by users. The door is surrounded by high elasticity and anti-aging sealing rubber strips. Each door is equipped with two types of light and dark locks, and the open locks are equipped with rain covers that are anti blocking and anti rust; Fully enclosed measuring room with lead sealing device; The side of the box is equipped with rain proof and foreign object proof inlet cable conduit, with ventilation holes and cable outlet holes punched at the bottom, and ventilation channels and wire mesh at the top, which have the functions of waterproofing, rust prevention, dust prevention, and foreign object prevention. The protection level is IP54.
