Product details

Safety Tips：

1. The product is strictly prohibited to be installed in an environment containing flammable and

    explosive gas and wet condensation, and it is strictly prohibited to operate the product with wet hands;

2. During the work of the product, it is strictly prohibited to touch the conductive parts of the product;

3. When installing, maintaining and maintaining products, ensure that the line is powered off;

4. Do not install in places where gas medium can corrode metal and destroy insulation;

5. In order to avoid dangerous accidents, the installation and fixing of the product shall be

   carried out in strict accordance with the requirements of the manual.

Usage Information：

1. The ambient temperature for normal use of the product is -5°C~+40°C;

   Note: lf used in the range of -35°C to +70°C, please consult with the manufacturer for use.

2. When the altitude exceeds 2000m, please consult with the manufacturer for use;

3. Pollution level: Level 3

4. Main circuit installation category: lll;

5. Shell protection grade: IP20.

Warranty Period：

The warranty period of the product is 24 months from the date of production under normal

storage and transportation conditions and the product packaging or the product itself is in good

condition.The following conditions are not covered by warranty,

1.Damage caused by improper use, storage and maintenance of users;

2.Damage caused by disassembly and maintenance not assigned by the company or personnel;

3. The product exceeds the warranty period

4. Damage caused by force majeure.

Environmental Protection：

In order to protect the environment, when this product or its parts are scrapped, please properly

dispose of it as industrial waste, Or to the recycling station in accordance with the relevant

national regulations for classification, disassembly, recycling and reuse.

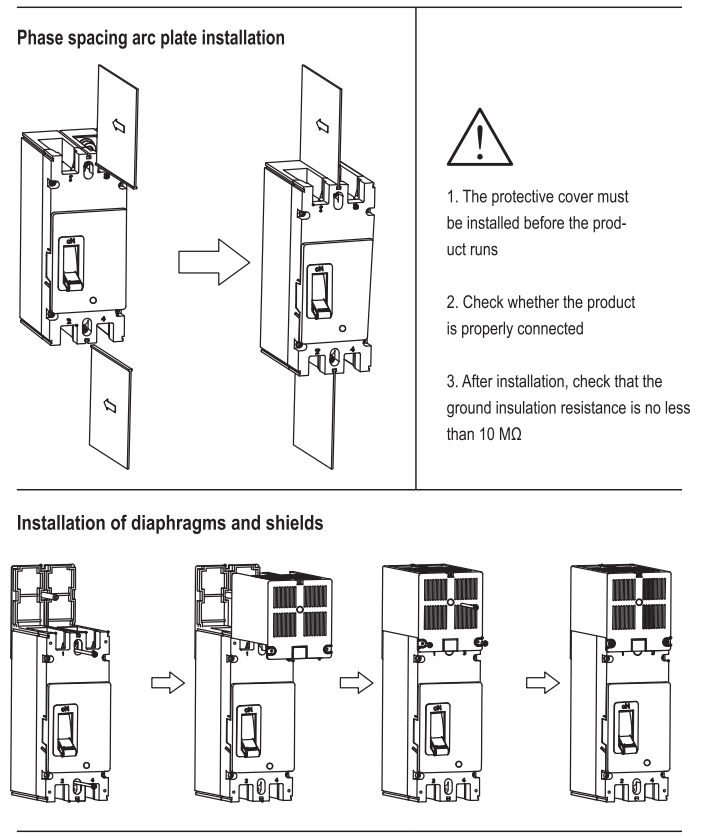

Attachment information:

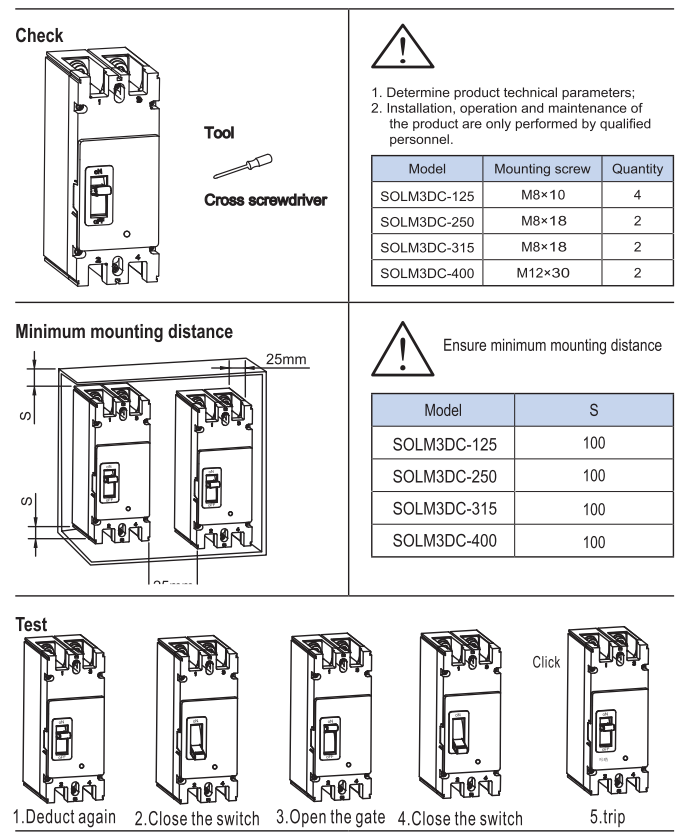

Inspection And Testing:

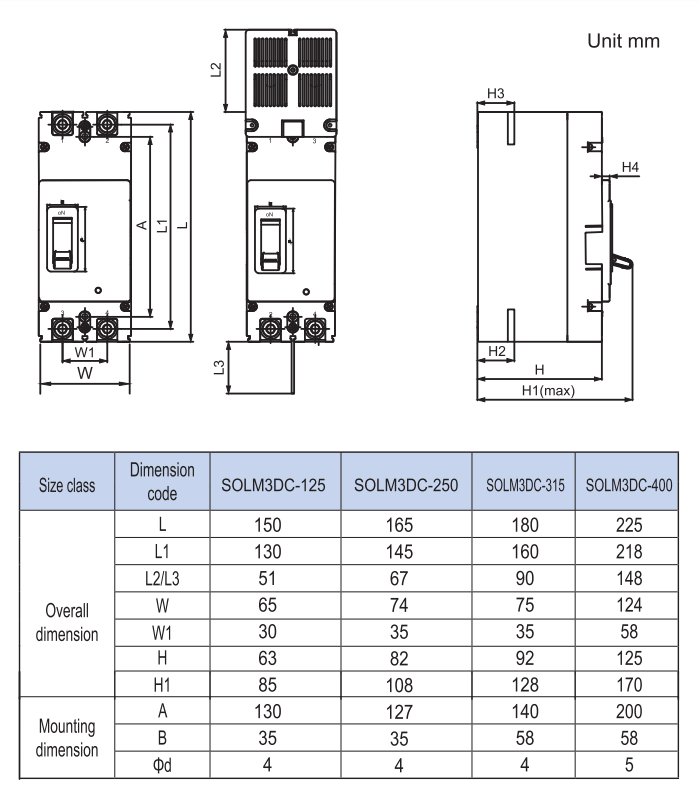

Outline Overall And Installing Dimensions:

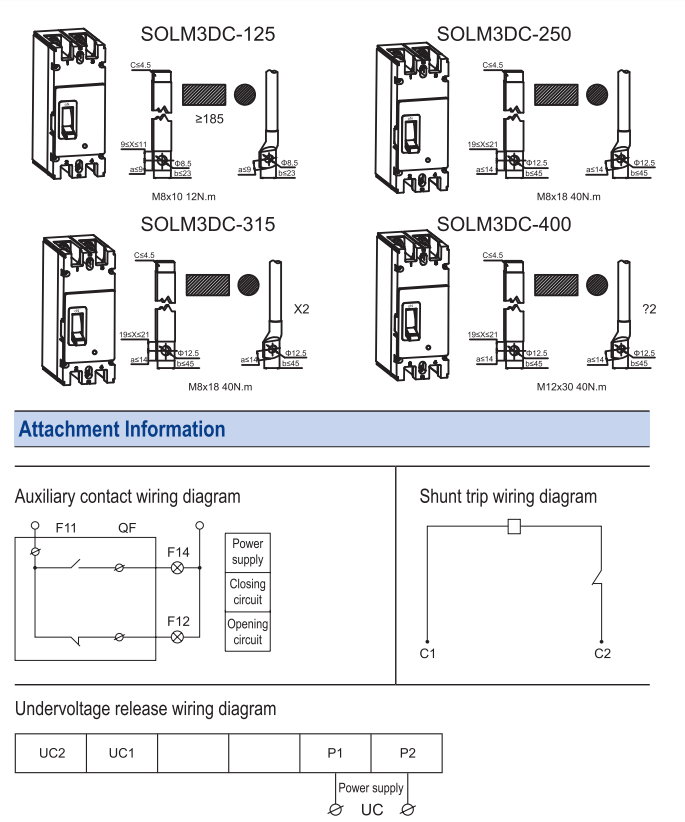

Installation Wiring:
