TM1 series plastic shell circuit breaker
Short Description:
product overview：TM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is mainly used in distribution networks with AC 50Hz (or 60Hz), rated insulation voltage of 800V (TM1-63 is 690V), rated working voltage of 690V and below, and rated current of 1600A and below …
Product details
product overview：
TM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is mainly used in distribution networks with AC 50Hz (or 60Hz), rated insulation voltage of 800V (TM1-63 is 690V), rated working voltage of 690V and below, and rated current of 1600A and below as overload, undervoltage, and short circuit protection for distribution of electrical energy and protection lines and power equipment. Under normal circumstances, it can be used for infrequent switching of circuits and infrequent starting of motors.
The product complies with IEC60947-2 and GB/T14048.2 standards.
Note: 1. Circuit breakers for protecting electric motors are represented by 2.
1. A/B type, N pole does not have overcurrent release installed; C/D type, N-pole installed overcurrent release; A/D type, with the N pole always connected.

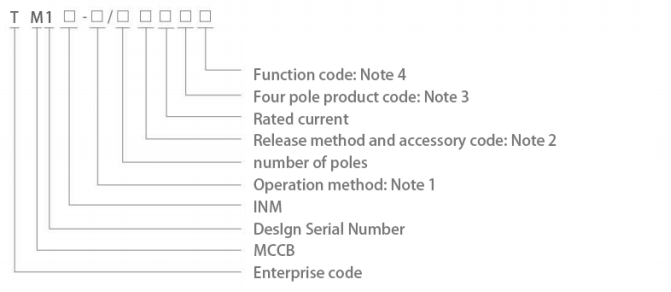

Model meaning:

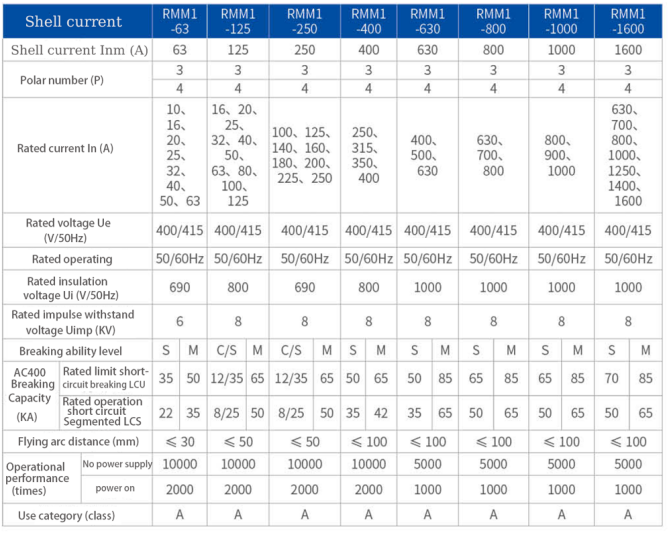

Main technical parameters：

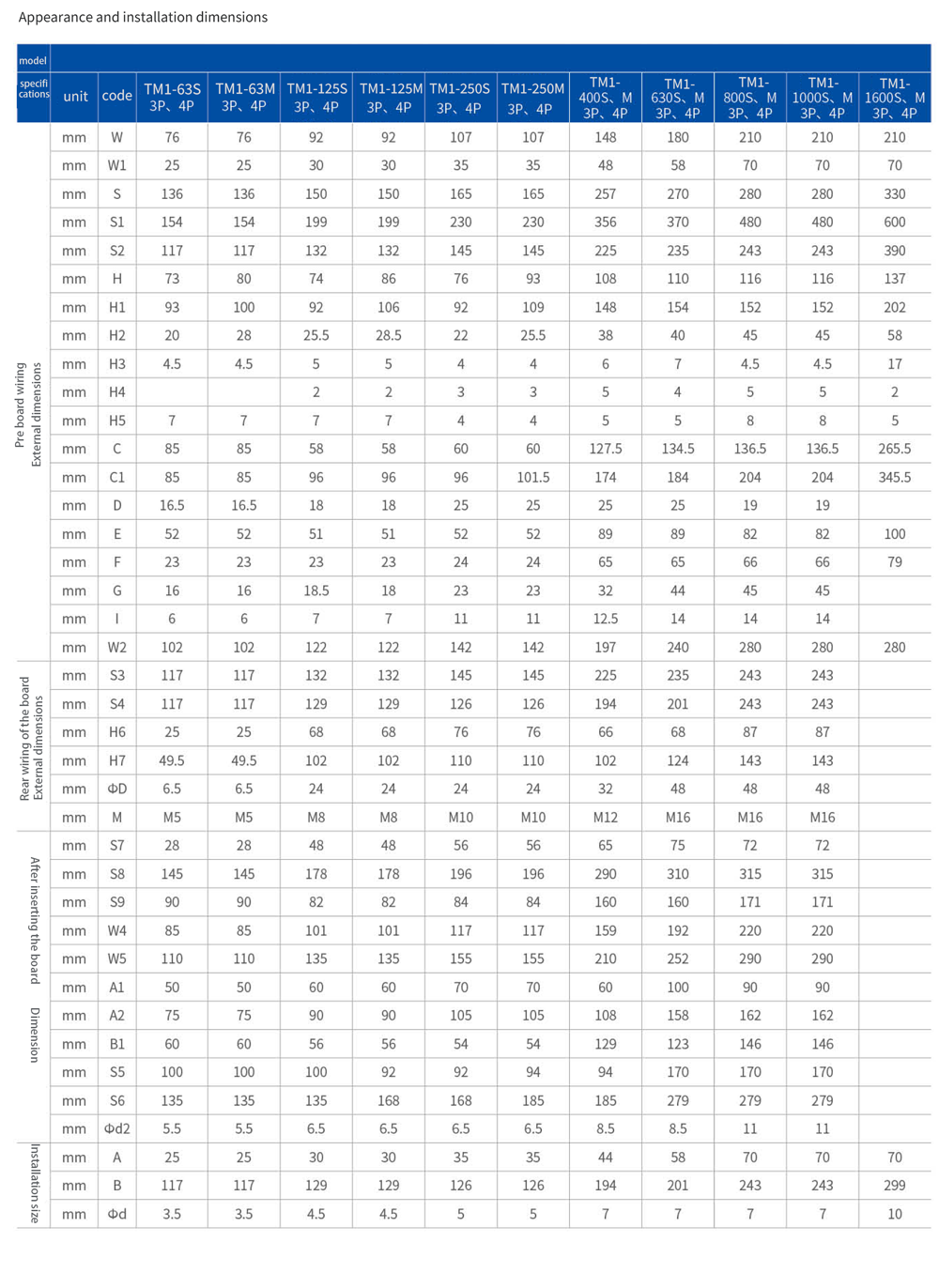

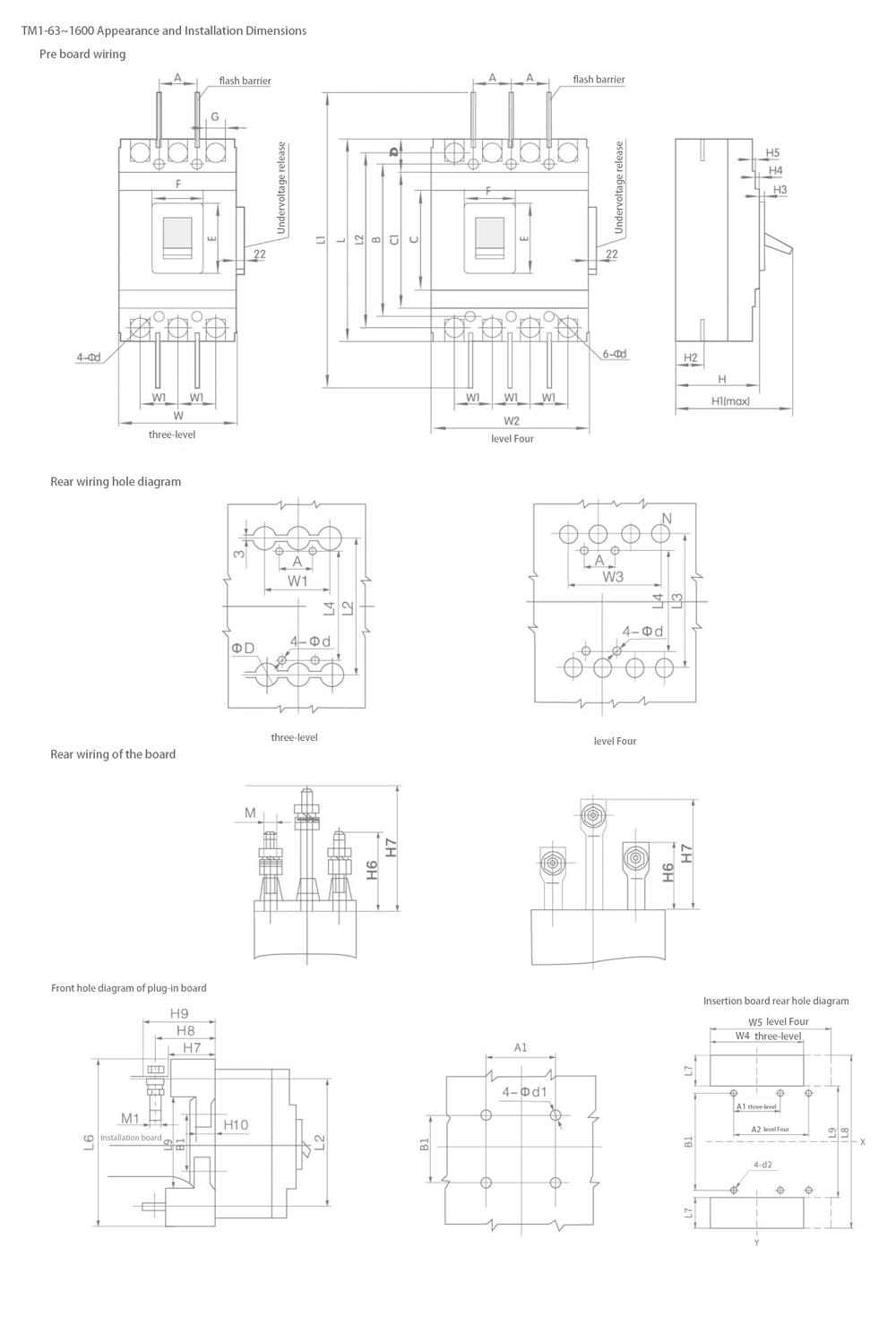

Outline dimension diagram：
