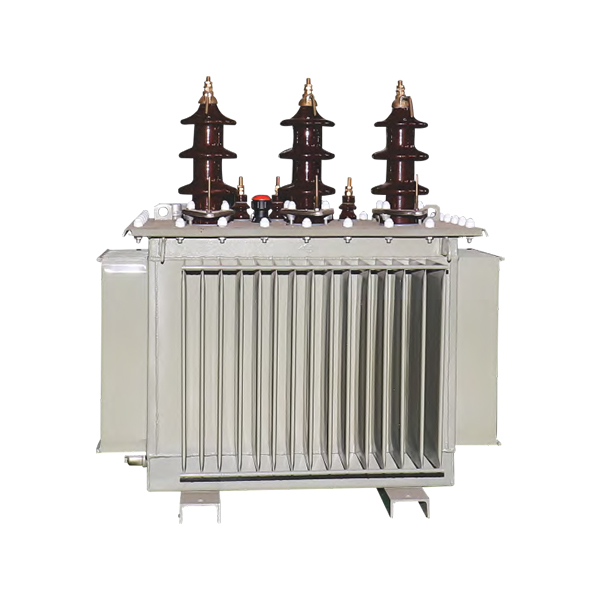

Amorpholus alloy oil-immersed transformer S10
Short Description:
Boerstn Electric Co.,Ltd is one of the toppest Amorpholus alloy oil mmersed transformer in China.During these years of exporting , Boerstn Electric Co.,Ltd now has rich experience in the worldwide markets
Product details
Overview
S10 transformer is a 11kV class S10 series fully sealed transformer. It introduces the new technology and adopts a fully ililleld sealed type without oil storage cabinet. The transformer changes its oil body due to changes in temperature and load, which is completely regulate by the elasticity of the transformer oil tank.
Features of Products
1. Meet or exceeds ANSI.IEC.GB.SANS .Standards
2. Safe Handling, Installation and Operation.
3. Attractive, modern appearance
4. Reasonable Structure
5. Fully- sealed
6. Higher system reliability
7. High security and reliability in operation
8. High capacity of overload and efficiency
9. Robust construction having excellent short circuit and thermal withstand capabilities
10. Transformers are more efficient by reduced no-load losses and Reduced load losses
Standard
GB1094.1-2013; GB1094.2- -2013; GB1094.3- -2013; GB 1094.5- -2008; GB/T 6451-2008; GB/T 1094.10- -2003; JB/T 10088- 2004;IEC60076; SANS 780 STANDARDS
