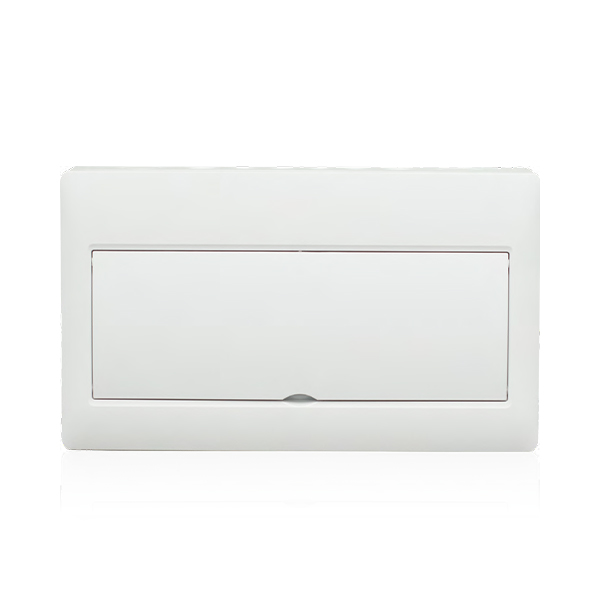

Low Voltage Lighting Box PZ30
Short Description:
PZ30 low-voltage lighting box is suitable for single-phase and three-phase circuits with a frequency of 50Hz, rated working voltage below 400V, and load current not exceeding 100A. It is used for lighting, motor control, overload, leakage, and short circuit protection of the circuit.
Product details
Product Overview
PZ30 low-voltage lighting box is suitable for single-phase and three-phase circuits with a frequency of 50Hz, rated working voltage below 400V, and load current not exceeding 100A. It is used for lighting, motor control, overload, leakage, and short circuit protection of the circuit. The box has a reasonable design, small size, beautiful appearance, safe and reliable use, and can be widely used in factories, buildings, residences, shopping malls, and other places. Compliant with standard: GB/T 7251.3-2017
Structural Characteristics
The PZ30 low-voltage lighting box is made of high-quality cold-rolled steel plate, and the outer shell is treated with high-voltage electrostatic spraying. It is equipped with a plastic transparent cover (white opaque cover), which has a beautiful and generous appearance. The upper and lower sides of the box are equipped with knock off holes, making it convenient for users to enter and exit the line. A modular structure standard combination system, where users can freely choose modules; Each box design is innovative and beautiful,
integrating standardization into one; The lighting box can be used universally for single-phase and three-phase, and can be combined with single pole, multi pole, and leakage at any time; Rated current ≤ 100A, enclosure protection level: IP30 (operating suLXace IP20C);
The ultra-thin structure is suitable for concealed installation and wall hanging installation of lightweight structural walls; Safe and reliable single-phase three-phase comb shaped busbar connection, with busbar insulation protection sleeve for higher safety peLXormance and better thermal stability.
