High Voltage Fixed SF6 Ring Main Unit(RMU) XGN6-12
Short Description:
XGN6-12 series SF6 ring main unit, load break switch cabinet is a new generation of switching equipment based on SF6 load switch. It is widely used in 7.2~40.5kV electric power distribution system ,The products are widely used in the power supply loop or double radiation power supply system for its excellent performance and compact design and extension design concept for the purpose of making and breaking load current and overload current, can also be used for making and breaking no-load long line
Product details
Product Overview

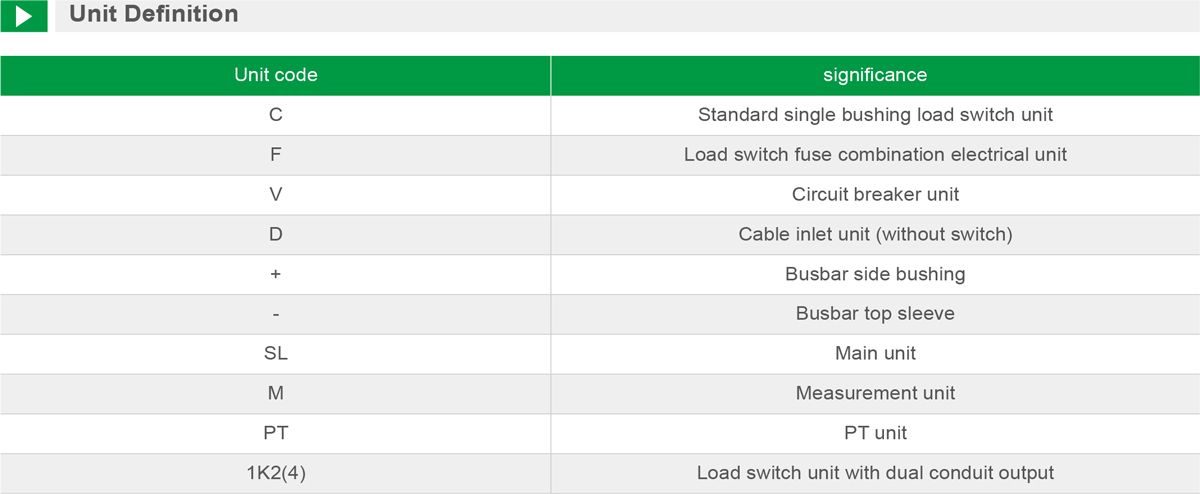

The XGN6-12 series fully enclosed, fully insulated, and inflatable ring network switchgear is a SF6 gas insulated metal common box enclosed switchgear. The equipment can be composed of modules such as load switch unit, load switch fuse combination electrical unit, vacuum circuit breaker unit, and busbar incoming unit. Adopting a series of advanced technologies and materials, it has excellent electrical and mechanical properties, is less affected by the environment and weather, is compact, easy to install, easy to operate, does not require maintenance, and has flexible combination methods. Clear and intuitive design ensures simple and direct operation. The feeder wiring has a large capacity and is suitable for various wiring systems.
Product Features
Operational safety:
We can provide users with special security measures through the following security measures:
Integrated three station load switch
The circuit breaker adopts a load switch instead of an isolation switch, which is safer and more reliable. The fully enclosed design on
the primary side provides protection against accidental contact and meets the five prevention requirements. The mechanical interlocking
live display can provide live indication for incoming and outgoing lines. The operation is reliable. The fully enclosed design seals all
10kV switches and the live body of the busbar in an air box welded with 3mm stainless steel plate; Equipped with silicone rubber
cable plugs, the cable head is fully insulated and sealed, so that it is not affected by external environments such as dust, moisture,
and small animals. The spring energy storage operation mechanism can be manually or electrically operated. The panel can provide
switch position indication. The cabinet body is made of galvanized sheet, and the suLXace is electrostatic sprayed to enhance corrosion
resistance. The pressure gauge monitors the safe pressure range of SF6 gas inside the box.
Economy:
Maintenance free
Highly reliable
The service life can reach 20 years
Flexible plan:
Multiple entry methods, capable of achieving left, right, up, or forward lines
Multiple combination methods, allowing for arbitrary combinations between units
Using insulated busbars, it is possible to achieve front and rear cabinet connection or left and right cabinet connection
Flexible design scheme
Widely applicable:
The output line has a large capacity and small footprint, making it suitable for various application needs
