ZGS11-12series combination American prefabricated substation
Short Description:
ZGS11-12 series combination American prefabricated substation has the characteristics of small size, easy installation and maintenance, low noise, low loss, anti-theft, full protection, and strong overload capacity. Suitable for new residential areas, green belts, parks, stations, hotels, construction sites, airports, and other places.
Product details
Product overview:
ZGS11-12 series combination American prefabricated substation has the characteristics of small size, easy installation and maintenance, low noise, low loss, anti-theft, full protection, and strong overload capacity. Suitable for new residential areas, green belts, parks, stations, hotels, construction sites, airports, and other places.
ZGS1-12 series combination American prefabricated substations are suitable for 10kV ring network power supply, dual power supply or terminal power supply systems. As a substation, metering, compensation control and protection device, this product complies with the following standards: GB17467 "High Voltage/Low Voltage Prefabricated Substations" DL/T537 "Guide for Selection of High Voltage/Low Voltage Prefabricated Box type Substations".

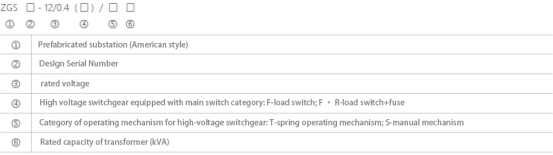

Model and meaning：
Usage conditions:
◆Altitude: not exceeding 1000m;
◆Environmental temperature: -35 ℃~+40 ℃;
◆Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◆Installation location: A place without fire, explosion hazards, chemical corrosive gases, and good ventilation, with a ground inclination angle of no more than 3 °,
Note: If ordering this product exceeds the above conditions, please consult with our company.
Technical Parameter：
