99T1,6L2,42L6 pointer table
Short Description:
The JK42L6, JK42C3, JK6L2, JK6C2 series instruments are composed of measuring, measuring mechanism and indicating device, the supporting part is composed of jewel bearings and tip bearings, and the moving part is composed of high magnetic system, moving coil and pointer. This of instruments is of magnetic electric internal magnetic structure. Plastic shell, with printed scale plate and transparent glass cover, the overall appearance is beautiful and generous, and the field of vision is.
Product details
Product Overview:
The JK42L6, JK42C3, JK6L2, JK6C2 series instruments are composed of measuring, measuring mechanism and indicating device, the supporting part is composed of jewel bearings and tip bearings, and the moving part is composed of high magnetic system, moving coil and pointer. This of instruments is of magnetic electric internal magnetic structure. Plastic shell, with printed scale plate and transparent glass cover, the overall appearance is beautiful and generous, and the field of vision is.

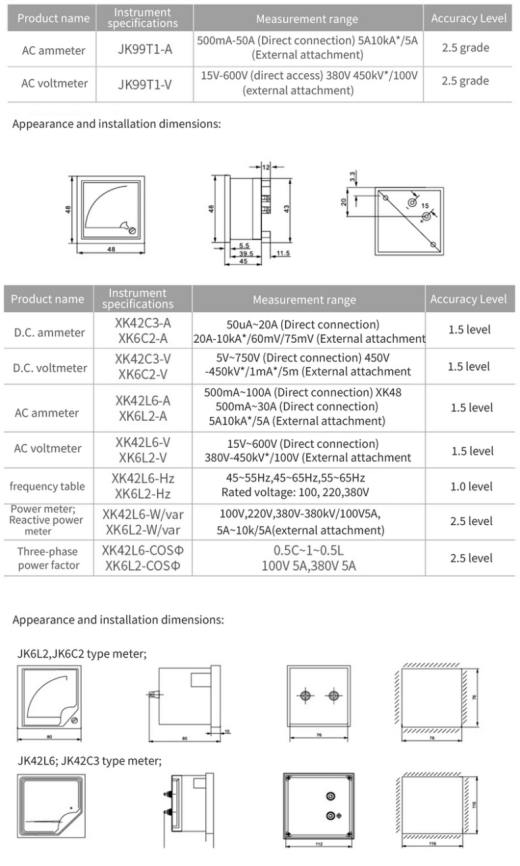

Function selection table：
