JK24L-63 series small circuit breaker
Short Description:
The JK24L series leakage circuit breaker has the characteristics of advanced structure, reliable performance, high breaking capacity, and beautiful and compact appearance. shell and main components are made of impact-resistant and high-flame-retardant materials. It is suitable for places with an alternating current of 50Hz or60Hz, a rated working voltage of 400V and below, and a rated current of 6A to 63A. It is mainly used for overload, short circuit, and leakage protection of lighting, distribution lines, and equipment in office buildings, residential buildings, and similar buildings. It can also be used for infrequent switching lines under normal conditions.
Product details
product overview：
The JK24L series leakage circuit breaker has the characteristics of advanced structure, reliable performance, high breaking capacity, and beautiful and compact appearance. shell and main components are made of impact-resistant and high-flame-retardant materials. It is suitable for places with an alternating current of 50Hz or60Hz, a rated working voltage of 400V and below, and a rated current of 6A to 63A. It is mainly used for overload, short circuit, and leakage protection of lighting, distribution lines, and equipment in office buildings, residential buildings, and similar buildings. It can also be used for infrequent switching lines under normal conditions.
The product meets the GB16917.1 standard.

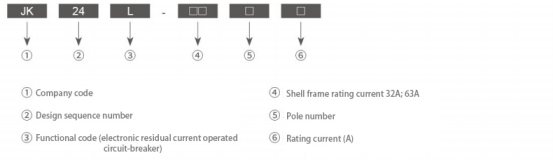

Model meaning:
3. Mechanical and electrical life:
Electrical life: 2000 cycles, COSФ = 0.85~0.;
Mechanical life: 2000 cycles;
Operating frequency: In < 25A 240 cycles/h; In > 2A 120 cycles/h;
4. Insulation resistance to impact voltage performance
Each pole connected together and to the neutral pole can withstand an impact voltage with a value of 6000V;
Each pole connected to the neutral pole and to the metal support can withstand an impact voltage with a peak value of 800V.
5. The residual current action circuit breaker has the ability to withstand a peak current of 200A impact current and a peak voltage of 2Un overvoltage without causing a false trip,

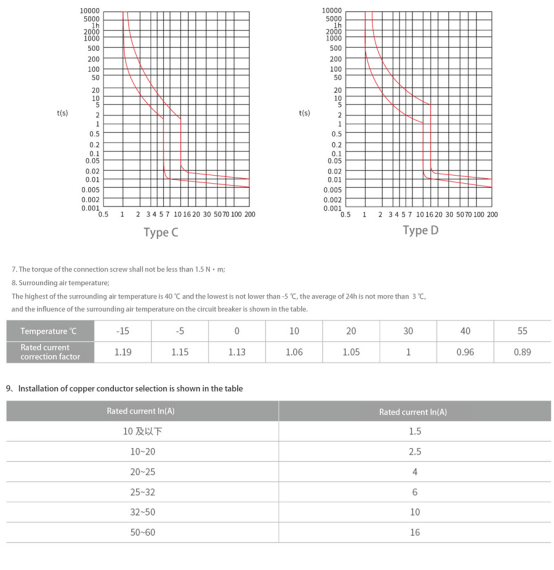

6. The trip characteristic curve is shown in Figure 6, the trip characteristic curve is shown in Figure

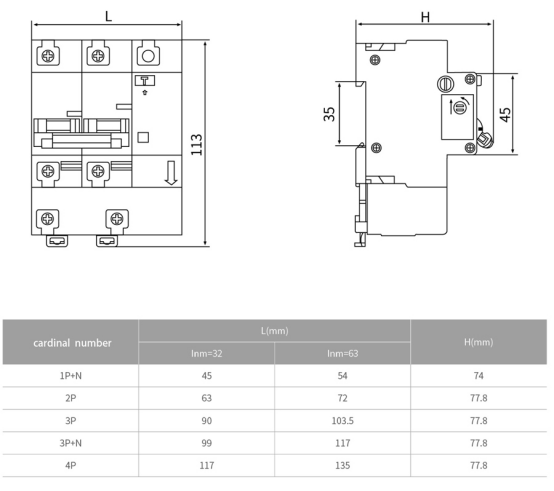

Dimensions and installation size：
