JK24-63 series small circuit breaker
Short Description:
The JK24-63 series of miniature circuit breakers are characterized by advanced structure, reliable performance, high breaking capacity, and a beautiful and appearance. The housing and main components are made of impact-resistant and highly flame-retardant materials.
Product details
product overview：
The JK24-63 series of miniature circuit breakers are characterized by advanced structure, reliable performance, high breaking capacity, and a beautiful and appearance. The housing and main components are made of impact-resistant and highly flame-retardant materials.
They are suitable for use in environments with alternating current of 5Hz or 60Hz, a rated working voltage of 400V or below, and a rated current of 1A to 63A.
They mainly used for overcurrent and short-circuit protection of lighting, distribution lines, and equipment in office buildings, residential homes, and similar structures. They can also be used forrequent switching of lines under normal conditions.
The products comply with IEC60898-1 and GB10963.1 standards

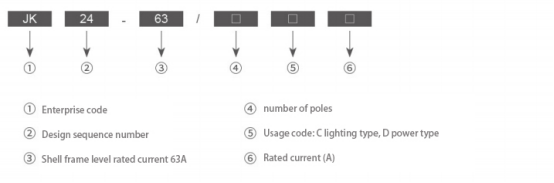

Model meaning:

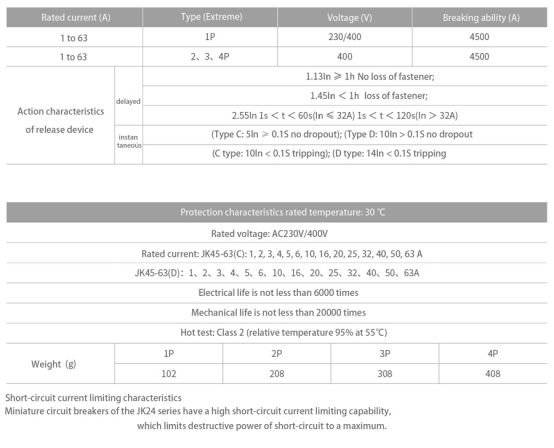

Performance：
