JKM1E electronic molded case circuit breaker
Short Description:
The JKM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international technology. This circuit breaker has a small size and high breaking capacity. The characteristics of short arc and anti vibration make it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is 1000V (JKM1-80 is 800V),
Product details
product overview：
The JKM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international technology. This circuit breaker has a small size and high breaking capacity. The characteristics of short arc and anti vibration make it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is 1000V (JKM1-80 is 800V), suitable for distribution networks with AC 50Hz/60Hz rated working voltage up to 1000V and rated current up to 1250A. It is used to distribute electrical energy and protect lines and power equipment from damage caused by overload, short circuit, and undervoltage faults. It can also be used for infrequent line switching and motor starting, as well as overload, short circuit, and undervoltage protection.

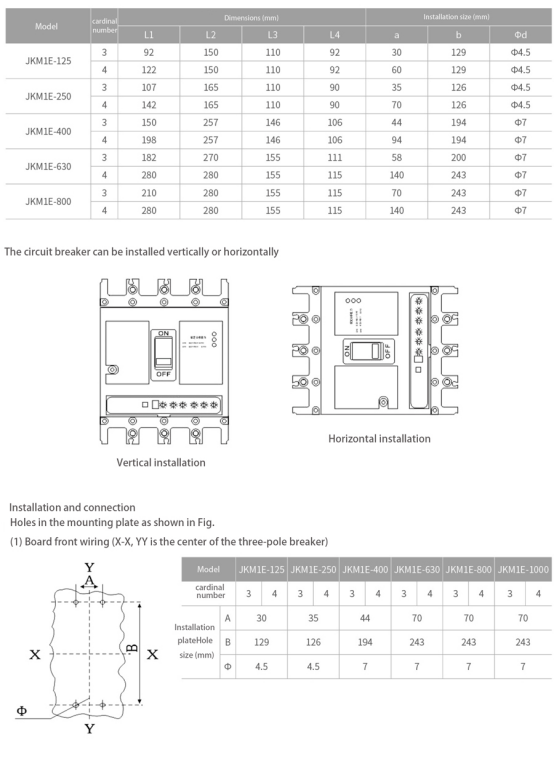

Circuit breakers can be installed vertically or horizontally.
G circuit breaker is suitable for isolation, represented by the symbol
The circuit breaker complies with the standard GB/T14048.2 "Low voltage switchgear and control equipment Part 2: Circuit breakers".

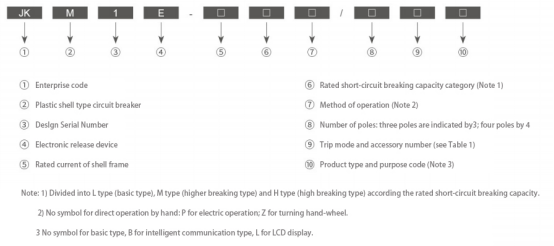

Model meaning:
operational condition：
The altitude of the installation site is not more than 2000 m;
The surrounding air temperature is not more than 40 , and the average value of the surrounding air temperature is not more than 35 ℃ within 24h, and the lower limit of the surrounding air temperature is5 ℃.
When the highest temperature is 40%, the relative humidity of the air is not more than 50%, and a higher relative humidity be allowed at a lower temperature, for example, 90% at 20 ℃ C. Special measures shall be taken for the condensation occasionally generated on the product due temperature changes.
The pollution level is 3.
The installation category of the main circuit of the circuit breaker is class I, and the installation category of the auxiliary circuit control circuit not connected to the main circuit is;
The use category is A or B.
