JKM1LE residual current operated circuit breaker
Short Description:
The JKM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international technology. This circuit breaker has a small size and high breaking capacity. The characteristics of short arc and anti vibration make it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is
Product details
product overview：
The JKM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international technology. This circuit breaker has a small size and high breaking capacity. The characteristics of short arc and anti vibration make it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is 1000V (JKM1-80 is 800V), suitable for distribution networks with AC 50Hz/60Hz rated working voltage up to 1000V and rated current up to 1250A. It is used to distribute electrical energy and protect lines and power equipment from damage caused by overload, short circuit, and undervoltage faults. It can also be used for infrequent line switching and motor starting, as well as overload, short circuit, and undervoltage protection.
Circuit breakers can be installed vertically or horizontally.
G circuit breaker is suitable for isolation, represented by the symbol
The circuit breaker complies with the standard GB/T14048.2 "Low voltage switchgear and control equipment Part 2: Circuit breakers".

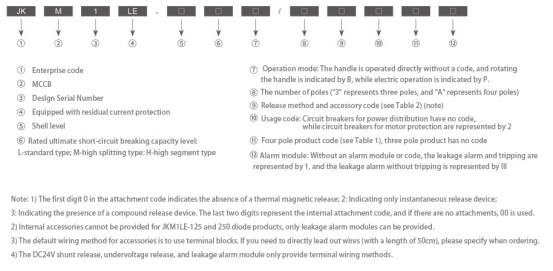

Model meaning:
Normal working conditions:
The upper limit of the surrounding air temperature shall not exceed+40 ℃, and its average value within 24 hours shall not exceed+35 ℃, with a lower limit of not less than -5 ℃
Note: Circuit breakers used under conditions where the ambient air temperature is above+40 ° C or below -5 ° C should be negotiated with the manufacturer. The altitude of the installation site shall not exceed 2000m;
The relative humidity of the atmosphere does not exceed 50% at the highest temperature around+40 ℃, and higher relative humidity is allowed at lower temperatures, such as reaching 90% at+20 ℃. Special measures should be taken for occasional condensation on the product due to temperature changes;
The pollution level is level 3;
In a medium without explosive hazards, and where there are no gases or conductive dust that can corrode metals or damage insulation.
Installed in a place without impact vibration and without rain or snow invasion, the inclination of the installation plate in all directions shall not exceed 5 °;
The installation category of the main circuit of the circuit breaker is Chuan, and the installation category of the auxiliary circuit and control circuit that are not connected to the main circuit is III;
The external magnetic field near the installation site of the circuit breaker should not exceed 5 times the Earth's magnetic field in any direction;
The electromagnetic environment for installing the circuit breaker is environment A.

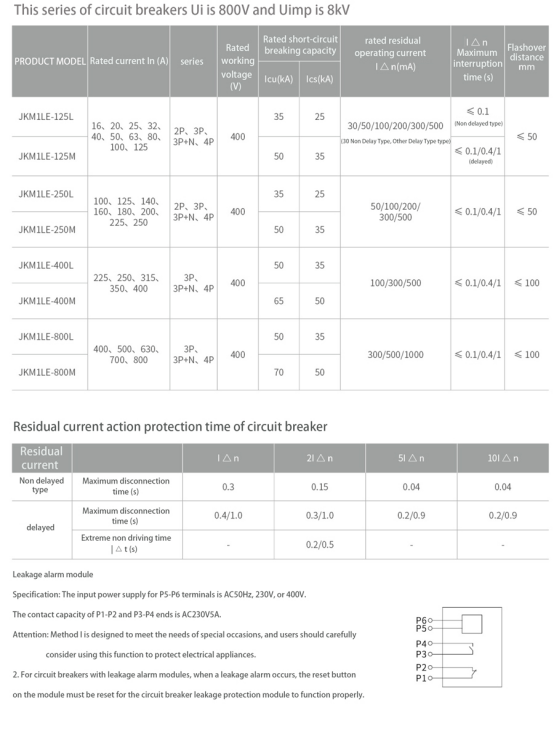

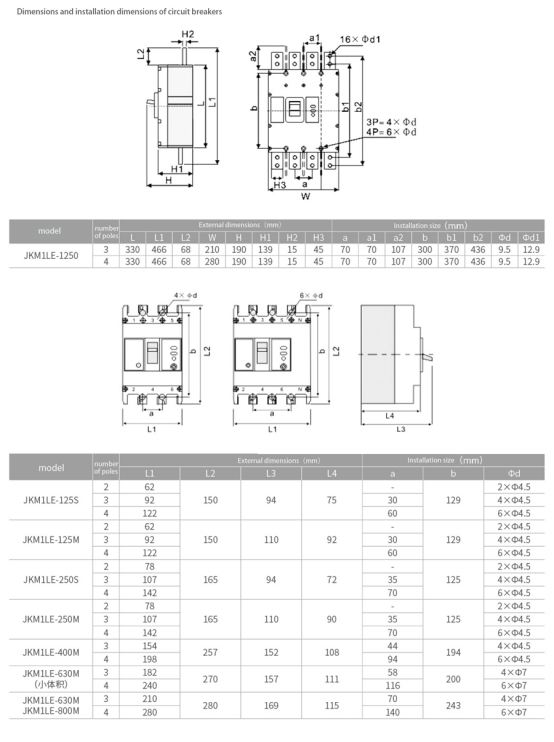

Mounting Dimension：
