JKW1-1600 Universal Circuit Breaker
Short Description:
suitable for general distribution systems, new energy distribution systems, multi energy distribution networks, inverters, and distributed power sources such as rotating motors for grid connection operation and protection. It has isolation function and small size. High breaking ability and other multifunctional features.
Product details
product overview：
suitable for general distribution systems, new energy distribution systems, multi energy distribution networks, inverters, and distributed power sources such as rotating motors for grid connection operation and protection. It has isolation function and small size. High breaking ability and other multifunctional features.
Rated operating voltage: C400V/690V
Rated frequency 50Hz
Rated current 200A-1600A
There are three poles and four poles
There are drawer style and fixed style
Inverted wire connection
Use category B
Implementing standard GB/T14048.2-2008
Meets the standards IEC60947-1 and GB14048.1-2012 General Principles for Low Voltage Switchgear and Control Equipment IEC60947-2 and GB14048.2-2008 Circuit Breakers for Low Voltage Switchgear and Control Equipment IEC60947-4-1 and GB14048.4 Electromechanical Contactors and Motor Starters with Motor Protectors for Low Voltage Switchgear and Control Equipment

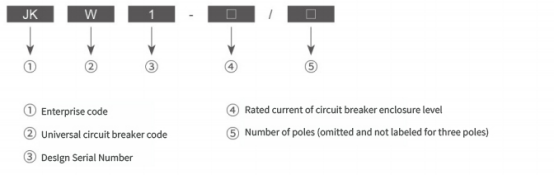

Model meaning:

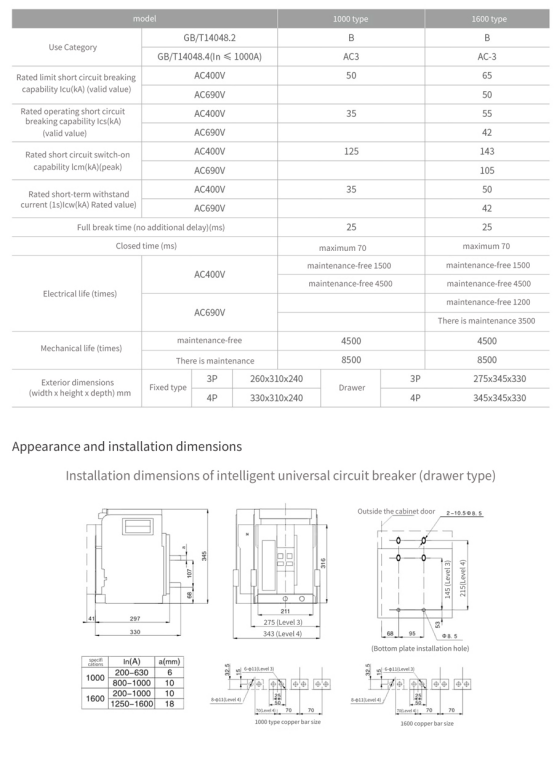

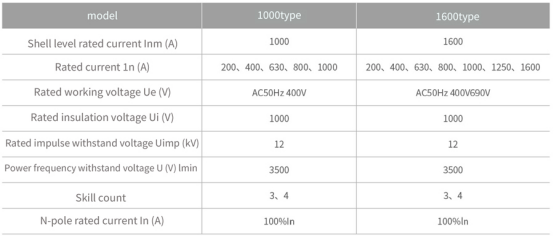

Technical parameters:
