TW1 (TW1) series intelligent universal circuit breaker
Short Description:
JKW1-2000~6300 universal circuit breaker (hereinafter referred to as the circuit breaker) is suitable for distribution networks with AC 50Hz, rated working voltage up to AC690V, and rated working current up to 6300A and below. It is used to distribute electrical energy and protect lines and power equipment from the hazards of overload, undervoltage, short circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection function, selective and precise protection, which can improve power supply reliability and avoid unnecessary power outages.
Product details
product overview：
JKW1-2000~6300 universal circuit breaker (hereinafter referred to as the circuit breaker) is suitable for distribution networks with AC 50Hz, rated working voltage up to AC690V, and rated working current up to 6300A and below. It is used to distribute electrical energy and protect lines and power equipment from the hazards of overload, undervoltage, short circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection function, selective and precise protection, which can improve power supply reliability and avoid unnecessary power outages.
Compliant with standards such as GB/T14048.2 and IEC60947-2.

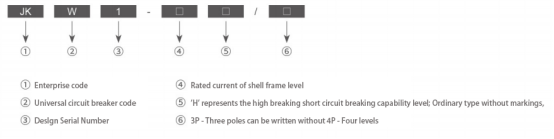

Model meaning:

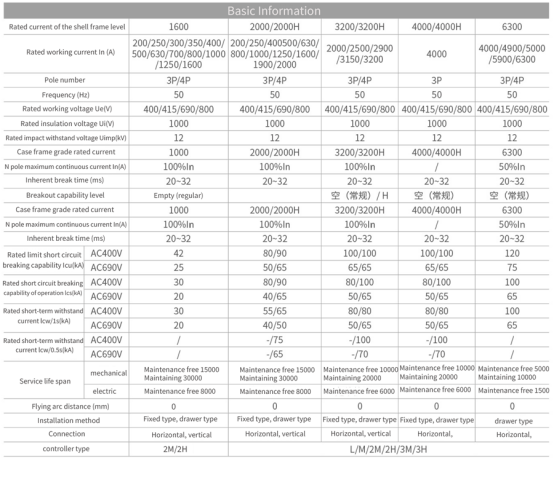

Main technical parameters:

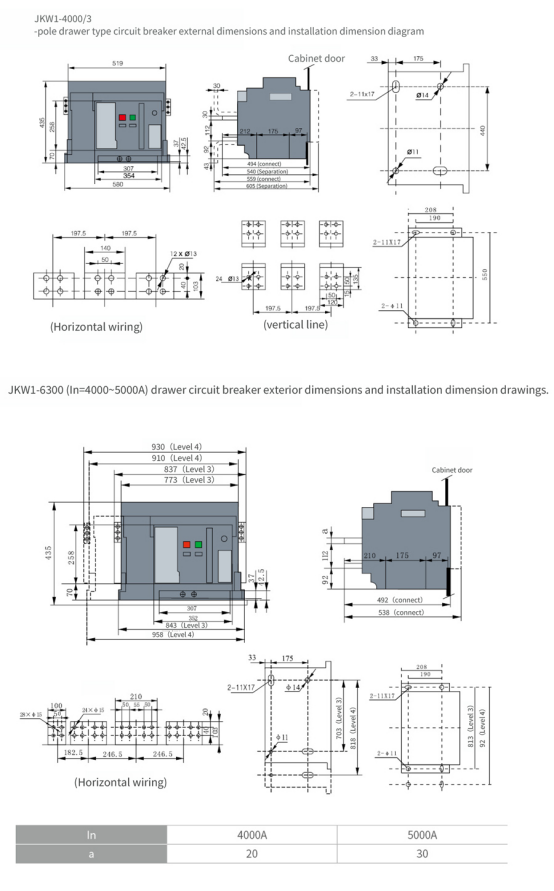

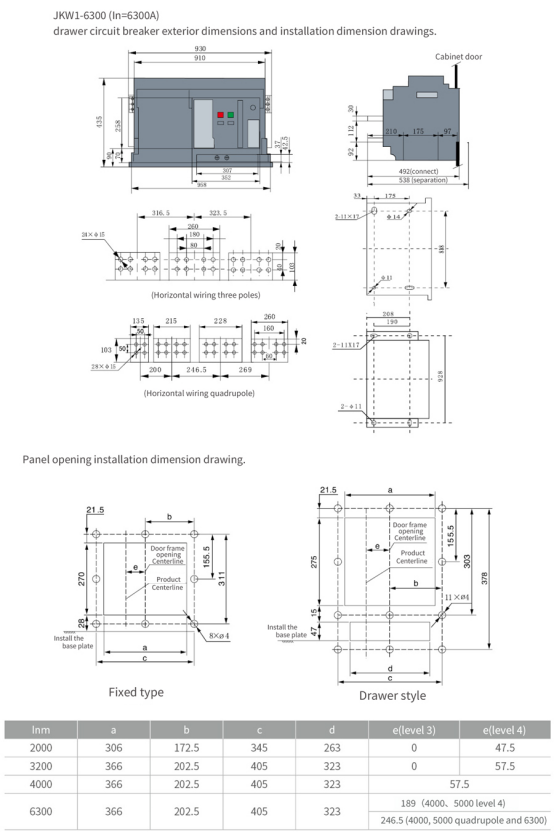

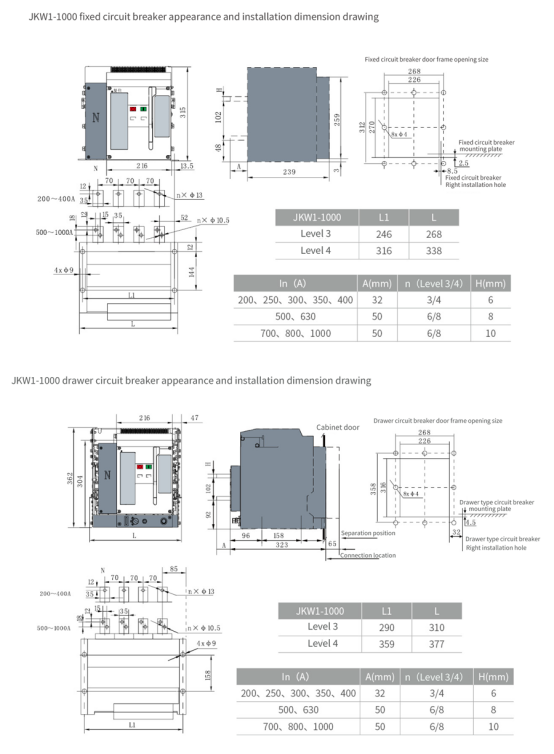

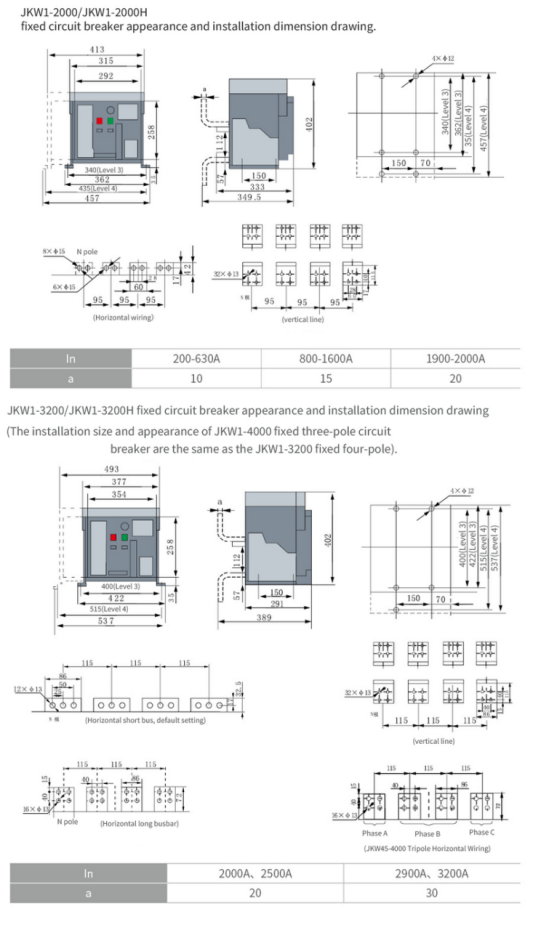

Installation and dimensions of circuit breakers:
