YB-12/0.315~0.69(PV) dedicated photovoltaic box transformer
Short Description:
■Product OverviewWidely used in a series of energy generation systems such as centralized, string, and distributed new energy.■Model meaning■Function and FeaturesHigh voltage switchgear, transformers, and low-voltage switchgear are integrated in one, with strong completeness;Complete high and low vo …
Product details
■Product Overview
Widely used in a series of energy generation systems such as centralized, string, and distributed new energy.

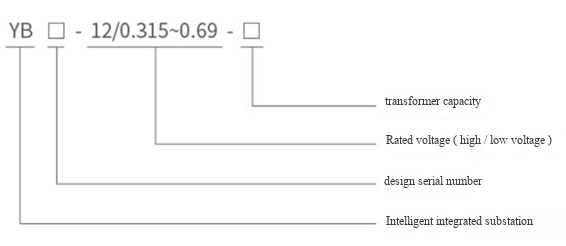

■Model meaning
■Function and Features
High voltage switchgear, transformers, and low-voltage switchgear are integrated in one, with strong completeness;
Complete high and low voltage protection, safe and reliable operation, and simple maintenance;
Small land occupation, low investment, short production cycle, and convenient mobility;
Flexible and diverse wiring schemes;
Unique structure: The unique honeycomb structure double-layer (coated with aluminum zinc plate) shell is firm, insulated and ventilated, beautiful, and has a high level of protection. The shell materials are available in stainless steel, aluminum alloy, cold-rolled plate, and color steel plate;
Diverse styles: universal, villa, compact, and other styles;
The box transformer is equipped with an integrated measurement and control device, which realizes the reliability detection of short circuit and single-phase grounding faults, fault collection, and has the "four remote" function, making it easy to upgrade the automation of the distribution network.
■Normal operating environment
Altitude not exceeding 1000m;
Environmental temperature: -25 ℃~+40 ℃;
Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
Installation location: A place without fire, explosion hazards, conductive dust, corrosive chemical gases, and severe vibrations. If the above conditions are exceeded, users can negotiate with our company.
■Execution standards
This product meets the following standards:
GB/T17467-1998 "High voltage/low voltage prefabricated substations"
DL/T537-93 "Technical Conditions for Ordering 6-35kV Box type Substations"
