■Product Overview

The JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple functions such as metering, outgoing lines, and reactive power compensation. It has functions such as short circuit, overload, overvoltage, and leakage protection. It is small in size, beautiful in appearance, and economical and practical. It is installed on the poles of outdoor column mounted transformers and is a new ideal distribution product for urban and rural power grid renovation.

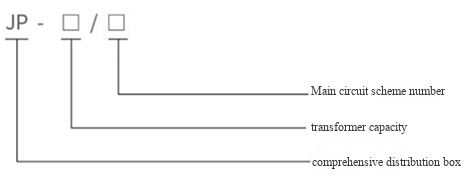

■Model meaning

■Product Features

Automatic switching of two communication inputs to ensure the normal operation of the system;

Ultra wide voltage input range, strong applicability to the power grid, and can be used in relatively harsh environments.

Adopting high-frequency switching power supply technology, modular design, N+1 hot backup, high reliability;

The rectifier module adopts electric hot plugging and online maintenance, which is convenient and fast;

The charging module adopts the latest international switch technology, with high conversion efficiency and low electromagnetic interference.

Hardware low tolerance autonomous current sharing technology, with a typical output current imbalance of ± 3% between modules.

Monitoring can use LCD screen, touch screen, color touch screen, large screen graphic display, friendly and rich interface, simple and convenient operation;

Real time monitoring enables comprehensive monitoring and control of system operation, including system settings, information queries, and the implementation of "telemetry, remote control, remote signaling, and remote adjustment" functions through backend monitoring and remote monitoring, achieving unmanned operation;

Monitoring can automatically and accurately manage battery voltage, charging and discharging current, and battery temperature compensation. It has over/under voltage, over temperature alarms, and fault alarms to ensure that the battery operates in its optimal state and extends its service life;

Equipped with manual and automatic voltage regulation functions, as well as branch insulation detection functions;

Reliable lightning protection and high insulation protection measures ensure system and personal safety;

Provide two communication interfaces, RS232 and RS485, and choose from three communication protocols: RTU, CDT, and MODBUS;

Equipped with expansion interfaces to connect to other external devices;

■working conditions

Environmental temperature: -50 ℃~+40 ℃, and the average temperature within 24 hours does not exceed+36 ℃;

Altitude: not exceeding 2000m;

Relative humidity: not exceeding 50% when the surrounding air humidity is+40 ° C;

At lower humidity levels, there can be higher relative humidity (such as 90% at+20 ℃), allowing for moderate frost formation due to temperature changes;

The inclination angle between the equipment and the vertical plane should not exceed 5 ° during installation, and the equipment should be installed in a place without severe vibration, impact, and corrosion.
