GCS low-voltage withdrawable switchgear
Short Description:
■Product OverviewThe GCS low-voltage withdrawable switchgear is suitable for power distribution systems in industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. In places with high automation levels, such as large power plants and petrochemical system …
Product details
■Product Overview

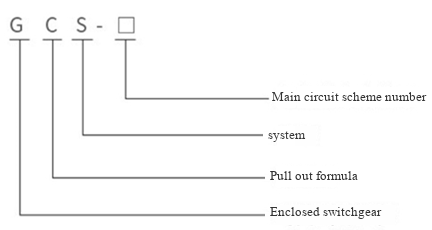

■Model Meaning
■Operating Conditions
Ambient air temperature not higher than +40°C, not lower than -5°C, and the average temperature within 24 hours not higher than +35°C. If exceeded, derating operation is required according to the actual situation;
Indoor use, the altitude of the installation site shall not exceed 2000m;
Relative humidity of ambient air does not exceed 50% at the highest temperature of +40°C. At lower temperatures, higher relative humidity is allowed, such as 90% at +20°C. Consideration should be given to the possible occasional formation of condensation due to temperature changes;
The inclination of the device installation to the vertical plane does not exceed 5°, and the entire group of cabinets is relatively flat (complying with GBJ232-82 standard);
The device should be installed in places without severe vibration and impact, and where electrical components are not subject to corrosive damage;
Special requirements from users can be resolved through consultation with the manufacturer.
■Main Technical Parameters
See Table 1 for basic technical parameters
| No. | Name | Parameter |
|---|---|---|
| 1 | Rated Voltage of Main Circuit (V) | AC 400/660 |
| 2 | Rated Voltage of Auxiliary Circuit | AC 220, 380(400), DC 110, 220 |
| 3 | Rated Frequency (Hz) | 50(60) |
| 4 | Rated Insulation Voltage (V) | 660 |
| 5 | Rated Current (A) | |
| Vertical Busbar (MCC) 1000 | ||
| 6 | Rated Short-time Withstand Current of Busbar (kA/1s) | 50, 80 |
| 7 | Rated Peak Withstand Current of Busbar (kA/0.1s) | 105, 176 |
| 8 | Power Frequency Test Voltage (V/1min) | Main Circuit 2500 |
| Auxiliary Circuit 2000 | ||
| 9 | Busbar | 3-phase 4-wire system A,B,C,PEN |
| 3-phase 5-wire system A,B,C,PE,N | ||
| 10 | Protection Grade | IP30, IP40 |
