GCS type low-voltage withdrawable switchgear,
Short Description:
USES：GCS type low-voltage withdrawable switchgear is suitable for distribution systems in industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. In places with high automation levels such as large power plants and petrochemical systems that require com …
Product details
USES：
GCS type low-voltage withdrawable switchgear is suitable for distribution systems in industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. In places with high automation levels such as large power plants and petrochemical systems that require computer interfaces, this low-voltage complete distribution device is used for power distribution, motor centralized control, and reactive power compensation in power generation and supply systems with three-phase AC frequency of 50 (60) Hz, rated operating voltage of 400V, 660V, and rated current of 5000A or below.
The design of the device complies with the following standards: IEC439-1 "Low voltage switchgear and control equipment" GB7251 "Low voltage switchgear".

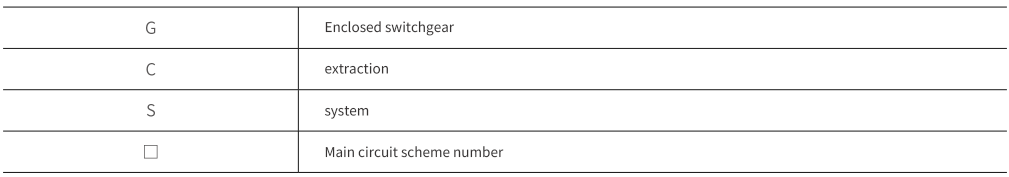

PRODUCT NUMBER：
NORMAL CONDITION：
The ambient air temperature should not exceed+40 ℃ and should not be lower than -5 ℃. The average temperature within 24 hours shall not exceed+35 ℃.
Indoor installation and use, the altitude of the usage location shall not exceed 2000m.
The relative humidity of the surrounding air should not exceed 50% at a maximum temperature of+40 ℃, and a higher relative humidity is allowed at lower temperatures. (For example, 90% at+20 ℃) should be taken into account due to
Temperature changes may occasionally cause condensation effects.
During equipment installation, the inclination with respect to the vertical plane should not exceed 5 °.
The equipment should be installed in a place without severe vibration and impact, as well as in a place where electrical components are not susceptible to corrosion.
When users have special requirements, negotiate with the manufacturer to resolve them.

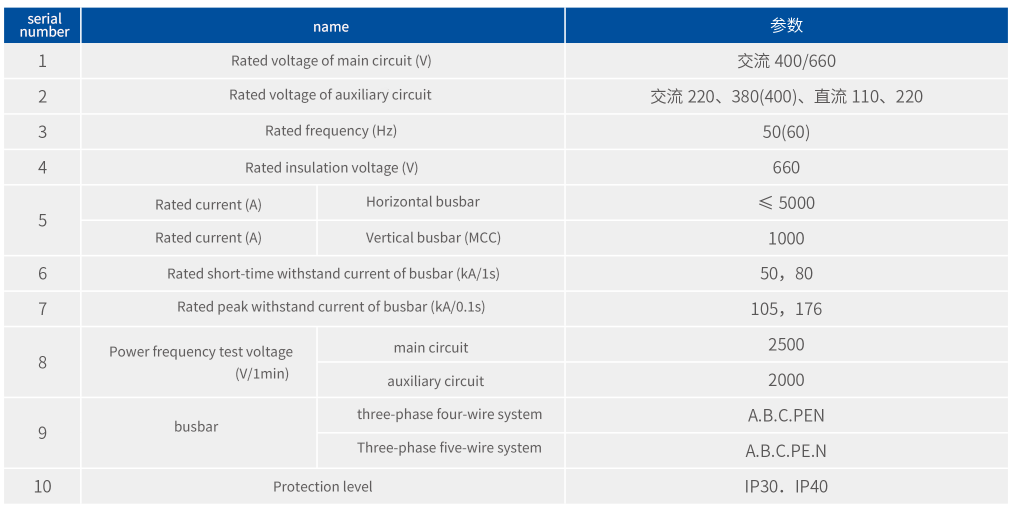

MAIN TECHNICAL PARAMETERS：
