GGD distribution cabinet
Short Description:
GGD distribution cabinets are suitable for AC 50Hz, rated working voltage 380V, and rated working current 5000A distribution systems for power plants, substations, industrial and mining enterprises and other power users. They are used for power conversion, distribution, and control of power, lighting, and distribution equipment.
Product details
PRODUCT DESCRIPTION：
GGD distribution cabinets are suitable for AC 50Hz, rated working voltage 380V, and rated working current 5000A distribution systems for power plants, substations, industrial and mining enterprises and other power users. They are used for power conversion, distribution, and control of power, lighting, and distribution equipment.
The product has the characteristics of high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, strong practicality, novel structure, and high protection level. Can be used as a low-voltage complete set of switches
Equipment updates and product usage.
The GGD distribution cabinet complies with standards such as IEC439 "Low Voltage Switchgear and Control Equipment" and GB7251 "Low Voltage Switchgear".

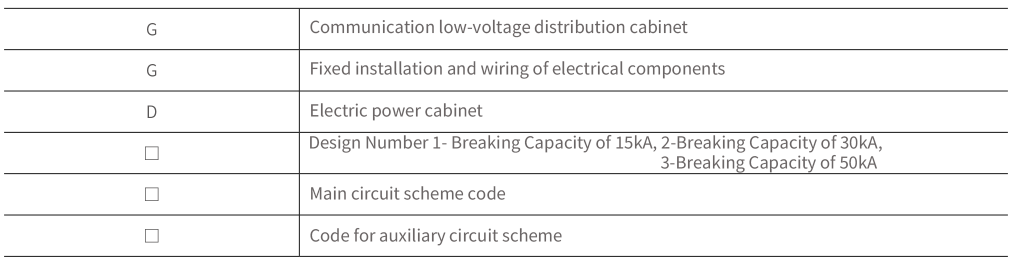

PRODUCT NUMBER：
NORMAL CONDITION:
The ambient air temperature should not exceed+40 ℃ and should not be lower than -5 ℃. The average temperature within 24 hours shall not exceed+35 ℃.
Indoor installation and use, the altitude of the usage location shall not exceed 2000m.
The relative humidity of the surrounding air should not exceed 50% at a maximum temperature of+40 ℃, and a higher relative humidity is allowed at lower temperatures. (For example, 90% at+20 ℃) should be taken into account due to
Temperature changes may occasionally cause condensation effects.
During equipment installation, the inclination with respect to the vertical plane should not exceed 5 °.
The equipment should be installed in a place without severe vibration and impact, as well as in a place where electrical components are not susceptible to corrosion.
When users have special requirements, negotiate with the manufacturer to resolve them.
