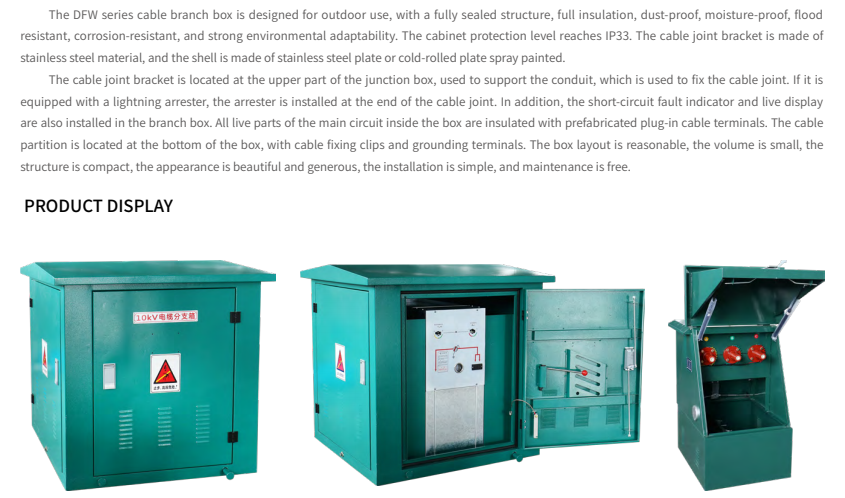

DFW European style cable branch box
Short Description:
PRODUCT OVERVIEW：The DFW series high-voltage cable distribution box is widely used for node connections in 35kV, 25kV, and 10kV cable systems. It is the mainelectrical equipment for collecting and distributing cables after they exit the switchgear. The cable joints of the distribution box are insula …
Product details
PRODUCT OVERVIEW：
The DFW series high-voltage cable distribution box is widely used for node connections in 35kV, 25kV, and 10kV cable systems. It is the main
electrical equipment for collecting and distributing cables after they exit the switchgear. The cable joints of the distribution box are insulated with
high-grade imported rubber tightly wrapped insulation, without exposed live parts; Switches with switch distribution boxes are all SF6 insulated load
switches.
The DFW junction box is designed for outdoor maintenance free operation, ensuring safety and reliability. Its protection level reaches IP33, and
the underground junction can withstand flooding. This product is widely used in urban industrial communities, residential areas, commercial centers,
mining areas, large enterprises such as steel, automobiles, petroleum, chemical, cement, and other occasions for power distribution networks. It is
particularly suitable for urban power grid renovation projects, which can greatly save electrical equipment and cable investment and improve power
supply reliability.

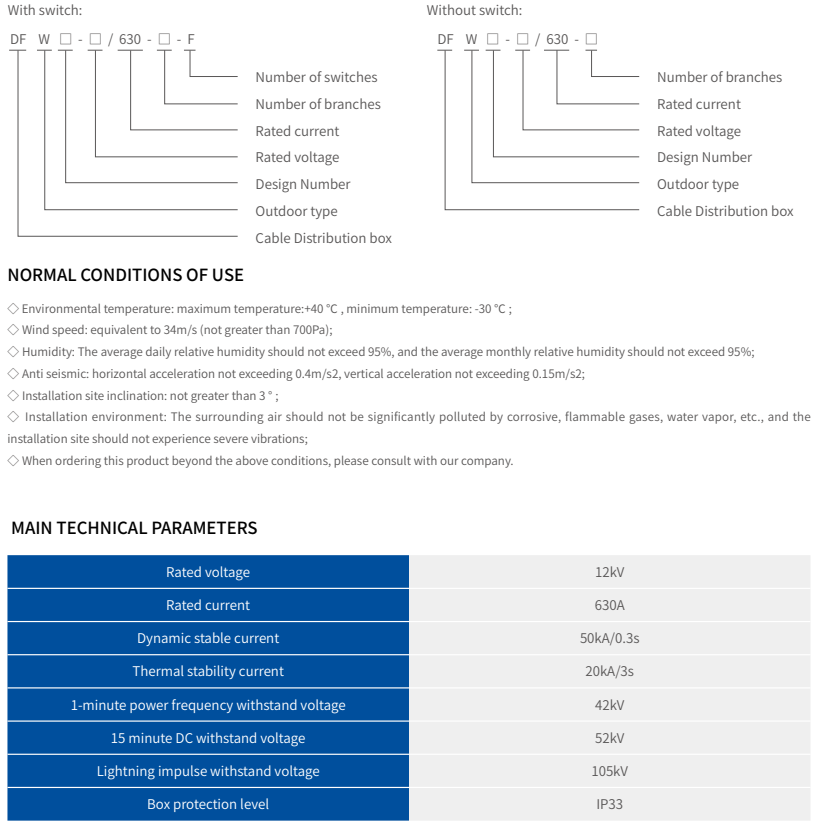

MODEL MEANING：
