XGN15-40.5 indoor AC high-voltage metal enclosed ring network switchgear
Short Description:
XGN15-40.5 indoor AC high-voltage metal enclosed ring network switchgear is a new generation of switchgear consisting of sulfur
hexafluoride load switches as switches. Metal enclosed switchgear suitable for distribution automation, compact and expandable, with features such
as high grade, miniaturization, comprehensive parameters, low price, and minimal maintenance
Product details
PRODUCT DESCRIPTION：
The XGN15-40.5 indoor AC high-voltage metal enclosed ring network switchgear is a new generation of switchgear consisting of sulfur
hexafluoride load switches as switches. Metal enclosed switchgear suitable for distribution automation, compact and expandable, with features such
as high grade, miniaturization, comprehensive parameters, low price, and minimal maintenance.
This product has a "one in one, one in one grounding" three station arc extinguishing chamber, equipped with "five prevention" functions
(preventing the main switch from being opened and closed with load; preventing accidental entry into the live compartment; preventing the main
switch from being opened and closed by mistake; preventing the live grounding wire from being hung; preventing the grounding switch from
transmitting power at the grounding position), reliable interlocking, high insulation strength of the fracture surface, large creepage design, protection
of the output end with a voltage equalizing cover, special dynamic sealing and fixed sealing design, coupled with advanced technical performance and
lightweight and flexible assembly scheme, can fully meet the constantly changing requirements of the market. It is a new generation of high-voltage
switchgear equipment for urban power grids.

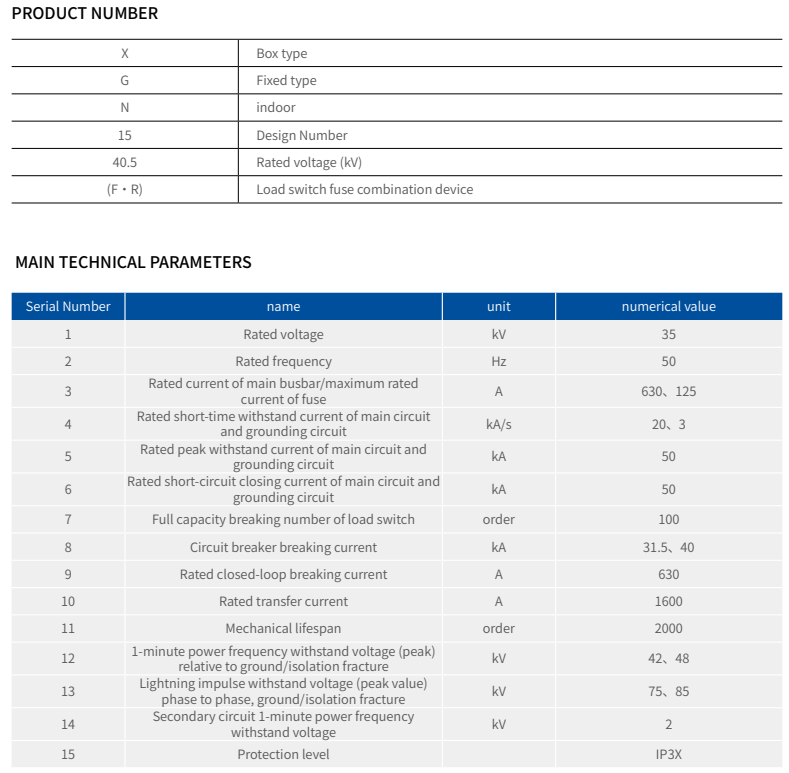

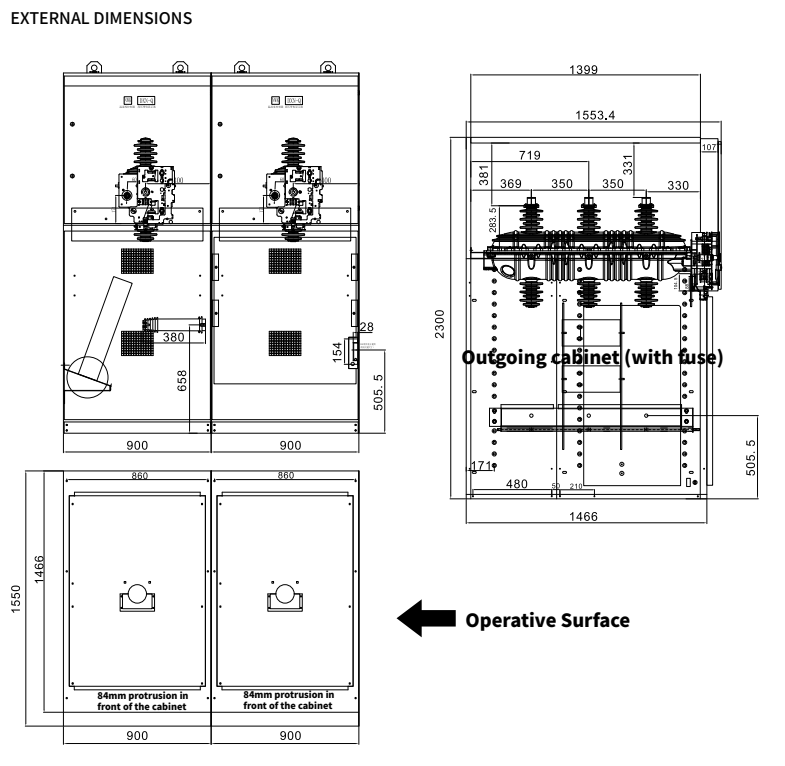

OPERATE:
For switch equipment with load distribution switches, a dedicated operating handle is used to operate the switch equipment on the front. The
operating mechanism has two operating holes on the front, with the upper part being the grounding switch operating hole and the lower part being
the load switch operating hole. When operating, rotating the handle clockwise is the direction for closing the switch, and rotating counterclockwise
is the direction for opening the switch. Electric opening and closing devices can also be installed for remote control operation. (Note: Sometimes the
load switch does not come with a grounding switch, and the grounding switch operation hole is used as a cabinet door unlock).
For the switchgear of the combined electrical appliances, the operation sequence is the same as the above except for the manual disconnection
button used for load switch opening operation. The lower grounding switch installed separately in the combination electrical cabinet is connected
to the upper grounding switch through a connecting rod for simultaneous opening and closing. Release the residual small current on the fuse holder
when closing to improve the safety of replacing the circuit breaker.
