PRODUCT FEATURES

GJS6-24 SF6 gas insulated metal common box enclosed switchgear can be composed of modules including load switch unit, load switch fuse

combination unit, vacuum circuit breaker unit, and busbar incoming unit. Adopting a series of excellent technologies and materials, it has excellent

electrical and mechanical properties, is less affected by the environment and climate, has a small size, is easy to install, is easy to operate, does

not require maintenance, and has flexible combination methods. Clear and intuitive design ensures simple and direct operation. The feeder wiring

capacity is large. Suitable for various wiring systems.

PRODUCT FEATURES

Operational safety:

We can provide users with special security protection through the following security measures:

Integrated three station load switch

The circuit breaker adopts a load switch instead of an isolation switch, which is safer and more reliable. The fully enclosed design on the primary side

provides protection against accidental contact and meets the five prevention requirements. The mechanical interlocking live display can provide live

indication for incoming and outgoing lines. The operation is reliable. The fully enclosed design seals all 10kV switches and busbars in a 3mm stainless

steel welded gas box; Equipped with silicone rubber cable plugs, the cable head is fully insulated and sealed, so as not to be affected by external

environmental factors such as dust, moisture, and small animals. The spring energy storage operating mechanism can be manually or electrically

operated to simulate the wiring diagram and provide switch position indication. The cabinet is made of galvanized sheet, with surface electrostatic

spraying to enhance corrosion resistance. The pressure gauge monitors the safe pressure range of SF6 gas inside the box.

Economy:

Maintenance free

Highly reliable

The service life can reach 20 years

Flexible plan:

Multiple entry methods, capable of achieving left, right, up, or forward lines

Multiple combination methods can be used, and any combination between units can be achieved. Insulated busbars can be used to achieve front and

rear cabinet connection or left and right cabinet connection

Flexible design scheme

Widely used:

The feeder line has a large capacity and occupies a small area, making it suitable for various application needs.

DESIGN DESCRIPTION：

The GJS6-24 fully enclosed and insulated inflatable ring network switchgear is installed on a galvanized sheet frame, and the switch unit is located

inside the GJS6-24 gas box, which is made of corrosion-resistant and non-magnetic 3mm thick stainless steel plate. The GJS6-24 air box is a "sealed

pressure system" that can operate for 20 years under normal working conditions.

The pressure of GJS6-24 gas during normal operation is 0.015-0.04MPa. The gas box is equipped with a pressure release device, which ensures that gas

can be released from the bottom or rear when the pressure is too high.

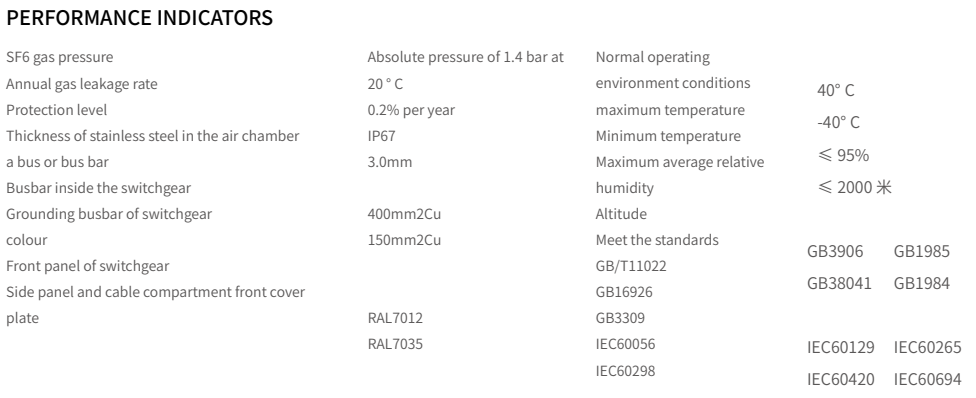

COMBINATION UNIT SCHEME：

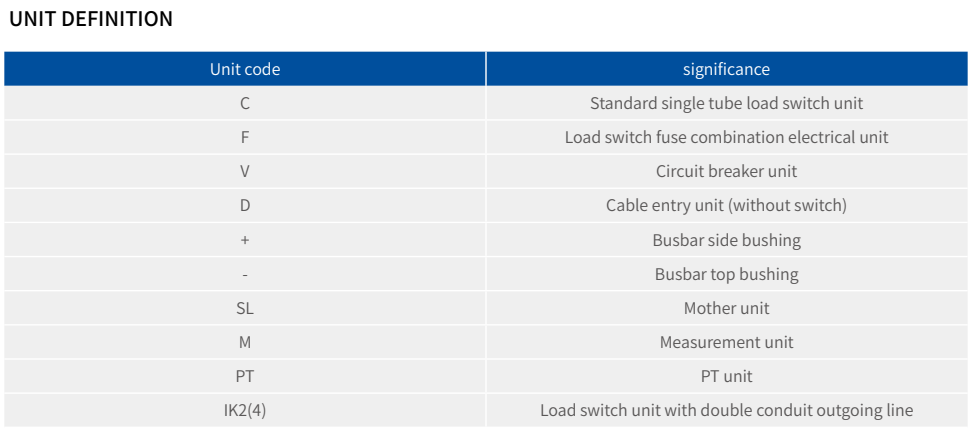

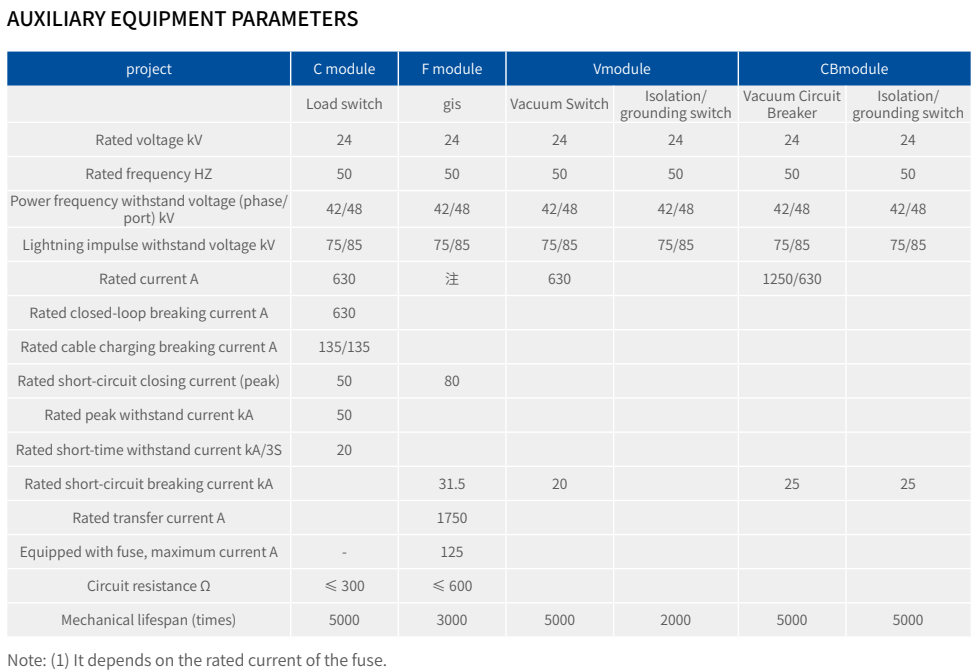

The configuration of each individual model switch unit in the combination scheme of GJS6-24 switch series can be found in the standard

configuration and optional configuration in the basic unit scheme. Each common box combination is equipped with a density meter and an operating

handle. (Note: Combination gas box+mechanism scheme can be provided separately)

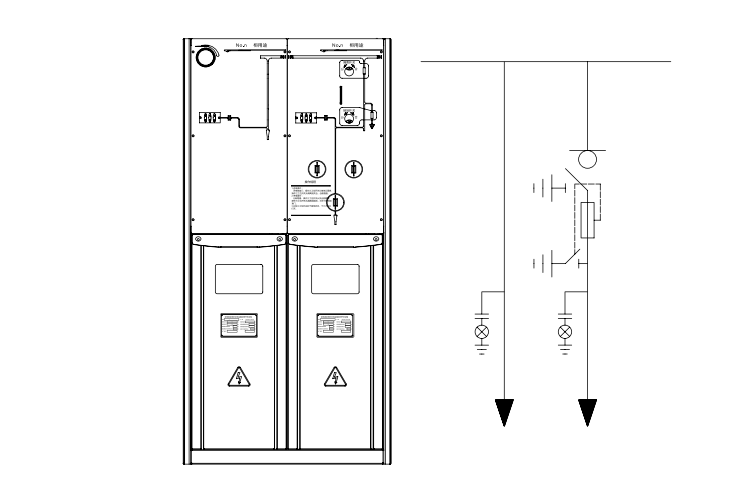

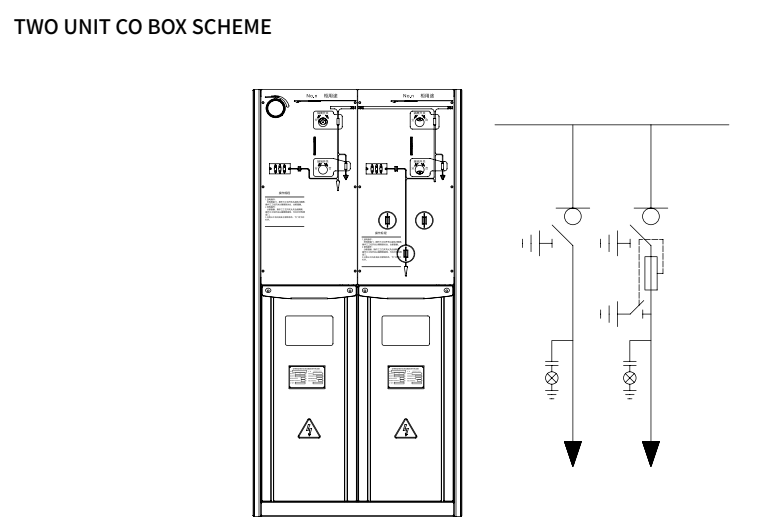

Explanation: The following provides some examples of combination unit schemes. GJS6-24 has great flexibility and can be combined into various

classical and non classical circuit schemes to meet the needs of different power consumption scenarios
