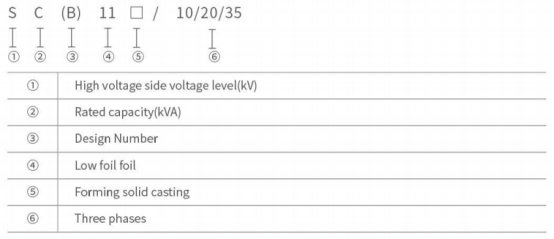

SC(B)10/20/35kVEpoxy resin cast dry type transformer
Short Description:
This product is widely used in areas where it is particularly suitable for use in locations where fireprotection is high, such as mines, oil fields, subways, power plants, schools, hospitals, commercialcenters, high-rise buildings and all Within the configuration system.
Product details
Product overview:
This product is widely used in areas where it is particularly suitable for use in locations where fireprotection is high, such as mines, oil fields, subways, power plants, schools, hospitals, commercialcenters, high-rise buildings and all Within the configuration system.
Features of Products：
Structural features：
The core is made of high-quality grain-oriented cold-rolled silicon steel sheet, 45.oblique step intothe seam, the core with a special square tubepull plate structure, the core column with insulating tapebanding, iron core surface with special resin coating to moisture and rust, effectively reducing the no-
loadloss, no-load current and core noise.Safe, flame retardant, non-polluting, can be installed directly in the load center.Maintenance-free, easy to install, low overall operating costs.Moisture-proof performance, can be 100% humidity normal operation, after the outage can be putinto operation without pre-drying.
Low loss, low partial discharge, low noise, strong heat dissipation, equipped with perfecttemperature protection control system, to provide reliable protection for the safe operation of thetransformer.
High reliability. According to the operation of the product has been put into operation research.
product reliability index has reached the international advanced level.Foil coilLow-voltage winding with the entire copper foil, together with the F-class turn insulation in adedicated
