GCK low-voltage withdrawable switchgear
Short Description:
GCK low-voltage withdrawable switchgear consists of two parts: the power distribution center (PC) cabinet and the motor control center (MCC). It is suitable for power users such as power plants, substations, and industrial and mining enterprises as an AC 50Hz, maximum working voltage up to 660V, and maximum working current up to 3150A distribution system. It is used for power distribution, motor control, and lighting distribution equipment to convert and distribute electrical energy.
Product details
Product overview:
GCK low-voltage withdrawable switchgear consists of two parts: the power distribution center (PC) cabinet and the motor control center (MCC). It is suitable for power users such as power plants, substations, and industrial and mining enterprises as an AC 50Hz, maximum working voltage up to 660V, and maximum working current up to 3150A distribution system. It is used for power distribution, motor control, and lighting distribution equipment to convert and distribute electrical energy.

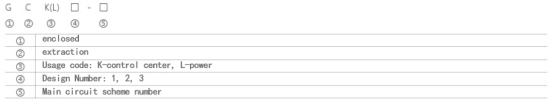

Model and meaning:
Characteristic:
This series of products has high breaking capacity, good dynamic and thermal stability, advanced and reasonable structure, practical electrical solutions, and series characteristics. Strong universality, various scheme units can be combined arbitrarily, one cabinet can accommodate more circuits, saving floor space, beautiful appearance, high protection level, safe and reliable, easy maintenance and other advantages.
This product complies with the EC439NEMAICS 2-322 standard, as well as the national standard GB7251-2005 "Low voltage switchgear" and the professional standard ZBK 36001 "Low voltage withdrawable switchgear".
Usage conditions:
□ Altitude: not exceeding 2000m;
□ Environmental temperature: The temperature should not exceed+40 ℃, and the average temperature within 24 hours should not exceed+35 ℃. The ambient air temperature should not be lower than -50 ℃;
□ Atmospheric conditions: The air is clean, and the relative humidity does not exceed 50% at a temperature of+40 ℃. Higher relative humidity is allowed at lower temperatures, such as 90% at+20 ℃;
□ A place without fire, explosion hazard, serious pollution, chemical corrosion, and severe vibration;
□ Tilt no more than 5 degrees from the vertical plane;
□ This product is suitable for transportation and storage at temperatures ranging from -25 ℃ to+55 ℃, and within a short period of time (not exceeding 24 hours), it should not exceed+70 ℃;
Note: If ordering this product exceeds the above conditions, please consult with our company.

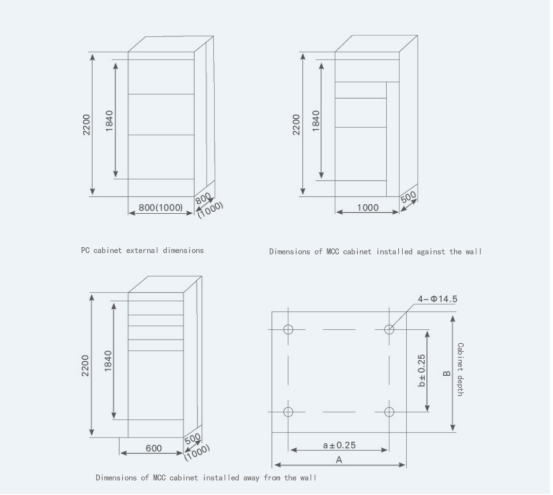

Mounting Dimension：

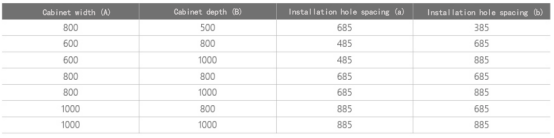

Installation dimensions and mounting holes:
