ZW7-40.5/35kVOutdoor vacuum circuit breaker
Short Description:
ZW7 -40.5/35kV series outdoor high-voltage vacuum circuit breakers (hereinafter referred to as"circuit breakers") are used in three-phase power systems with AC 50Hz and rated voltage of 40.5KV, asthe split, combined load current, overload current and short-circuit current.
Product details
Product overview:
ZW7 -40.5/35kV series outdoor high-voltage vacuum circuit breakers (hereinafter referred to as"circuit breakers") are used in three-phase power systems with AC 50Hz and rated voltage of 40.5KV, asthe split, combined load current, overload current and short-circuit current.

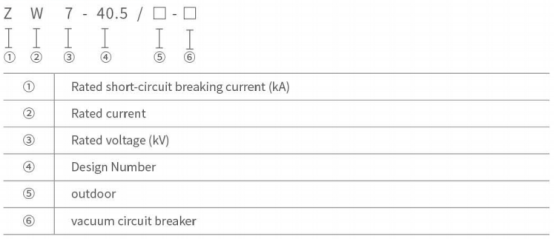

Model and meaning：
Normal use conditions：
Ambient air temperature: upper limit +409C, lower limit -30°C (general area), -40C (alpine area)Altitude: ≤1000m (if the altitude increases, the rated insulation level will increase accordingly);Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);Earthquake intensity: no more than 8 degrees;Dirty level: IV;
Maximum daily temperature difference: no more than 25°C

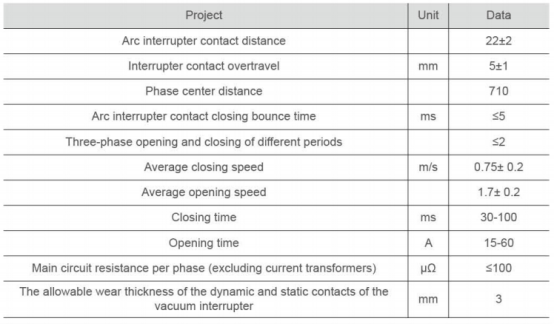

Main mechanical parameters：
