ZW32-12 Outdoor High Voltage Vacuum Circuit Breaker
Short Description:
ZW32-12 outdoor AC high-voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker) is an outdoor distribution equipment with a rated voltage of 12KV and three-phase AC 50Hz. Mainly used for breaking and closing load current, overload current, and short-circuit current in power systems. Suitable for protection and control in substations and distribution systems of industrial and mining enterprises, as well as places with frequent operation of rural power grids.
Product details
Product overview:
ZW32-12 outdoor AC high-voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker) is an outdoor distribution equipment with a rated voltage of 12KV and three-phase AC 50Hz. Mainly used for breaking and closing load current, overload current, and short-circuit current in power systems. Suitable for protection and control in substations and distribution systems of industrial and mining enterprises, as well as places with frequent operation of rural power grids.
This circuit breaker has the characteristics of small size, light weight, anti condensation, and maintenance free, and can adapt to harsh weather conditions and polluted environments.

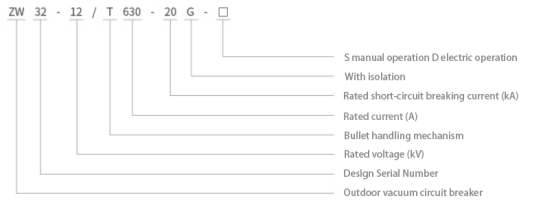

Model and meaning：

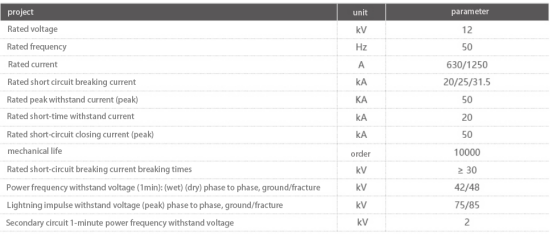

Technical parameters:
