XGW□-40.5 Outdoor switchgear
Short Description:
DFW囗-40.5 outdoor high-voltage cable branch box is used in 40.5KV three-phase AC 50Hz distribution system to connect cables for receiving and distributing electrical energy. No exposed conductive parts of the product All conductive parts are sealed with high insulation strength gel epoxy resin or silicone rubber, safe and reliable, the appearance is touchable, and there is no danger of electric shock.
Product details
Product overview:
DFW囗-40.5 outdoor high-voltage cable branch box is used in 40.5KV three-phase AC 50Hz distribution system to connect cables for receiving and distributing electrical energy. No exposed conductive parts of the product All conductive parts are sealed with high insulation strength gel epoxy resin or silicone rubber, safe and reliable, the appearance is touchable, and there is no danger of electric shock.
The cable enters through a time shaped plug and distributes electrical energy through a wall conduit. The inlet and outlet of the cable branch box can meet the needs of power cables with a cross-sectional area of 50-300mm. This product can provide multiple installation methods such as single cable inlet and outlet, double cable inlet and outlet, etc. The installation and maintenance are simple, and there is no fire hazard. It is particularly suitable for industrial and mining enterprises, high-voltage transmission, and as an energy distribution tool. It is a new type of power distribution equipment suitable for cable transmission and distribution.

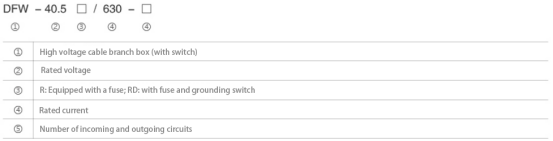

Product Model Description:
Conditions of Use：
□Environmental temperature: -10 ℃~+45 ℃, maximum daily temperature difference of 30 ℃;
□Wind speed: maximum 35m/s;
□Sunshine: 0.1W/cm²，0.5m/s;
□Relative humidity: Daily average maximum is 95%, monthly average maximum is 90% (25 ℃);
□Pollution type and level: Level IV;
□Ice thickness : 0~30mm;
Note: If ordering this product exceeds the above conditions, please consult with our company
