DFW-12 cable branch box with switch
Short Description:
Functional Features：◇Adopting prefabricated live touchable silicone rubber cable heads, fully sealed, fully insulated, maintenance free, and reliable to ensure personal safety◇Compact structure, compact and beautiful appearance, stainless steel double-layer box, with a service life of over 20 years◇ …
Product details
Functional Features：
◇Adopting prefabricated live touchable silicone rubber cable heads, fully sealed, fully insulated, maintenance free, and reliable to ensure personal safety
◇Compact structure, compact and beautiful appearance, stainless steel double-layer box, with a service life of over 20 years
◇Realize regional power outage maintenance and reduce the scope of power outages without affecting the operation of the main network
◇Can be equipped with one or more SF6 load switches, with flexible and diverse wiring methods. The branch output can reach up to 8 circuits
◇Optional lightning arresters, short-circuit fault indicators, current limiting fuses, etc. are available to meet various user requirements.

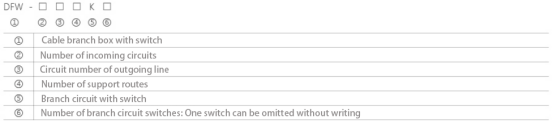

Product Model Description:

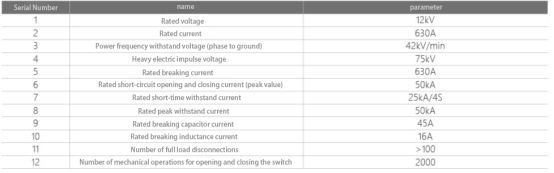

Technical Parameter：

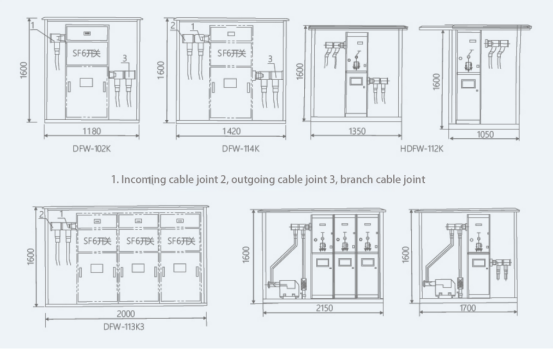

Outline schematic diagram：

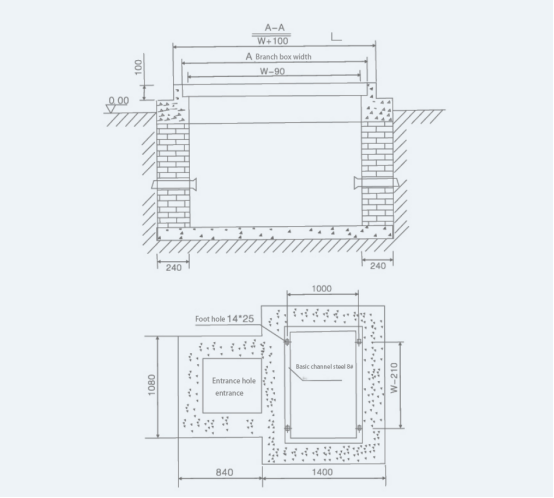

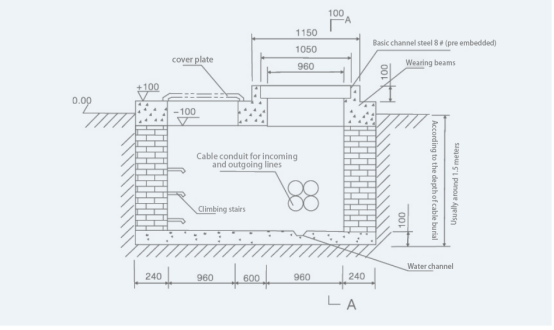

Basic structure diagram：
