DFW-12/24 European style cable branch box without switch
Short Description:
DFW-12/24 European style cable branch box without switch is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features are bidirectional opening of doors, use of docking sleeves as connecting busbars, and significant advantages such as small length, clear cable arrangement, and no need for large-span crossing of three cables. The cable connectors used comply with DIN476 36 standard. Generally, bolt fixed cable joints with a rated current of 630A are used.
Product details
product overview:
DFW-12/24 European style cable branch box without switch is a cable engineering equipment widely used in power distribution network systems in recent years. Its main features are bidirectional opening of doors, use of docking sleeves as connecting busbars, and significant advantages such as small length, clear cable arrangement, and no need for large-span crossing of three cables. The cable connectors used comply with DIN476 36 standard. Generally, bolt fixed cable joints with a rated current of 630A are used.

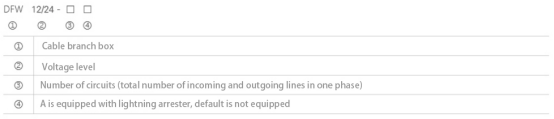

Product Model Description：
Usage conditions:
◆Environmental temperature: maximum temperature+40 ℃, minimum temperature -30 ℃,
◆Wind speed: equivalent to 34m/s (not greater than 700Pa);
◆Relative humidity: The average daily relative humidity should not exceed 95%; The average monthly relative humidity is not greater than 95%:
◆Seismic resistance: horizontal acceleration not exceeding 0.4m/s²， Is the vertical acceleration not greater than 0.15m/s²，
◆Installation site inclination: not greater than 3 °
◆Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation site should not experience severe vibrations.
Note: If ordering this product exceeds the above conditions, please consult with our company.

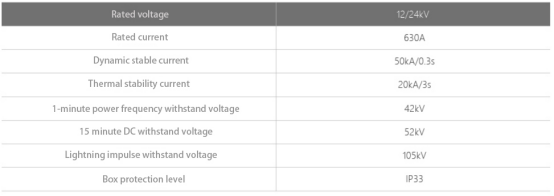

Technical Parameter：
