KYN61-40.5 Armored Removable AC Metal Enclosed Switchgear
Short Description:
KYN61-40.5 Armored Removable AC Metal Enclosed Switchgear (hereinafter referred to as switchgear) is an indoor complete set of power distribution equipment with three-phase AC current of 50Hz and rated voltage of 40.5kV.
Product details
product overview:
KYN61-40.5 Armored Removable AC Metal Enclosed Switchgear (hereinafter referred to as switchgear) is an indoor complete set of power distribution equipment with three-phase AC current of 50Hz and rated voltage of 40.5kV. As a power plant, substation, and industrial and mining enterprise that receives and distributes electrical energy, it plays a role in controlling, protecting, and monitoring circuits, and can also be used in places with frequent operations. This switchgear complies with standards such as GB3906-2006, GB/T11022-1999, and DL/T404-2007.
Main features :
◇The cabinet structure adopts an assembled type, and the circuit breaker adopts a handcart floor standing structure,
◇Equipped with a brand new composite insulation vacuum circuit breaker, and featuring good interchangeability and easy replacement;
◇The handcart frame is equipped with a screw nut propulsion mechanism, which can easily move the handcart and prevent damage to the propulsion structure due to misoperation;
◇All operations can be performed with the cabinet door closed;
◇The interlocking between the main switch, handcart, and switch cabinet door adopts a mandatory mechanical locking method to meet the "five prevention" function;
◇The cable room has ample space and can connect multiple cables
◇Quick grounding switch is used for grounding and closing short-circuit circuits
◇The protection level of the shell is IP3X, and when the handcart door is open, the protection level is IP2X;
◇The product complies with GB3906-2006, DL/T 404-2007, and adopts the international IEC298 standard as a reference.
Conditions of Use：
◆Environmental temperature: upper limit+40 ℃, and the average value measured within 24 hours does not exceed 35 ℃, lower limit -10 ℃;
◆Altitude: not exceeding 1000m;
◆Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◆Shock resistance: not exceeding 8 degrees;
◆Water vapor pressure: daily average not exceeding 2.2kPa, monthly average not exceeding 1.8kPa;
◆Places without fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration;
Note: If ordering this product exceeds the above conditions, please consult with our company.

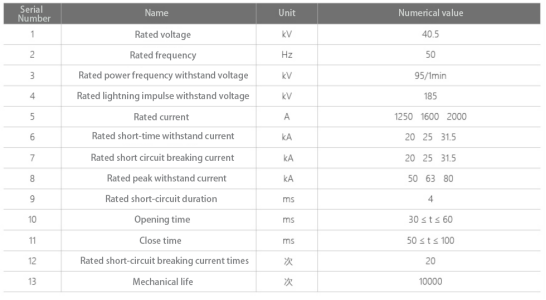

Technical Parameter：
