KYN28-12 Armored Removable AC Metal Enclosed Switchgear
Short Description:
KYN28-12 armored withdrawable AC metal enclosed switchgear is suitable for 3.6-12KV three-phase AC 50Hz power grids, as a means of receiving and distributing electrical energy, and for controlling, monitoring, and protecting circuits. Can be used for single busbar, single busbar segmented systems, or dual busbar systems. The switchgear complies with the requirements of IEC298 "
Product details
product overview:
KYN28-12 armored withdrawable AC metal enclosed switchgear is suitable for 3.6-12KV three-phase AC 50Hz power grids, as a means of receiving and distributing electrical energy, and for controlling, monitoring, and protecting circuits. Can be used for single busbar, single busbar segmented systems, or dual busbar systems. The switchgear complies with the requirements of IEC298 "AC Metal Enclosed Switchgear and Control Equipment with Rated Voltage above 1KV and Below 52kV", IEC694 "Common Terms for High Voltage Switchgear and Control Equipment", China's "GB3906 3-35kV AC Metal Enclosed Switchgear" and DIA04 "Ordering Conditions for Indoor AC High Voltage Switchgear", Germany's DIN.VDE0670 "AC Switchgear with Rated Voltage above 1KV" and other standards. And it has complete and reliable anti misoperation functions.

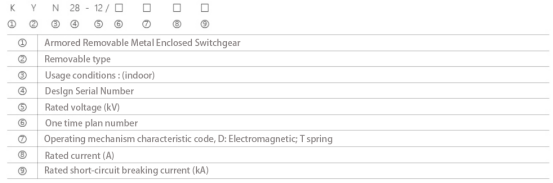

Product Model Description：
Product Features：
KYN28-12 armored movable AC metal enclosed switchgear (hereinafter referred to as the switchgear) is a new product designed and developed by our company based on absorbing advanced manufacturing technology in China. It can replace various old types of metal enclosed switchgear, such as KYN1-12, JYN2-12 and other series products. Its products have the following obvious advantages:
1. The outer shell of the product is completely assembled with bolts, which has high mechanical strength and effectively ensures the neatness and beauty of the product. The cabinet door is coated with spray paint, which has strong impact resistance and corrosion resistance. The product casing has a protection level of IP4X.
2. The switch of this product can be equipped with ABB's VD4 vacuum circuit breaker, C3 series fixed load switch, and various domestic series vacuum circuit breakers (such as VS1VH1, VK, ZN28) to replace similar foreign products.
3. Regardless of the type of circuit breaker used, the air insulation distance of the bare conductor can be guaranteed to be greater than 125mm, and the composite insulation can be greater than 60mm. All circuit breakers have unique advantages such as long life, low maintenance, and small size.
Conditions of Use：
◆Environmental temperature: upper limit+40 ℃, lower limit -10 ℃;
◆Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◆Altitude: not exceeding 1000m;
◆Shock resistance: not exceeding 8 degrees;
◆Places without fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration
Note: If ordering this product exceeds the above conditions, please consult with our company.

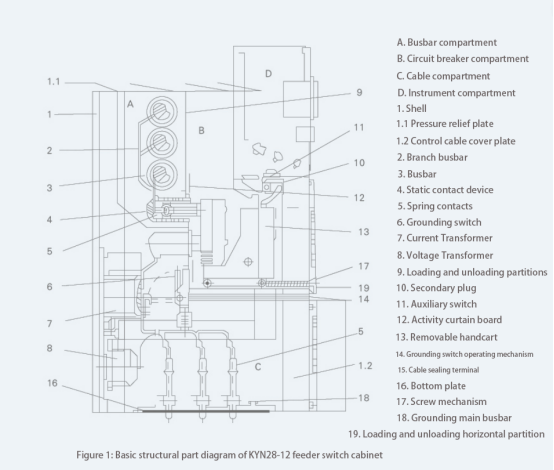

Drawing：
