XGN66-12 Box type Fixed Enclosed Switchgear
Short Description:
XGN66-12 fixed enclosed switchgear (hereinafter referred to as switchgear) is a complete set of high-voltage electrical products produced by our company, which meets the requirements of the national standard GB3906 "3-35kV
Product details
product overview:
XGN66-12 fixed enclosed switchgear (hereinafter referred to as switchgear) is a complete set of high-voltage electrical products produced by our company, which meets the requirements of the national standard GB3906 "3-35kV AC Metal Enclosed Switchgear", the Ministry of Electric Power DLT404 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear", and the international standard IEC60298 "Requirements for AC Metal Enclosed Switchgear and Control Equipment above 1KV and below 52kV".
This product has absorbed excellent foreign technology and is small in size, only 50% of the volume of a regular switchgear; Circuit breakers have high reliability and good performance; The "five prevention" interlocking mechanism has the advantages of reliability and simplicity. The switchgear is an indoor complete set of equipment with 3.6, 7.2, and 12KV three-phase AC power, 50Hz single busbar segmentation, used for receiving and distributing electrical energy. It also has functions such as controlling, protecting, and monitoring circuits, and can be used in various types of power plants, substations, industrial and mining enterprises, high-rise buildings, etc. It can also be combined with ring main units and applied in switch stations.

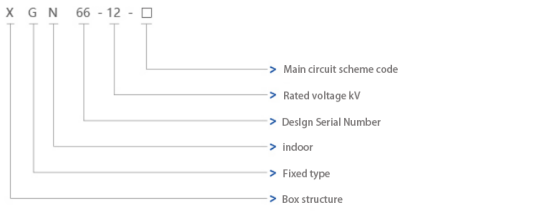

Model meaning;
Structural features:
◆The cabinet is made of high-quality angle steel welded together.
◆The circuit breaker room is located in the lower part of the cabinet, making installation, debugging, and maintenance convenient; Equipped with ZN63A (VS1-12) circuit breaker as standard, and equipped with pressure release channel to ensure personal safety.
◆By using advanced and reliable rotary isolation switches, it is possible to safely enter the circuit breaker room for maintenance when the main busbar is live.
◆The full cabinet protection level is IP2X.
◆A mandatory mechanical locking device with reliable functions, which can easily and effectively meet the "five prevention" requirements.
◆Having a reliable grounding system.
◆There is an observation window on the door, which can clearly observe the working status of the components inside the cabinet.
◆The operating mechanism adopts the JSXGN locking mechanism used in the XGN2-12 cabinet, which is simple, reliable, convenient and practical.
◆The incoming and outgoing cables are located below the front of the cabinet bottom, making it convenient for users to connect.
Normal operating environmental conditions:
☉The altitude shall not exceed 1000m.
☉Environmental temperature: -25 ℃~+40 ℃, with an average temperature not exceeding+35 ℃ ☉within 24 hours
☉The horizontal inclination shall not exceed 3 °.
☉The seismic intensity shall not exceed 8 degrees.
☉No places with severe vibration, impact, or explosion hazards.

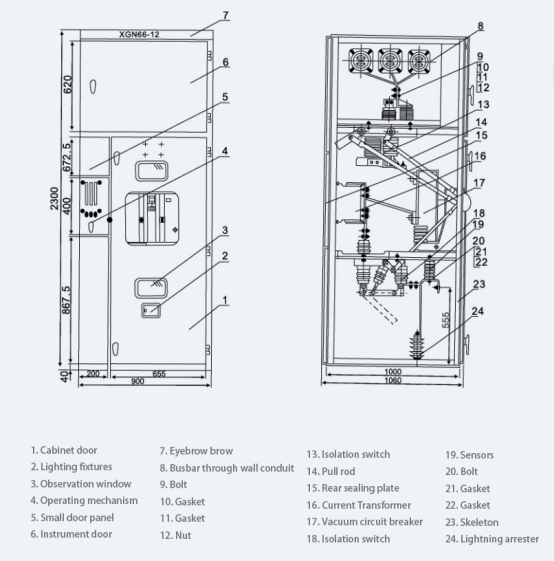

External dimensions:
