XGN15-24 box type fixed ring main unit
Short Description:
Product advantages:◇Increase the capacity of the main transformer and improve the power supply capacity of the substation.◇Improve the power transmission capacity of distribution lines and reduce the number of distribution lines.◇Increase the power supply radius of medium voltage lines.◇Improve the …
Product details
Product advantages:
◇Increase the capacity of the main transformer and improve the power supply capacity of the substation.
◇Improve the power transmission capacity of distribution lines and reduce the number of distribution lines.
◇Increase the power supply radius of medium voltage lines.
◇Improve the power supply quality of medium voltage power grid.
◇Reduce energy loss in medium voltage power grids.
◇Save non-ferrous metals and land resources.

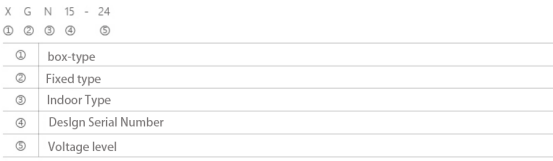

Product Model Description:
Conditions of Use:
□Altitude: ≤ 1000m;
□Environmental temperature: maximum environmental temperature+40 ℃, minimum environmental temperature -35 ℃, maximum daily temperature difference of 25 ℃;
□Relative humidity: Daily average relative humidity ≤ 95%, monthly average relative humidity ≤ 90%;
□Seismic resistance: Level 8;
□Rated frequency of the system: 50Hz;
□SF6 annual leakage rate: ≤ 0.1%;
□Shell protection level: IP3X;
Note: If ordering this product exceeds the above conditions, please consult with our company.

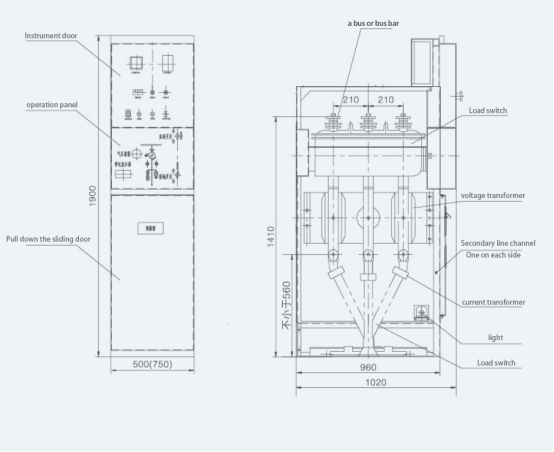

Outline dimension diagram:
