Short Description:
XGN15-12 box type fixed metal enclosed ring network switchgear (referred to as ring network cabinet) is suitable for AC 50Hz, 12KV power systems. Widely used in industrial and civilian cable ring networks and power supply terminals.
Overview:
XGN15-12 box type fixed metal enclosed ring network switchgear (referred to as ring network cabinet) is suitable for AC 50Hz, 12KV power systems. Widely used in industrial and civilian cable ring networks and power supply terminals.
Especially suitable for small secondary substations, switch stations, urban residential area power distribution, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals, sports venues, railways and other places.

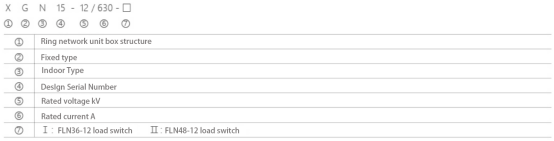

Product Model Description:

Conditions of Use;
◇Altitude: ≤ 1000m (if there are special requirements, please specify them when ordering. Currently, there are 6 groups operating at an altitude of 5200m)
◇Environmental temperature: -35 ℃+45 ℃, maximum daily average temperature difference ≤ 25 ℃;
◇Relative humidity: daily average not exceeding 95%, monthly average relative humidity not exceeding 90%;
◇Shock resistance: 8 degrees;
◇Places with severe vibrations and impacts, as well as no fire, chemical corrosion, or explosion hazards;
Note: If ordering this product exceeds the above conditions, please consult with our company.
Product Features:
□SF6 ring main unit is easy to combine and expand, with a small volume, safe and reliable;
□Using SF6 gas as insulation and arc extinguishing medium, the constant magnetic field rotary arc extinguishing method ensures that its arc extinguishing ability is not affected by the magnitude of the arc current, with good breaking performance, low overvoltage, long electrical life, and maintenance free arc extinguishing chamber;
□It can have three workstations, multiple functions, and can be equipped with miniaturized pressure gauges;
□Simple to operate, highly reliable operating mechanism and locking mechanism,
□Passed the rated breaking test of SF6 gas zero gauge pressure, with a large functional margin and a high possibility
□The grounding switch has short-circuit opening and closing capabilities that comply with national standards;
□The cabinet is made of imported aluminum coated zinc plate stamped and formed, using an assembled structure that is sturdy and resistant to deformation.
Product structure;
◇overall structure
The ring main unit is composed of busbar room, load switch (or circuit breaker room), cable room, operating machinery, interlocking mechanism and low-voltage control room, as well as measurement or metering circuits. Each compartment is divided by steel plates to avoid faults affecting adjacent rooms.
□busbar compartment
The busbar room is arranged at the top of the cabinet, where the main busbars are connected together and run through the entire row of switchgear. The busbar is arranged horizontally and can be easily expanded
product mix
□Main switch room
Load switch room: There is a load switch installed in the switch room. The shell of the load switch is made of epoxy resin casting and filled with SF6 gas as arc extinguishing and insulation medium. There are two transparent hot pressed plastic end caps at the operating shaft lead out end, through which the contact status can be observed. SF6 gas density meter or gas density with alarm contact can be installed in the lighting room according to customer requirements
Circuit breaker room: The circuit breaker room is located in the middle of the cabinet and can be equipped with specialized vacuum circuit breakers or SF6 circuit breakers according to customer needs. Its breaking capacity can meet normal switching and branch network operations, as well as breaking short-circuit currents in special situations. Vacuum circuit breakers are particularly suitable for frequent operation of network systems. The circuit breaker is equipped with a spring operated mechanism, which has a reclosing function, reliable operation, and long service life.
□Cable room:
The cable room is mainly used for cable connection, allowing single core or three core cables to be connected using the simplest unshielded cable head. At the same time, the ample space can also accommodate components such as lightning arresters, current transformers, and grounding switches. Designed according to standards, the cabinet door has observation windows and safety interlock devices, and the cable room floor is equipped with sealing covers and appropriately sized cable clamps with brackets. The front frame of the cable room floor can be removed for easy cable installation:
□Operating mechanism, interlocking mechanism, and low-voltage control room
The low-voltage chamber with interlocking also serves as a control panel. The low-voltage room is equipped with a spring operated mechanism with position indicators and mechanical interlocking devices. It can also be equipped with auxiliary contacts, trip coils, emergency trip mechanisms, capacitive live display devices, key locks, and electric operating devices. At the same time, the low-voltage room space can be used to install control circuits, recording instruments, and protective relays. The 750mm wide cabinet has two identical low-voltage rooms that can accommodate more accessories.

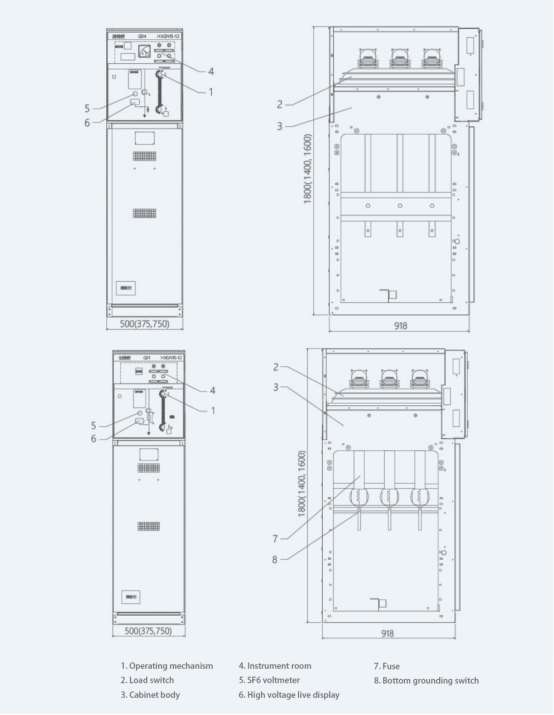

Structure diagram:
