BWG photovoltaic grid connected cabinet
Short Description:
BWG photovoltaic grid connected cabinet is an important component that connects inverters with step-up transformers or AC combiner boxes with step-up transformers. The incoming line of this photovoltaic grid connected cabinet
Product details
Overview：
BWG photovoltaic grid connected cabinet is an important component that connects inverters with step-up transformers or AC combiner boxes with step-up transformers. The incoming line of this photovoltaic grid connected cabinet adopts circuit breaker input or direct input, and the output adopts circuit breaker or load isolation switch. The busbar is connected by electroplated or purified busbar and provides secondary lightning protection. The maximum rated voltage of the system is AC690V, and the protection level is IP30 indoors and IP54 outdoors; The cables for secondary measurement and control are cables with a current greater than 2.5mm ², cables with a voltage greater than 1.5mm ², and cables with a control greater than 1.0mm ². The measuring current transformer is a current transformer of level 0.5, and the measuring transformer is a current transformer of level 0.2s. Relevant functions can also be added according to customer requirements. This product adopts professional electrical design and component selection, making the internal structure of the cabinet safe, simple, beautiful, convenient for on-site wiring and maintenance, and ensuring long-term stable operation of the equipment.

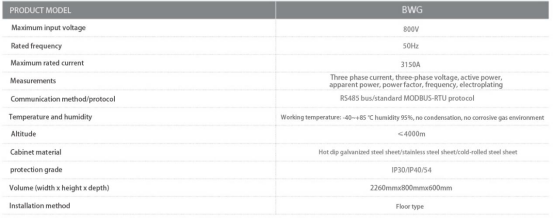

Technical Parameter：

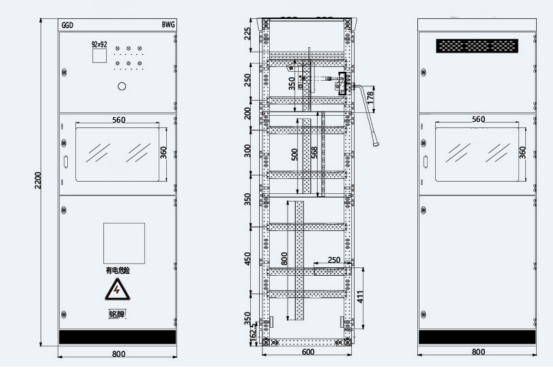

Outline dimension diagram：
